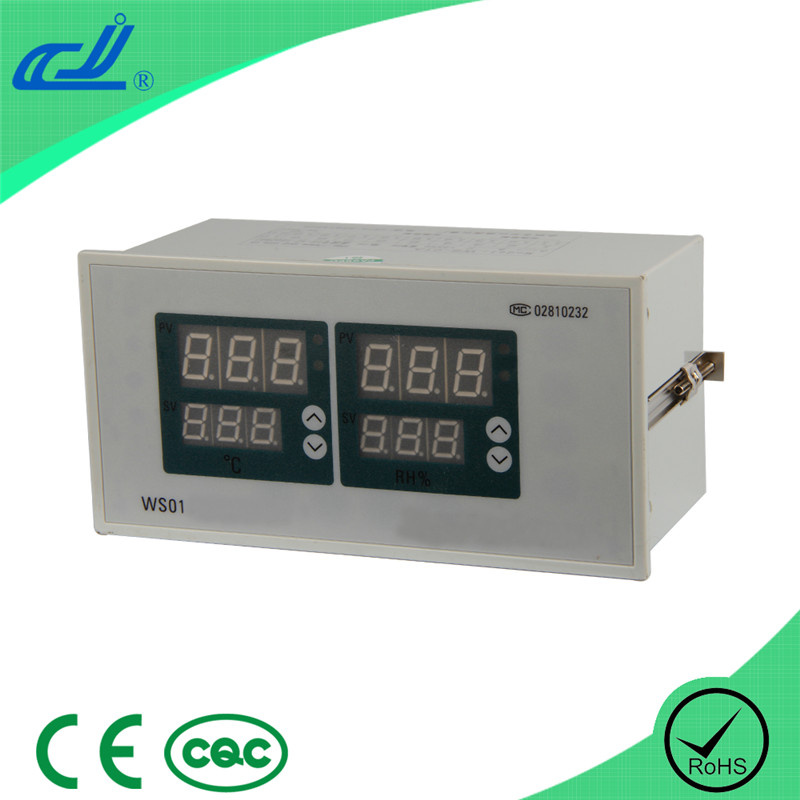

Temperature and Humidity Controller (WS-01A)

Name: Temperature and Humidity Controller (WS-01A)
Brand: all-electronics-online.com
SKU: 714171962
Availability: InStock
Rating: 4.4 (57 reviews)

Price:	US $ 51.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WS-01A

Product Description

The temperature and humidity controller
Control temperature and humidity
Size: 80*160 hole: 76*156
Temperature controller

This temperature and humidity controller which control temperature and humidity, temperature measurement, adopt CU50 sensor, humidity measurement adopt high molecule sensor, the measurement have superior specification and have advanced technique.

Main Technical Indexs
1. Size: 80× 160 hole: 76× 156
2. Measure precision: Humidity display less than 3%, the humidity control less than 3%
3. Temperature display less than 1%, the temperature control less than 1%
4. Relay output contact capacity: AC220V/ 7A
5. Range of the temperature: CU50(-19.9150° C) Range of the humidity: 0100%RH
6. Power voltage: 220V50Hz
7. Work environment: Temperature 0-50.0° C, relative humidity≤ 85%RH, without
Corrode and strong electric radiation

Interior parameter Sheet

Parameter code	Parameter meanings	Explanation	Setting range
SC1	temperature error modify	Use this to plus or minus If there is error during testing temperature.	-19.9~20
Hy2	Humidity return difference	The same as abve	0.1~50.0
Hy1	Temperature return difference	Meter's on-off control insensitive interval.if the value↓the control effect will get well,the relay output continually throb will affect its operating life.	0.1~50.0
SC2	Humidity Error modify	Use this to plus or minus If there is error during testing humidity.	-19.9~20

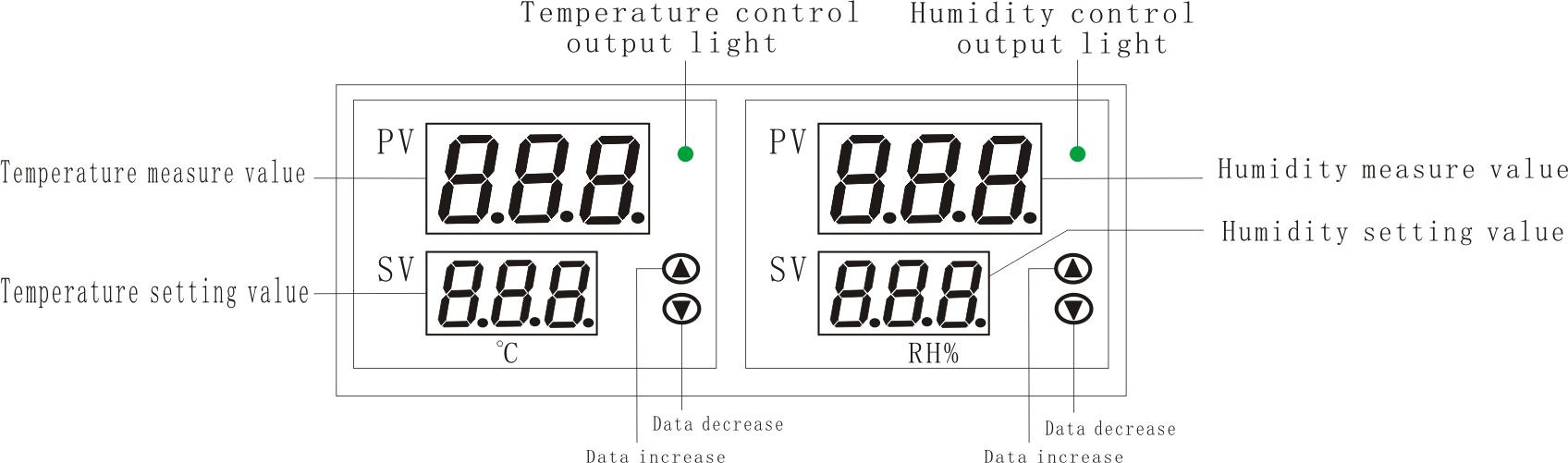

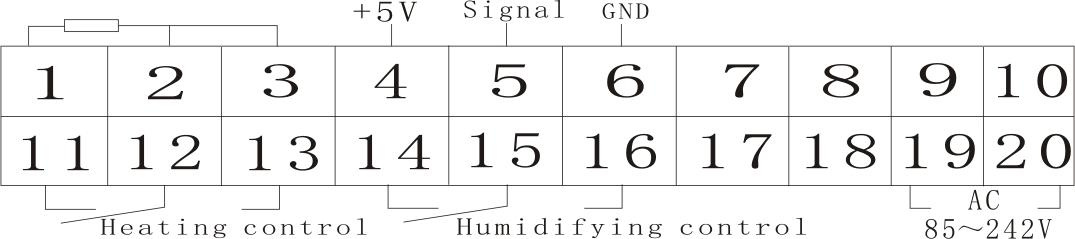

Instrument panel and connection scheme(consult)
