Temperature and Humidity Controller (XMTF-9007-8)

Name: Temperature and Humidity Controller (XMTF-9007-8)
Brand: all-electronics-online.com
SKU: 681663655
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	US $ 64.5/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTF-9007-8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

I. General introduction

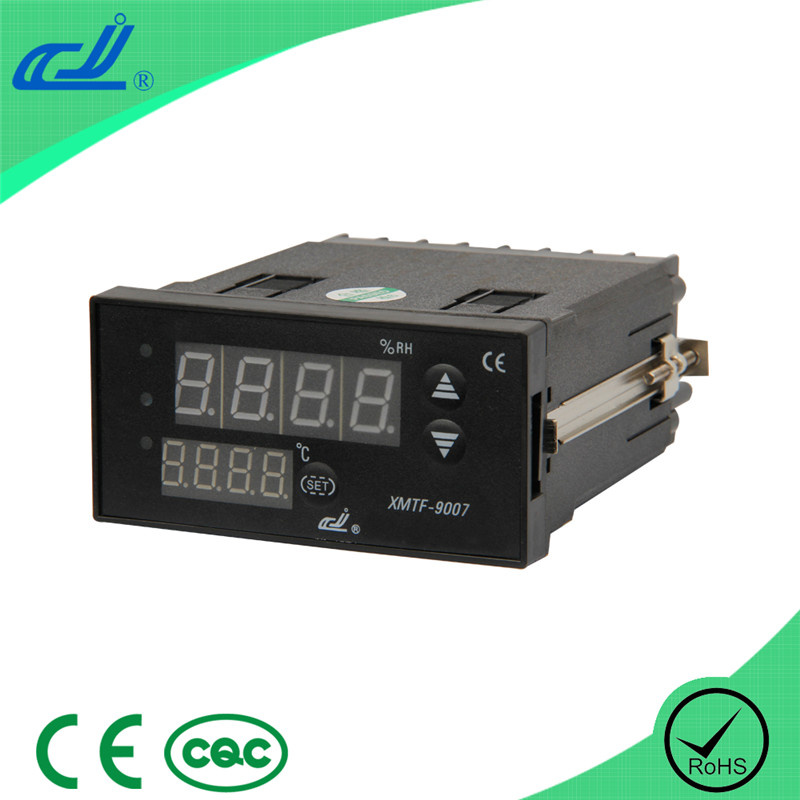

The XMT 9007-8 temperature & humidity instrument is an intelligence instrument based on the computer technique. It adopts a 2-row LED display and synchronous display the humidity and drying temperature measured value. The user can choose below functions:

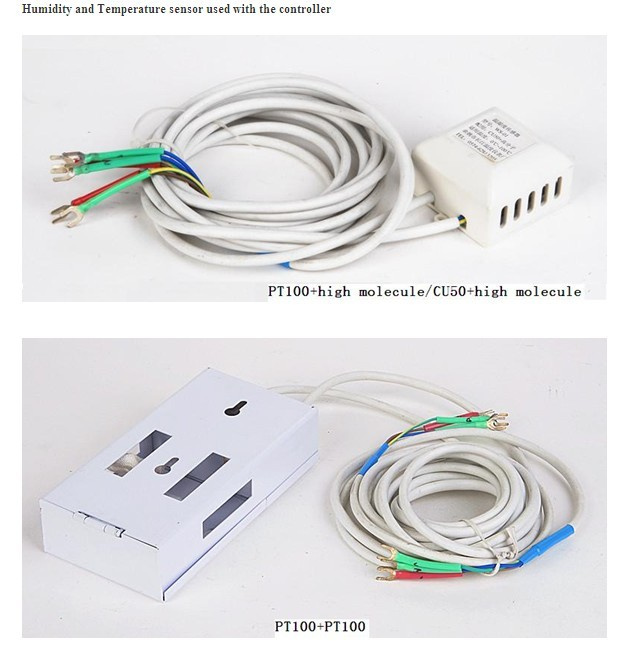

1.1 Sensor: PT100 sensor for temperature measurement, PT100 or high molecular sensor for the humidity measurement.
1.2 Control mode: PID or ON/OFF control mode for heating and humidification output, it is alternative. Cooling can set to delay output function.
1.3 Serial communication: The instrument can communicate with the computer to realize the computer on the instrument's remote control by installing the RS485 serial communication module. Using MODBUS RTU communication protocol.
1.4 Print function: The instrument installs printing module, it can regularly print the recorded temperature and humidity sampled values.

II. Main Technical Specifications
2.1 Accuracy: Temperature measurement accuracy: ± 0.5%F. S± 1B(between 25~35; 30% ~70%)
Humidity measurement accuracy: ± 1%F. S± 1B
2.2 Temperature measurement range: -50.0-150.0 Humidity valid range: 0% ~ 99% RH
2.3 Relay output contact capacity: 220VAC/5A (resistive load)
2.4 Work Power: AC85~242V 50/60Hz Power consumption less than 5W
2.5 Work environment: Temperature 0~50.0, relative humidity ≤ 85%RH, without corrode and strong electric radiation.
2.6External dimensions: 96× 48× 110, hole size: 92× 44

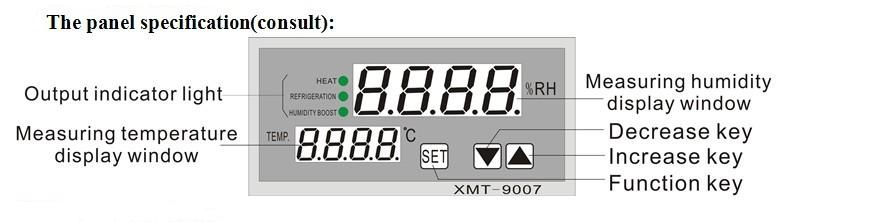

The panel specification

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )

Welcome to our factory.
