Temperature and Humidity LED Large Display

Temperature and Humidity LED Large Display
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: CJ-LDT-EP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: CE

Product Description

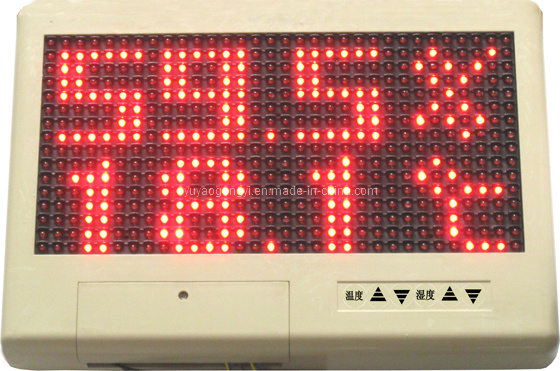

CJ-LDT-EP Temperature and Humidity Controller is designed with LED dot matrix screen display,
wide voltage power supply,highprecision temperature, humidity sensors and advanced integrated
circuits, resulting in a low power consumption and large viewing distance, so it is widely used to
meet the needs of temperature, humidity display and control.

 Technical Specifications

  1. Temperature Sensor Type:PT100;
  2. Temperature Measurement Accuracy: ±0.5%C;
  3. Temperature Display Range:-199.9C~600.0C;
  4. Temperature Setting Range:-50C~150.0C;
  5. Humidity Sensor Type:polymer sensor;
  6. Humidity Measurement Accuracy:≤3%F.S(effective range of 20%~80%RH);
  7. Humidity Display Range:0%~100% RH;
  8. Humidity Setting range:0%~100% RH;
  9. External dimension(mm):360(Width)×255(Height)×38(Depth);
  10. Installation:wall-mounted;
  11. Input Working Power:AC 85~242V,50/60Hz;
  12. Working Environment:Temperature:0~50.0C, Humidity:35%--85%RH, non-condensing.


Connection




NOCodeNameSetting RangeFunction
Description
Factory
Setting
1LOCKLock0~255LOCK=18 all the parameter can be modified;
LOCK≠18,all the parameter cannot be modified.
18
2HEATHeating Set Point-19.9~99.9
HEAT>COOL
Please refer to "4.1.Heat control"20
3COOLCooling Set PointPlease refer to "4.2.Cool control"30
4HR1Humidification
Upper Limit
0~99.9

70
5HR2Humidification
Lower Limit
60
6SC1Temperature Correction-20.0~20.0The measured value can be modified through increasing or decreasing this data.0
7SC2Humidity Correction0
8HC1Heating Hysteresis0.1~20.0

1.0
9HC2Cooling Hysteresis0.1~20.0

1.0
