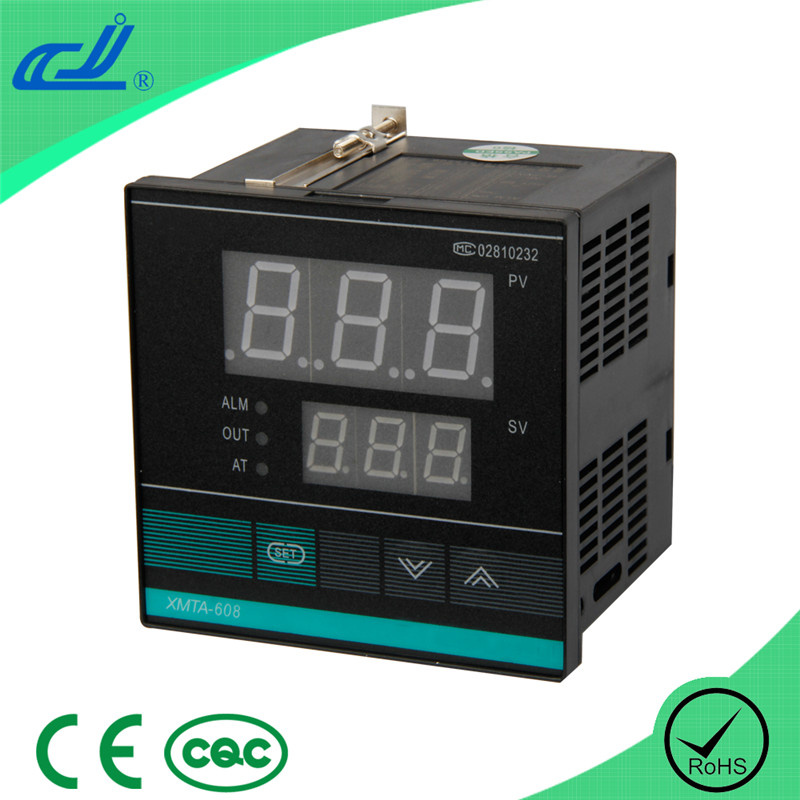

Temperature and Time Control Meter (XMTA-618T)

Prod Model:	XMTA-618T
Size:	96*96

Product Description

Survey

XMT*608 series intelligent temperature controller, is double row 3-LED display, respectively display temperature measurement value (PV) and temperature set value (SV) under normal mode; When it is time temperature control, respectively display temperature measurement value (PV) and running time count down (SV), and also provide kinds of time control method selection; The controller can input kinds of signal which are used interchangeably, it adopt ON/OFF(P=0)\PID control, allowing an easy parameter setting and convenient inputting, is widely used over temperature automatic control systems of machinery\chemical\ceramics\light industrial\metallurgy\petrifaction and heat treatment and so on.



Main technical Indexes
1.Measurement deviation: ± 0.5FS± 1, additional cold end compensating deviation± 1
2.Input(can be selected): CU50(-50~150)\PT100(-80~600)\K(-30~999)\E(-30~700)\
J(-30~900)\T(199~400)
3.Relay output (passive) contact capacity: AC250V 5A(resistance load)
Period 2~120s can be adjusted.
4.Time range: 0~999s or 0~999m(can be selected)
5.Driving solid relay signal output: Driving electric current >15mA no-load voltage>12V, period is about 2S.
6.Work power: AC85V~242V, 50Hz Power consumption<3W
7.Work environment: 0~50, relative humidity≤ 85%, without corrode and strong electric radiation.
8.Dimensions96× 96× 80 (mm) Installation hole 92× 92(mm)



Time function :
1:start timing when it reaches the temperature,and the built-in buzzer will give an alarm output after reaching the time, the controller keep on heating;
2:start timing when it reaches the temperature,and the built-in buzzer will give an alarm output after reaching the time, the controller stop heating;
3:regular temperature control(no alarm)+time relay function:start timing when the power is on, alarm relay attracting after reaching the time .

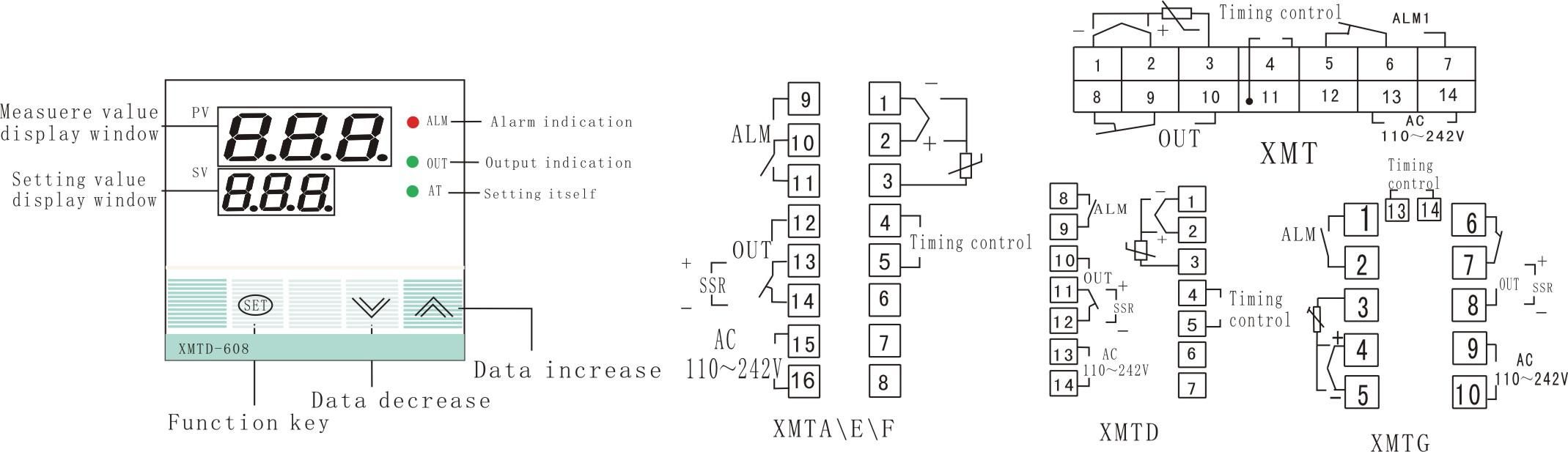

Controller panel



Flow chart
