Temperature and Time Controller with One Group Alarm (XMTF-918T)

Name: Temperature and Time Controller with One Group Alarm (XMTF-918T)
Brand: all-electronics-online.com
SKU: 714128892
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	US $ 29.2/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTF-918T

Product Description

I.Survey
XMT*-918T series intellectual ability temperature regulator series controlled by single chip, free input multi-signals of thermocouple, ON/OFF control and PID control, besides, it has time function, you can adjust time unit hour and minute or minute and second. They are widely used in the automatic control system of the temperature, chemical, ceramics, light, metal, petrochemical and heat treatment industry.

II .Main technical specification
1. Basic deviation: ± 0.5%F. S± 1
2. Cold end compensating deviation: ≤ ± 2.0
3. Sampling cycle: 0.5s
4. Time range: 1S~59.59H
5. Time precision: Class 0.005
6. Control cycle: Relay output 2~120s and can be adjusted
7. Relay output contact capacity: AC220V/5A(resistance load)
8. Power: AC85V~242V(switching supply), 50/60Hz, or the other special request.
9. Working condition: Temperature 0~50.0, relative humidity≤ 85% RH, without corrode and strong electric radiation
10: The surface dimension (mm) 96× 48× 110 Installation hole 92× 44

Time function selection:
1:start timing when it reaches the temperature,and the built-in buzzer will give an alarm output after reaching the time, the controller keep on heating;
2:start timing when it reaches the temperature,and the built-in buzzer will give an alarm output after reaching the time, the controller stop heating;
3:regular temperature control(no alarm)+time relay function:start timing when the power is on, alarm relay attracting after reaching the time .

Product code:
           XMT  -- 9 -- 8 --
(1) (2)  (3) (4) (5)
(1) Meter faceplate dimension(mm):
       Overall size          Installation hole        Overall size             Installation hole
Blank: 160 × 80 x 120 152x 76 A: 96 x 9 x 110 92 x 92
D: 72 x 72 x 110 68 x 68 E: 48 x 96 x 110 44 x 92
F: 96x 48 x 110 92 x 44 S: 80 x 160 x 120 76 x 156
G: 48 x 48 x 110 44 x 44
(2)Design serial number
(3)Alarm :"0":no set alarm
"1or2": one alarm (Optional alarm mode, please refer to the parameter "ALP")
"5": voice alarm
"3":two group alarm (Optional alarm mode, please refer to the parameter "ALP")
(4)Input signal: "8":Free exchange of the input signal
(5)Suffix:
Blank:Relay contact
  " A":Single-phase over-zero trigger adjustment
" A3":Three-phase over-zero trigger adjustment
" B": Single-phase shift-phase trigger adjustment
" B3":Three-phase shift-phase trigger adjustment
  "G":solid relay output
"C":0~10mA or 4~20mA constant electric current output
"Wt":with micro-printer output signal
"K":with RS485 or RS232 communication module interface(MODBUS RTU)
''T'': time control

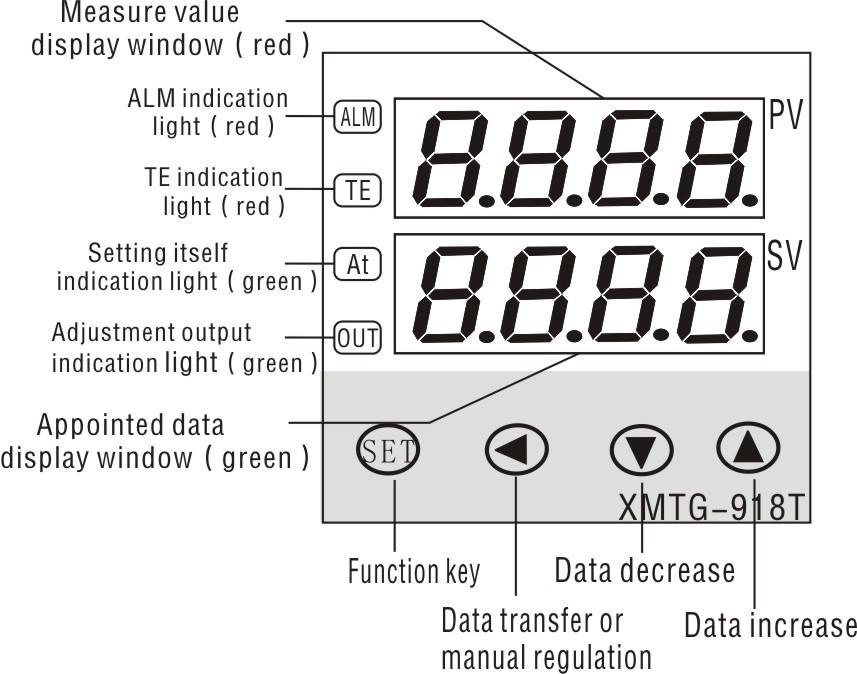

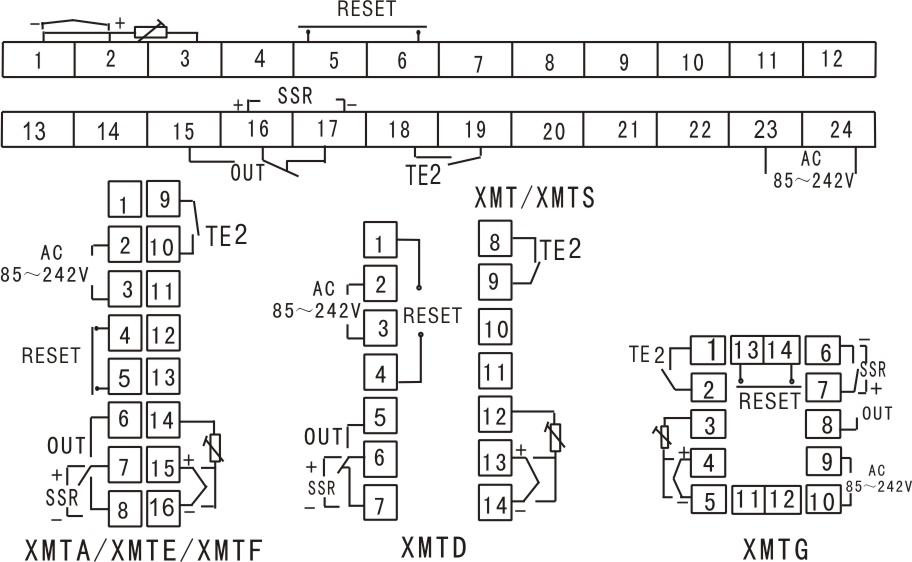

Panel and connection scheme description(consult)

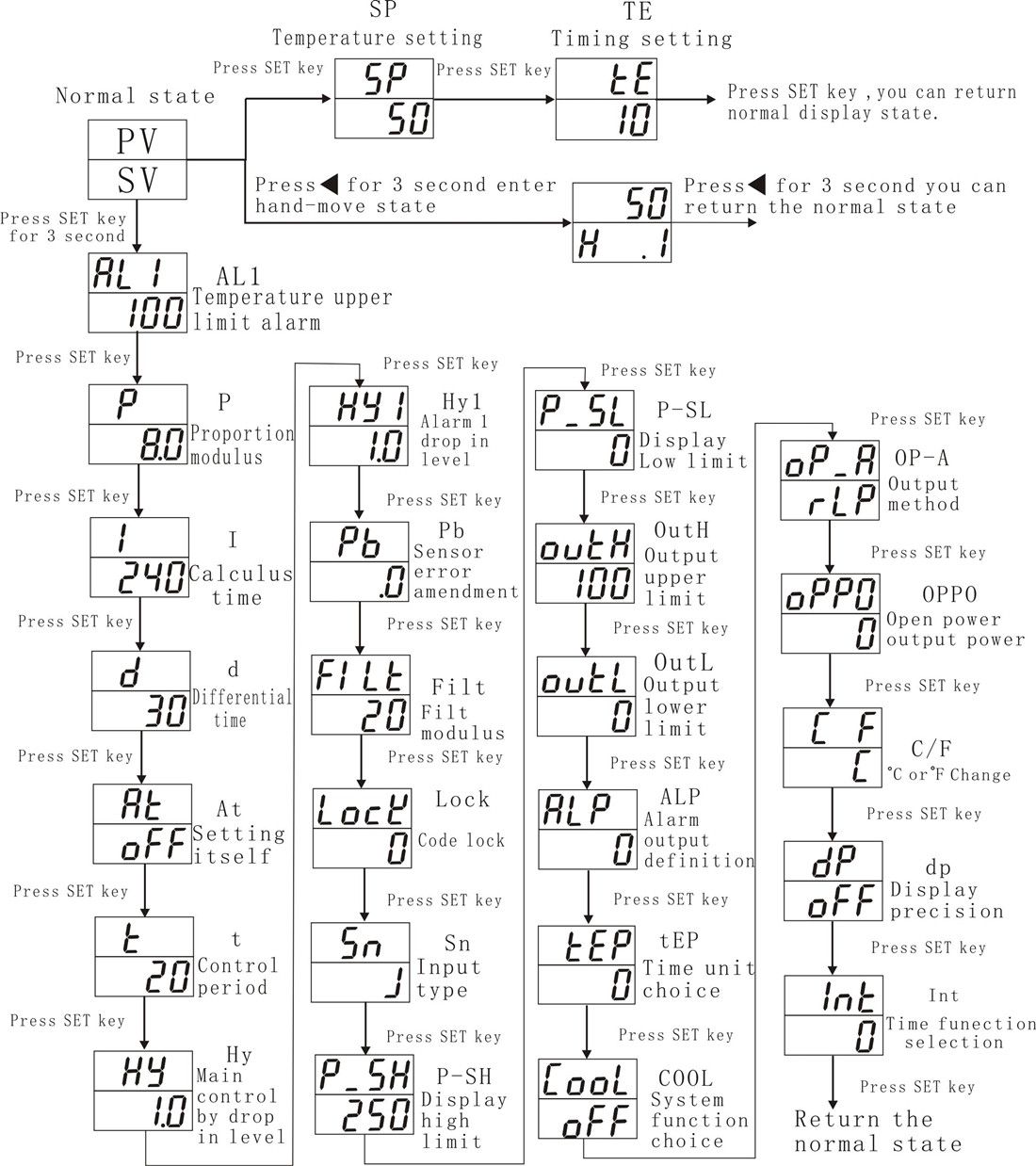

Flow chart

Certificate

Packaging Details

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )
