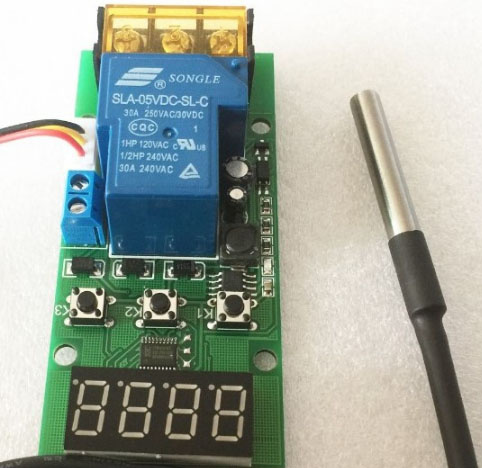

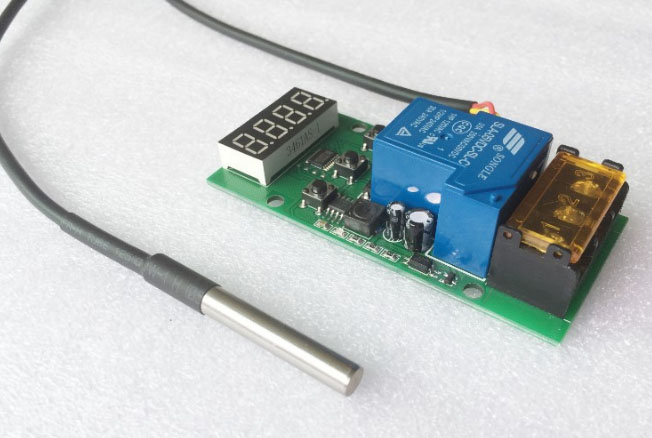

Temperature Control Switch of Detection Relay Module Temperature Control/Temperature Control Board

SPECIFICATION
1: Temperature measurement range: -40.0 ~ 125.0 ºC
2: Upper and lower limit temperature can be set range: 0 ~ 125 ºC
3: can set the delay time, to prevent the output shock, the entire circuit damage. Such as the temperature is higher than 30 ºC, the relay is disconnected, after the delay, the relay will not immediately disconnect, and then delay the temperature if again below 30 ºC, the relay will not work, only the temperature is higher than 30 ºC, The delay time will be disconnected
4: measurement accuracy of 0.1 ºC, standby mode by K3, long-term closed display, reduce power consumption

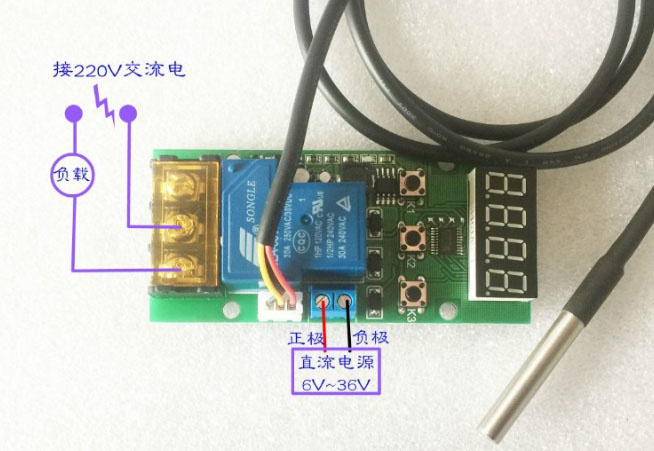

Connect diagram instruction.
5: relay output is a passive contact, no live output, it can control within 30A DC or AC line off

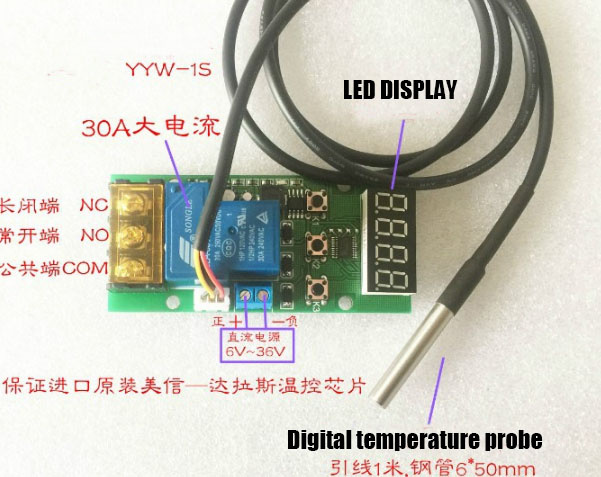

DC-: power supply negative input DC +: power supply positive input (then DC power supply 6 ~ 36V optional)
NC: relay normally closed NO: relay normally open COM: relay common
P-1: Cooling control: When the measured real-time temperature is lower than T1, the relay pulls above the T2 relay off;
P-2: Heating control: When the measured real-time temperature is higher than T2, the relay pulls off, the T1 relay is off;
P-3: constant temperature control: When the measured real-time temperature between T1 and T2, the relay pull, the other case the relay is off;
P-4: constant temperature control: when the measured real-time temperature between T1 and T2, the relay off, the other case relay pull;
P-5: Single point control and delay time setting: Measured real-time temperature is lower than T, relay pull-up, higher than T, relay off
