Xinling Electrical Co., Ltd. China >> Temperature Controller Hh48-M (E5C2 OMRON alike)

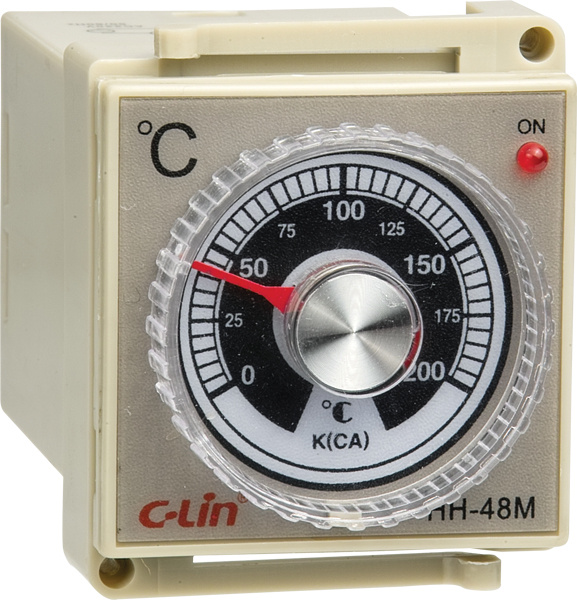

Temperature Controller Hh48-M (E5C2 OMRON alike)

Temperature Controller Hh48-M (E5C2 OMRON alike)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: E5C2 HH48-M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hole Size: 45X 45mm
Application: Drying Case, Oven Backofen, Heating Device
Input Signal: Thermocouple K
Mounting: Panel or DIN Rail
Display: No Indication
Power Supply: AC220V, AC380V
Demension Size: 48X48X90mm
Setting Method: Potentiometer Setting
Control Type: Digital
Type: Temperature Controller
Usage: Control Temperature
Material: Plactis Housing

Product Description

Intelligent Temperature Controller

HH48N/M series temperature controller adopting large scale IC and have resist-shake, good reliability, easy installation etc. It is widely applied to automatically control the temperature, flux, pressure and liquid etc in the industries of machinery, chemical industry, ceramics, light industry, metallurgy, petrochemicals, heat treatment and so on.

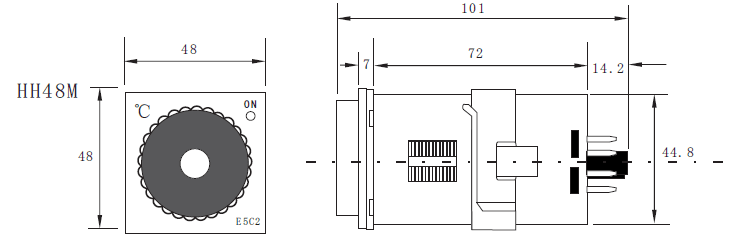

Outline Dimension



Specificatioin

ModelHH48-M
Input signalthermocouple: K
Indication modeno indication
Control mode2-position relay contact on-off control
Setting modepotentiometer setting
Working powerAC220V, AC380V
Outline dimension48*48*90mm
Hole size45*45mm
Installation modepanel type, guide rail type

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
