Xinling Electrical Co., Ltd. China >> Temperature Controller Hh48-N (E5C4 OMRON alike)

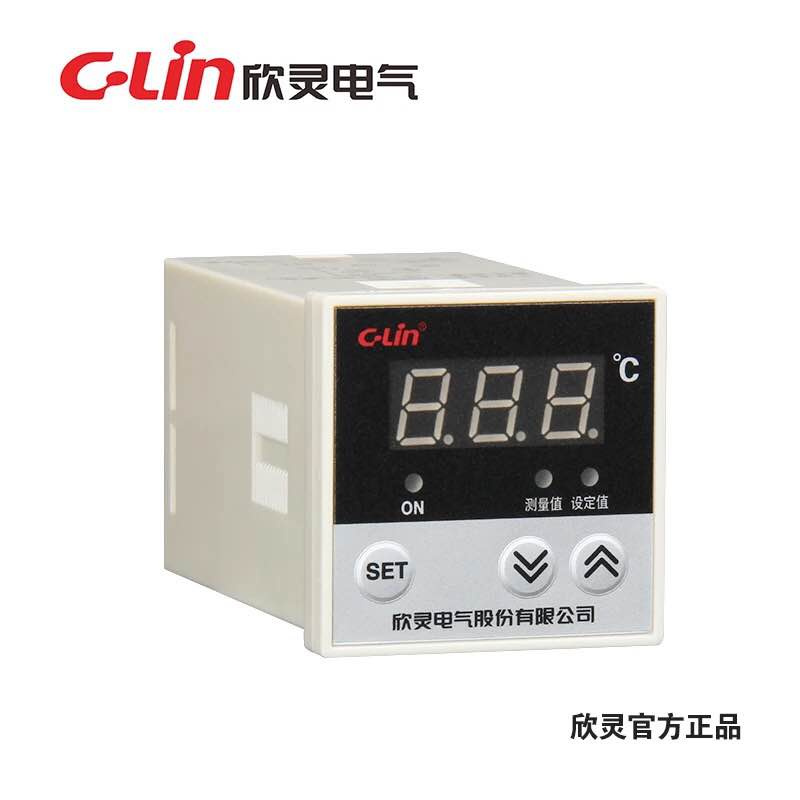

Temperature Controller Hh48-N (E5C4 OMRON alike)

Temperature Controller Hh48-N (E5C4 OMRON alike)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: E5C4 HH48-N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hole Size: 45*45mm
Application: Drying Case, Oven Backofen, Heating Device
Input Signal: Thermocouple K, J
Mounting: Panel or DIN Rail
Demension Size: 48X48X90mm
Power Supply: AC220V, AC380V
Setting Method: Dial Switch Setting
Measurement Error: Less Than or Equal to 1.0 Class
Control Mode: 2-Position Relay on-off Control; Time Proportional
Control Type: Digital

Product Description


Intelligent Temperature Controller


HH48N/M series temperature controller adopting large scale IC and have resist-shake, good reliability, easy installation etc. It is widely applied to automatically control the temperature, flux, pressure and liquid etc in the industries of machinery, chemical industry, ceramics, light industry, metallurgy, petrochemicals, heat treatment and so on.

Outline Dimension



Specification
ModelHH48-N
Input signalthermocouple: K, J
Measure error≤1.0 class
Control mode2-position relay contact on-off control
time proportional relay contact on-off control
Setting modedial switch setting
Working powerAC220V, AC380V
Outline dimension48*48*90mm
Hole size45*45mm
Installation modepanel type, guide rail type
