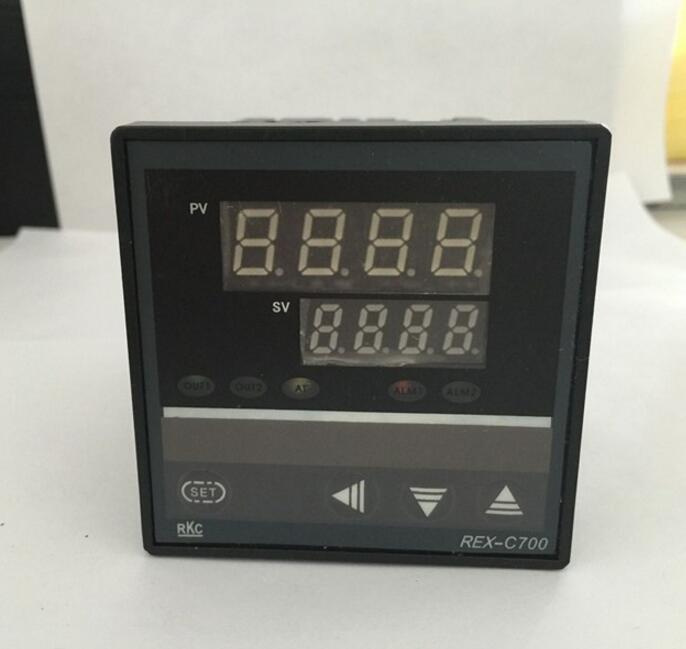

Temperature Controller Rkc Rex-C700 Thermocouple/PT100 Input Relay Output 72*72mm

Product Description

REX-C700 Relay Output PID Thermomstat Dual Digital Temperature Controller

Specifications:

•     100% Brand New.
•     Color: Black
•     Size: 11.2 x 7.1 x 7.1cm(LxWxH)
•     Cold-end compensation tolerance: ±2°c(can be modified by software in 0~50°c)
•     Resolution: 14 bit
•     Sampling cycle: 0.5 Sec
•     Process value (PV), Setting value (SV)
•     Output, alarm and self-tuning can be indicated by: LED
•     PIN control (including ON/OFF, step-type PID and continuous PID)
•     Self-tuning control
•     Relay output: contact capacity 250V AC 3A (resistive load)
•     Alarm function output: 1 way
•     Contact capacity of output: 250V AC 3A (resistive load)
•     Setting value (SV): identical to measuring range (PV)
•     Proportional band (P): 0~full range (ON/OFF control when set to 0)
•     Integral time (I): 0~3600 sec (No integral action when set to 0)
•     Derivative time (D): 0~3600 sec (No derivative action when set to 0)
•     Heat-reset proportional cycle: 1~100 sec
•     Detective temperature range:0 to 400°c
•     Insulation resistance: >50M ohm(500V DC)
•     Insulation resistance: 1500V AC/min
•     Power Consumption: 10 VA
•     Service environment: 0~50°c
•     environment with no corrosive gas 30~85% RH
•     Power supply:100-220V AC 50Hz

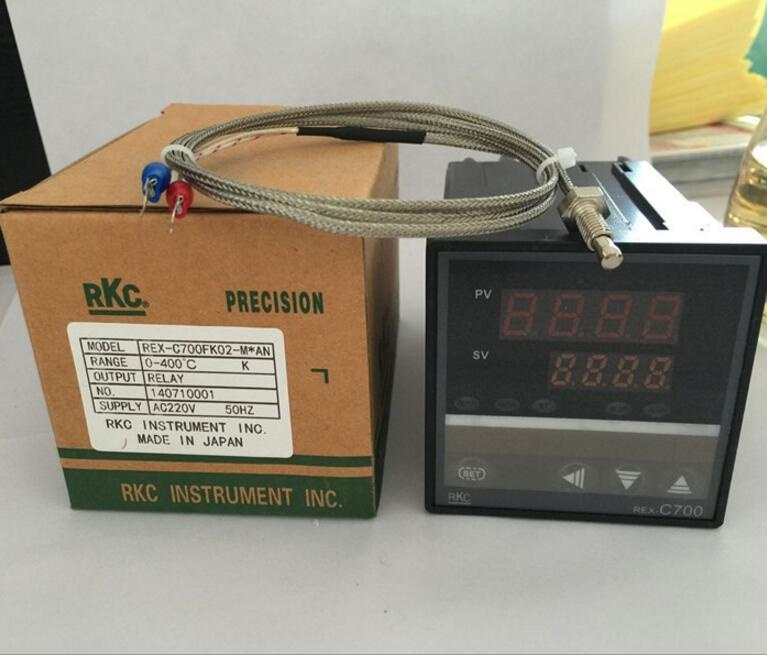

Package Content:

•     1 x Digital Temperature Control Controller
•     1 x K thermocouple 1m 3 feets
•     1 x English manual
