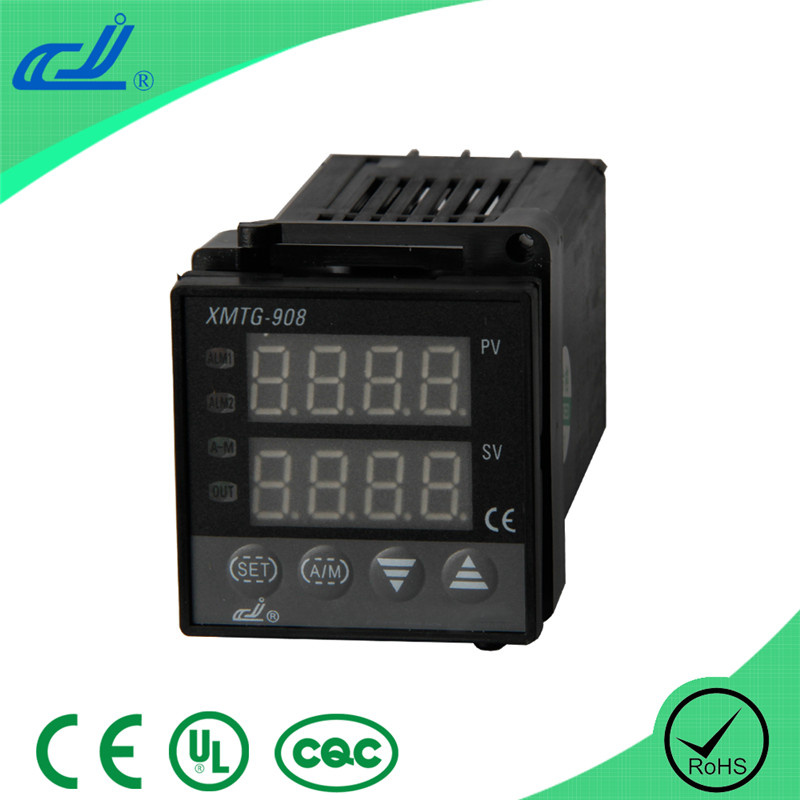

Temperature Controller with 4-20mA (XMTG-908)

Name: Temperature Controller with 4-20mA (XMTG-908)
Brand: all-electronics-online.com
SKU: 681325755
Availability: InStock
Rating: 4.7 (30 reviews)

Price:	US $ 25.8/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTG-908
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Specifications
XMT-908 intelligence-ability temperature controller is a kind of high performance & reliability intelligence-ability temperature control meter, they are widely used in the automatic control system of the temperature, chemical, ceramics, light, metal, petrochemical and heat treatment industry

Main technical specification
1. Measurement deviation: ≤ ± 0.5%F. S± 1
2. Cold end compensating deviation: ≤ ± 2.0C
3. Sampling cycle: 0.5S
4. Control cycle: Relay output 2120S, other is 2S.
5. 4-20mA constant electrica current output.
6. Driving controllable pulse output: ≥ 3V scope, ≥ 40us width's over zero or trigger contact pulse
7. Driving solid relay signal output: Driving electric current≥ 15mA, voltage≥ 9V.
8. Continuous PID: 010mA (load 500± 200Ω ), 420mA (load 250± 100Ω ), or 05V (load≥ 100kΩ ), 15V (load≥ 100kΩ )
9. Exterior and hole size: 48× 48× 110 44× 44
10. Power: AC85V242V, 50/60Hz
11. Working condition: Temperature 0-50.0C, relative humidity≤ 85%RH, without corrode and strong electric radiation.

Instrument panel and connection scheme (consult)

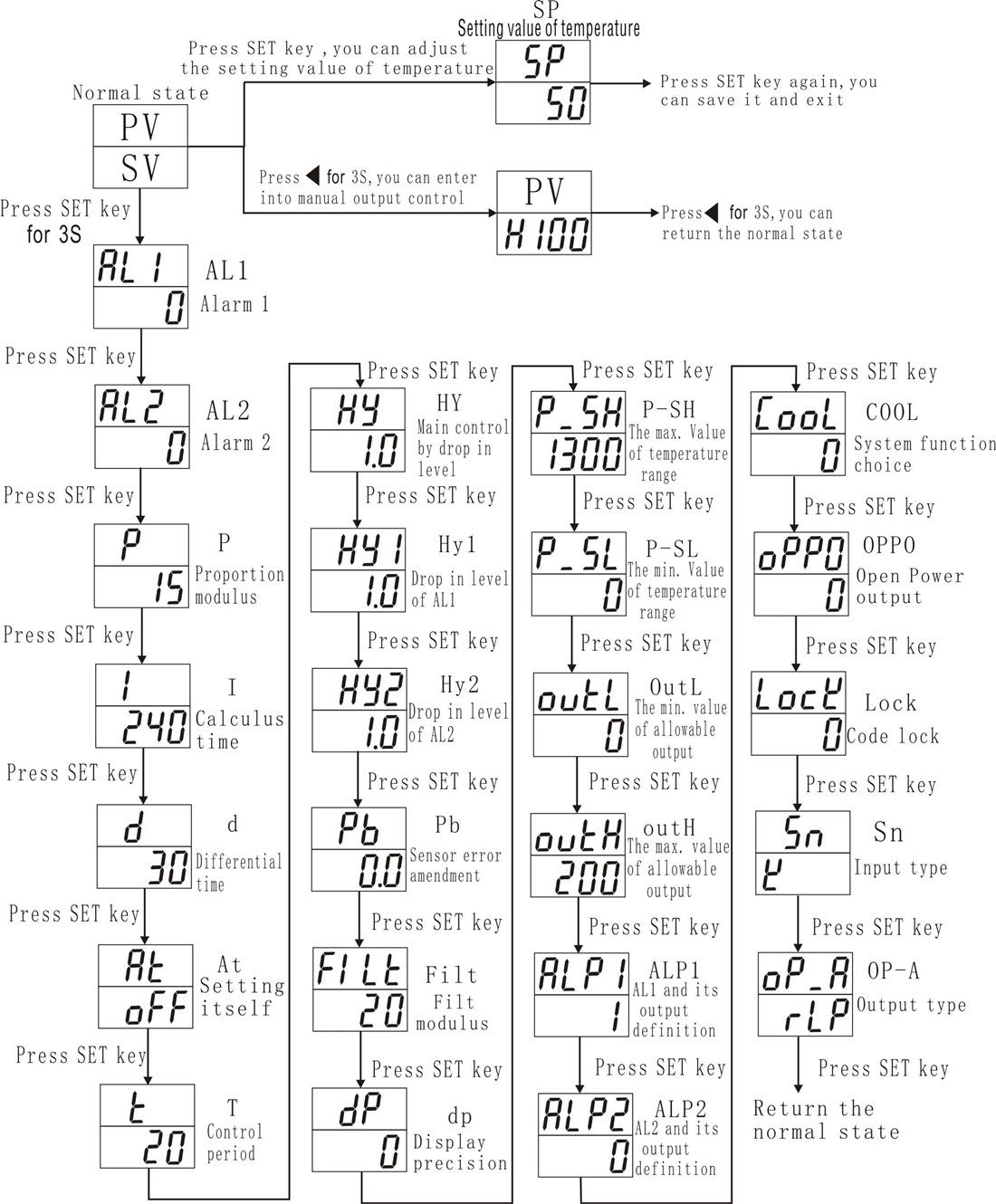

Flow chart

Certificate

Packaging Details

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )

Welcome to our factory.
