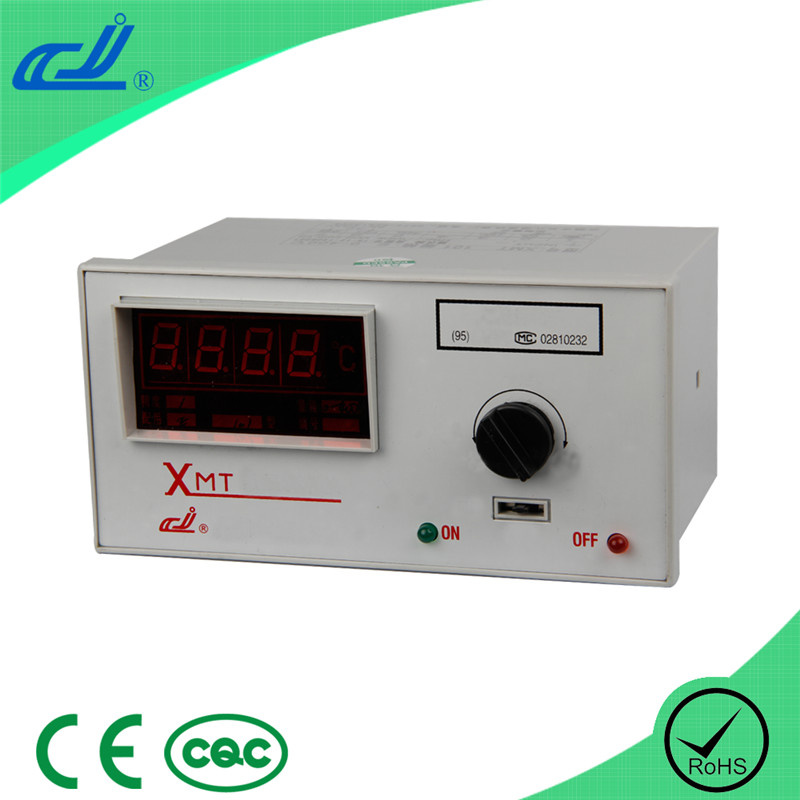

Temperature Controller with K (XMT-101/2)

Prod Model:	XMT-101/2
Size:	160*80*130
Type:	Temperature Controller
Usage:	Temperature Control

Product Description

I. Summarize
XMT* series digital electronic temperature adjuster can be combined with diverse thermocouples to

render an automatic measuring and control over the temperature. The adjusters therein serve for the

entire measurement distance indication and full range regulating. The adjuster is the 2-digital regulating

method. The adjusters have functions of the cold end automatic compensation and couple-breakage

protection. The adjusters are nice-looking in style, easy for use cheap in price, providing a relatively high

comparability between performance and price, widely used in the plastic machinery, packing machines,

food-processing machinery as well as the light industrial, textile printing and dyeing industries which

require the control on the temperature.

II. Technical specification

1. Display method: LED displayed measure value

2. Display error: ≤ 1.0%FS± 1 byte

3. Enactment warp: ≤ 1.0%FS

4. Thermocouple cold end compensate: 0~50, error<2

5. Time proportionment adjustment: Proportionment strip 1%~3% cycle: 30S± 10S

6. Contact capacity: 220VAC, 7A(dissipative load)

7. Power voltage: AC85~242V± 10% 50Hz/60Hz, consumption power: 3W

8. Environment: Temperature: 0~50; Humidity: Less then 85% RH.

9. Exterminal dimensions and hole size: 160*80*130 152*76
