Yuyao Gongyi Meter Co., Ltd. >> Temperature Controller with Wall Installation (XMTC-308)

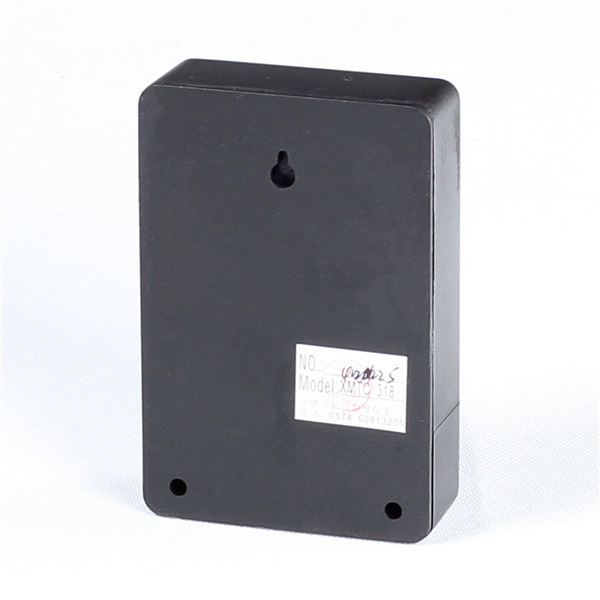

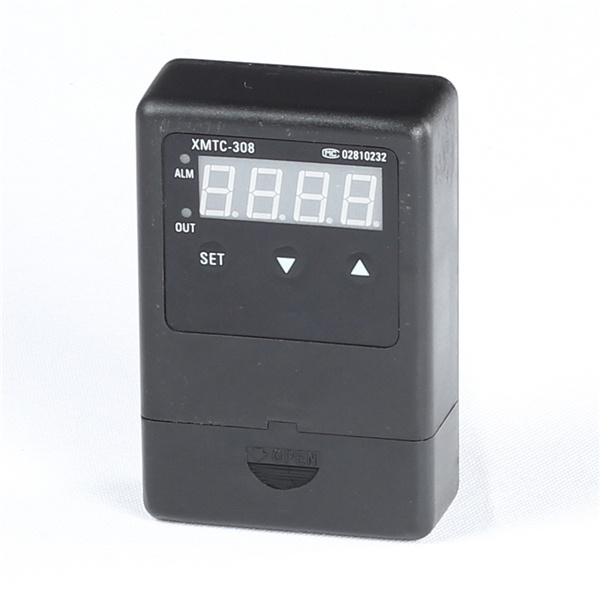

Temperature Controller with Wall Installation (XMTC-308)

Temperature Controller with Wall Installation (XMTC-308)
Price: US $ 18.2/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: XMTC-308
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

 Main Technical Indexs

1. Measurement deviation: ± 0.5F@S± 1, Cold end compensating deviation± 1

2. Input type(range): CU50(-50~150.0)\PT100(-199.9~600.0)\K(-30~1300)\E(-30~700)\J(-30~900)\T(199~400)

3. Relay output contact capacity: 7A(resistance load)

4. Dring solid relay signal output: Driving electric current 15mAvoltage >12V, period is 2S

5. Driving controllable pulse output: >100mA, instantaneous big is 1A

6. Power supply: AC90V~242V, 50Hz

7. Work environment: Temperature 0~50.0, relative humidity≤ 85%RH, without corrode and strong electric radiation.

8. External dimension(mm): 80× 120× 35 put up


Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )

Welcome to our factory.
