| Prod Model: |
QST-204 |
| Temperature Range: |
-20~+80 Dge C |
| Measure Range: |
0~100m |
| Output: |
0~20mA.0~5VDC,0~10VDC |
| Product Name: |
Submersible Level & Temperature Transmitter |
Product Description

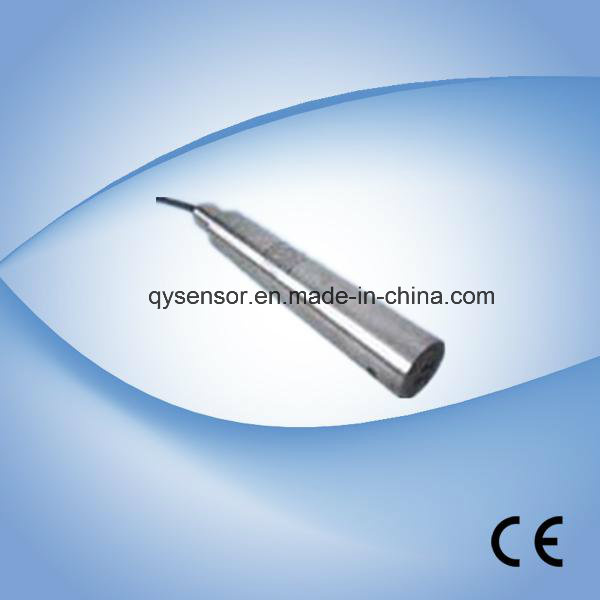

QST-204 Submersible Level & Temperature TransmitterApplication:QST-204 submersible level & temperature integration transmitter in composed by high accuracy & stability pressure sensor, temperature sensor and special propose circuit, the level and temperature of measured media will be transformed to 4~20mA or 0
~10mA electrical output signal separately. With the characteristics of high reliability and high stability, it is widely used for measuring static and dynamic state of various liquid in water works, oil refinery, chemical plant, glassworks, sewage treatment works, water supply system, reservoir and riverway.
Features:Submersible temperature level transmitter
4mA~20mA signal output
,0~5, 0~10VDC can be choosen
Measure range
:Level
0~100mH2O, Temperature
≤80ºCHigh accuracy
Good stability
Wide operation temp.
:-20ºC~+80ºCGood ability in corrosion resistance
:316L diaphragm
,1Cr18Ni9Ti housing
Trebling lightning protection, anti-condensation and anti-interference design
Specification: | Measuring media | Liquid which are compatible to 316L stainless steel |
| Measuring range | mH2O | 0~100 |
| Signal output | transmitter
(2 wires) | 4~20mA |
transmitter
(3 wires) | 0~10mA,0~5V, 0~10V |
| Power supply | Vdc | 12~36V(Standard 24V) |
| Static accuracy | %FS | 0.1 | 0.3 | 0.5 |
| non-linearity hysteresis | %FS | ≤0.1 | ≤0.3 | ≤0.5 |
| zero drift | %FS/4h | ≤0.1 | ≤0.3 | ≤0.5 |
| Temp. coefficient of ZERO | %FS/ºC | ≤0.01 | ≤0.03 | ≤0.05 |
| Long-term stability | %FS/year | 0.1 | 0.2 | 0.3 |
| Response time | (10%~90%)ms | ≤1 |
| safe overload | % | 200 |
| Operation temp. | ºC | -25~+80 |
| Compensated temp. | ºC | 0~+70 |
| Material of diaphragm | 316L Stainless steel |
| Defend grade | IP 68 |
| Material for housing | 1Cr18Ni9Ti |
| Explosion-proof grade | Exia IICT6 |
Electrical connection:For 4~20 mA level output & 4~20 mA temperature outputPower +: red signal (level): greenSignal (temperature): blue shielded wire: blackPackaging & Shipping
- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
Our Services
- We are committed to providing a high quality,and responsive services to all clients
- Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packageing: well box packed and provide optimal freight for you refrence.
- All products OEM available
