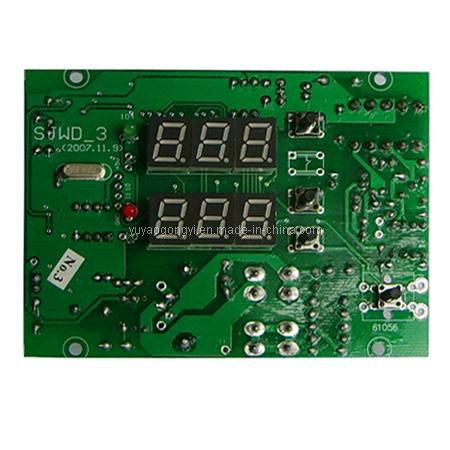

Temperature Meter with Time Function (SJWD-3) for Industry

Name: Temperature Meter with Time Function (SJWD-3) for Industry
Brand: all-electronics-online.com
SKU: 681860195
Availability: InStock
Rating: 4.5 (79 reviews)

Price:	US $ 22.5/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SJWD-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Useage:	Industrial

Product Description

Main technical Indexes

Measurement deviation: ± 0.5FS± 1, additional cold end compensating deviation≤ ± 2C
Input: K(0~400F)
Time range: 0~999S
Work power: AC85V~242V, 50/60HZ
Work environment: 0~50C, relative humidity≤ 85%, without corrode and strong electric radiation.

Series		Attention	Name	Setting range	Description	Ex-factory
First Menu	0	Loc	Lok	0~50	When Loc=18,can modify all the parameter;	18
	1	SC	Measurement deviation amendment	-20~20	Increasing or decreasing this data can modify Measurement value.	0
	2	P	Proportion band	0~200.0	When P↑, proportion function↓, clash↓, but too little will add the heating time When P=0, the instrument is ON/OFF control.	8
	3	I	Integral time	0~999	Set integral time so as to unchain residual Deflection caused by proportion control. To increase it, the static difference will be reduced, but when it is too high ,thestatic difference will drift instability.	240
	4	d	Differential time	0~200	Set differential time to avoid fluctuation of output so as to improve the steady of control.	30
	5	t	Control period	2~ 120S	-	10
	6	Hy	Main control by drop in level	0.1~50.0	It makes sense when ON/OFF control.	1.0

Second Menu	7	Su	Temperature setting	0~400	Press∧or ∨3s can modify the set value, the controller has output, and the green indicator light on.	-
	8	tE	Time setting	0~999	When the temperature reach the set value, It starts timing, time out, the buzzer alarm, and the red indicator alarm.	10

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )

Welcome to our factory.
