Guangzhou Topshine Electronic Technology Co., Ltd. >> Temperature Monitoring 2 Fuel Sensor Vehicle GPS Tracker

Temperature Monitoring 2 Fuel Sensor Vehicle GPS Tracker

Temperature Monitoring 2 Fuel Sensor Vehicle GPS Tracker
Price: US $ 47-57/Set
Trade Terms: FOB,EXW
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: VT310N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Free GPS Tracking Platform: Yes
Warranty: 2 Years
GSM Module: Quectel M35
GPS Module: Ublox 7
Certification: Ce/RoHS/SGS
Is Customizable: Yes
Protocol: Opened
Backup Battery: 850 mAh
Flash Memory: 4MB
Power Supply: +9V~36V/1.5A

Product Description

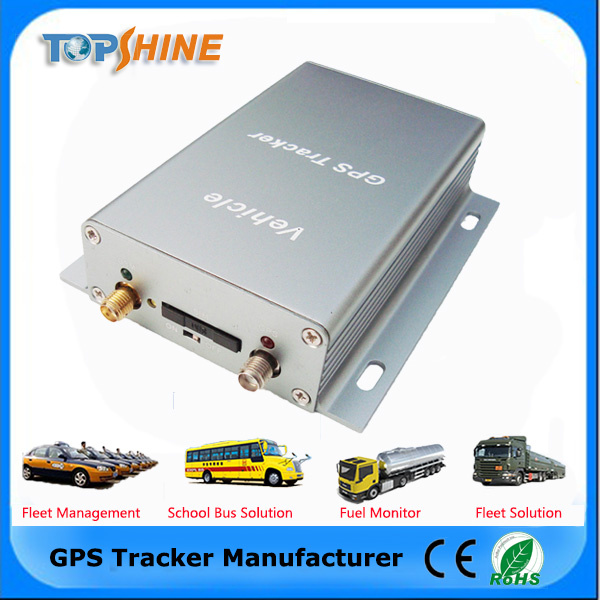

Temperature Monitoring 2 Fuel Sensor Vehicle GPS Tracker VT310N


Product Overview

VT310 is an advanced GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security.VT310 has good sensitivity and stable performance.Especially, VT310 is well designed to work with our webbased tracking system, which is suitable for a company to establish a tracking server to provide realtime tracking solutions to their customer or manage their fleet.It is a fully function tracker that supports fuel sensor and voice prompt functions and has strong expansibility and customization ability.






Application


* For vehicle tracking and security
* Vehicle Tracking & Security
* Fleet Management
* Equipment Security
* Asset
* RFID alarm(optional)



Specification


Technical Parameters:
Power Supply+9V - +35V / 1.5A
Backup Battery850mAh
Dimension104mm x 62mm x 24mm
Installation Dimension104mm x 83mm x 24mm
Weight150g
Operating temperature-20° to 65° C
Humidity5% to 95% Non-condensing
FrequencyGSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Moduleublox 7
GPS Sensitivity-158Db
GPS FrequencyL1, 1575.42 MHz
C/A Code1.023 MHz chip rate
Channels20 channel all-in-view tracking
Position Accuracy10 meters, 2D RMS
Velocity Accuracy0.1 m/s
Time Accuracy1 us synchronized to GPS time
Default datumWGS-84
Reacquisition0.1 sec., average
Hot start1 sec., average
Warm start38 sec., average
Cold start42 sec., average
Altitude Limit18,000 meters (60,000 feet) max.
Velocity Limit515 meters/second (1000 knots) max.
LED2 LED lights to show GPS/GSM working status.
Flash Memory4MB
Interface5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs.

Packing Measures:
NeutralDimension (mm)Weight (KG)Capacity
Box225x160x550.581 set
Carton470x340x3101420 sets

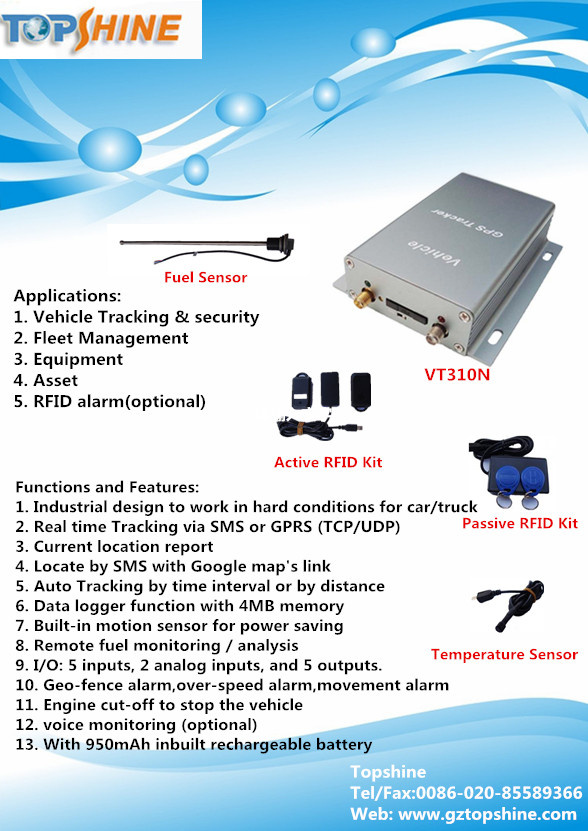

Functions & Features:

* Two way positioning, still show position on map when there is no GPS signal or GPS antenna is cut
* GSM jamming signal detection.

* Door open/close status detecting
* Door lock/unlock control

* Crash sensor for accident alarm (Optional)
* Detect 2 Fuel sensor, fuel management  (Optional)
* Temperature Sensor/door sensor/alcohol sensor supported  (Optional)
* Cut off engine by SMS gradually for safety

* Engine on/off detection
* Anti-robbery with SOS button, call for help
* 6 authorization alarm phone numbers
* Movement Alert, Geo-Fence Alert, over-speed alert, external power cut off alarm
* Inbuilt 4MB data logger for GSM blind area (save more than
26,000+ waypoints way points even no GPRS signal)
* With 850mAh inbuilt rechargeable battery

* Wiretapping/remote listening (optional)
* RFID automatic anti-theft / driver identification (optional )
* Suitable for any 9V-36V DC vehicles (12/24V suggested)
* Power saving / GPRS data saving design, low battery alert
* Real time tracking by SMS or by GPRS
*Get address street name and Google map link via SMS

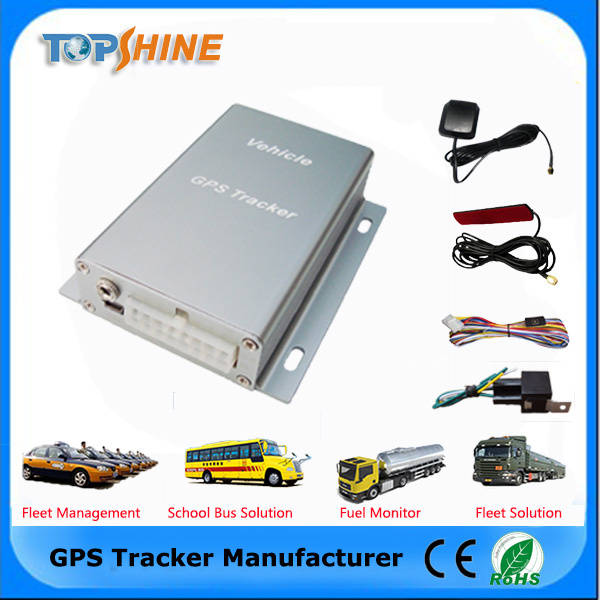

Package and accessories
VT310 unit  -- 1 piece
16-P wire   -- 1 piece
Relay -- 1 piece
GSM antenna  -- 1 piece
GPS antenna  -- 1 piece








Optional Accessories:

* USB cable
* Fuel sensor
* Microphone
* Temperature sensor




Welcome to test our Free GPS tracking software


Web base : www.track-car.com

Mobile Phone: http://www.track-car.com/M

User name: test1

Password: 123

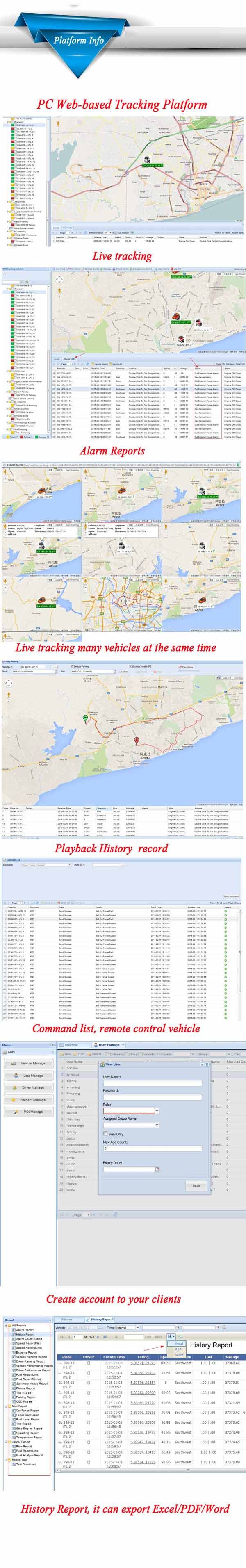

Web base GPS tracking platform

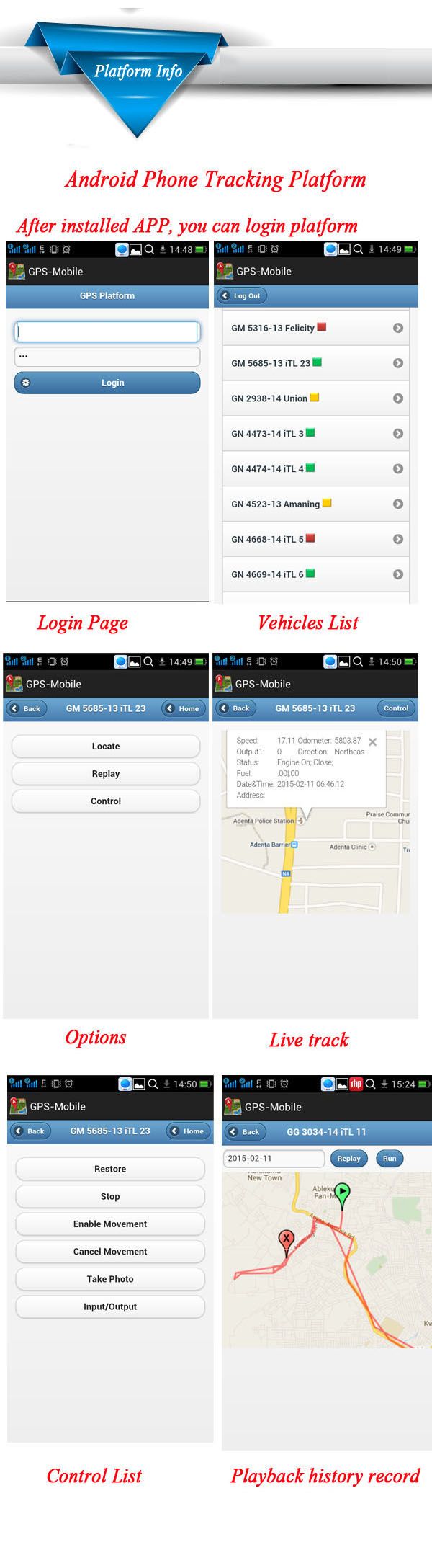

Android APP GPS tracking platform






Shipment & Certificate









Our advantage

* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.



Payment & Shipment:

Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.



Inquiry Now!!

Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.

Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.

With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.

TOPSHINE provides a proprietary system to help clients manage their fleet and asset.

Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of

Vehicles to transport their goods or clients with valuable moveable assets, to monitor

Their assets thus minimizing the risks associated with their investments, increasing

Efficiency and productivity, and minimizing logistics and manpower costs. Real-time

Information can help with effective decision making, thus improving your company's

Performance and reducing overall costs.

We currently serve over 100 major customers and our clients come from various

Industries with unique demands or operational requirements. We can customise our

System to cater to our client's needs. In our ever-growing network of connected

Devices, our fleet can be monitored from anywhere with our mobile applications. Our

Services cover Hong Kong, China and cross border fleets.

Professional Consulting Services

With years of service experience, we have built up a good reputation and a strong

Professional team to provide strategic solutions and technical advice in fleet

Management. We work closely with all our clients to define their problems and

Expectations and tailor the best solution to solve their fleet management problems.

Our role is more than a technology provider who is assisting you to drive your

Business to be more profitable and competitive.

Customer Integration Services

Our team will support you as you work to integrate the GPRS01 system into your

Operations. We provide complete servicing from the installation to the maintenance of

Each tracking unit. A member of our customer support team will help coordinate the

Times and location for unit installation and demo/training times at your convenience,

While you, our client, can concentrate on managing your business.

On-Site Training Services

Once we have installed our units in your fleets, a training session will be arranged to

Familiarize all necessary parties with the software. We also provide a customer service

Help desk to assist you should you have any further questions. Our strong customer

Service team will ensure you understand the system and can put it to good use.

Customer Care Services

Customer satisfaction is a critical element for us. We care about our clients' needs,

Ideas and opinions. We make sure our products and services satisfy or exceed our

Client's expectations.
