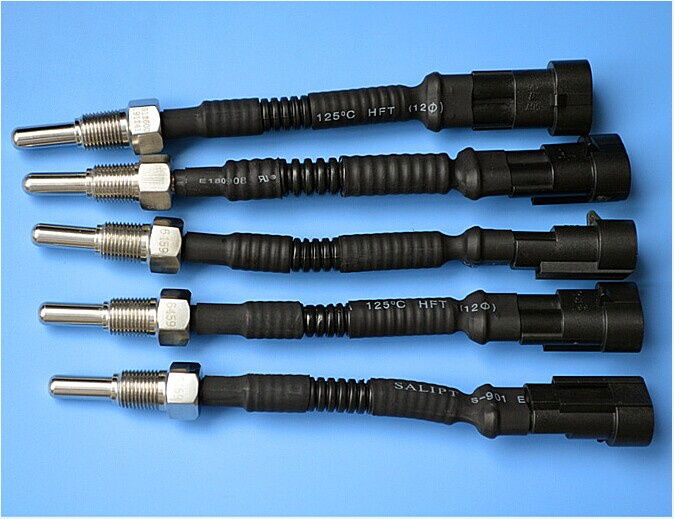

Temperature Sensor for Gasoline Hybrid Engine System Tsp-087

Name: Temperature Sensor for Gasoline Hybrid Engine System Tsp-087
Brand: all-electronics-online.com
SKU: 739106515
Availability: InStock
Rating: 4.8 (115 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSP-087
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Switching Sensor
Usage:	Temperature
Theory:	Magnetic Sensor
Material:	Metal

Product Description

Product Type: LSB4-179-1 / 2-500 Gas Temperature Sensor Item No.: TSP-087 Product Description: TSP-M-10-18-A-4 gas temperature sensor, TSP-087 belonging to the platinum resistance temperature sensor, mainly used in gasoline hybrid engine systems. And supporting the use of gas solenoid valve. Product code TSP-087 Model TSP-M-10-18-A-4 PTOO0 element resistance values: 0 °C under 1000Ω, Class B {IEC6075l} Sensor Tolerance: ± (0.8 + 0.015T) O °C:: T is the absolute value of the measured ambient temperature (probe inserted into the length of 22mm) Response time: To.5 (100 °C) = 20s; Temperature insulation:> 100MΩ, 500V DC; Sensor protection class: IP67, according to GB / T 4208; Threaded mounting: 1 / 8NPT thread must meet the GB / T 12716; Vibration requirements: according to technical condition QC / T 413; The rest: according to technical condition QC / T 413. T ( °C) R (Ω) -100 607.6 -80 683.3 -60 763.3 -40 842.7 -20 921.6 0 1000 20 1097.3 40 1155.4 60 1232.4 80 1309.0 100 1385.1 Factory inspection 25 °C and -40 °C

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
