Temperature Sensor (Simple Sensor) for Industrial

Prod Model:	Simple Sensor
Size:	5*30
Material:	Metal

Product Description

Specifications

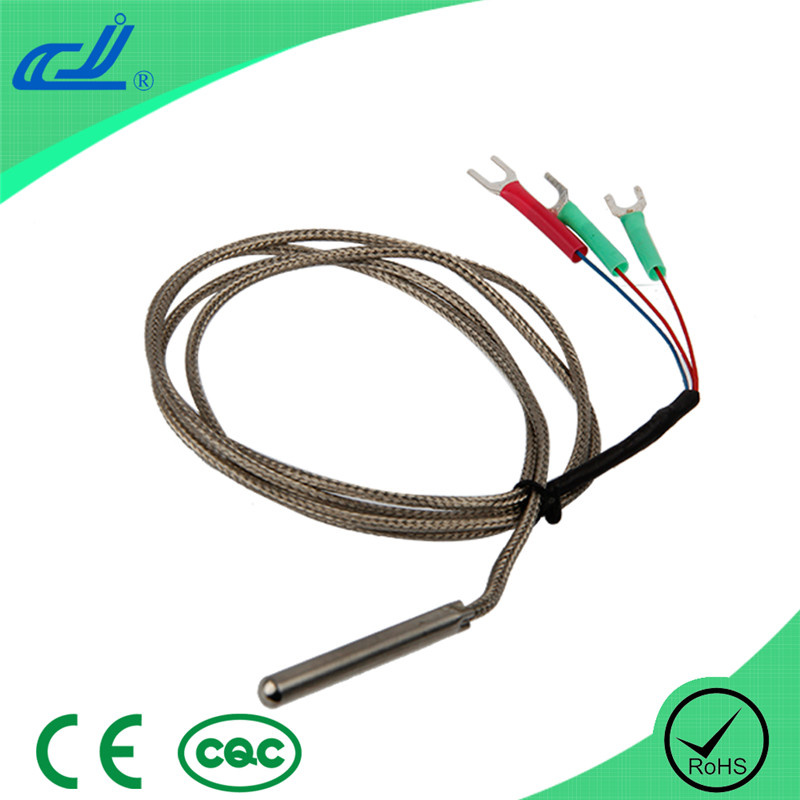

Simple thermocouple
Model: WZPX-505
Specification: 5x30mm
Make an order according to the customer
Temperature less than 400c

Sensor Meaning of the model code
W____ ___ ___ ___ ____ ____ ____
(1) (2) (3) (4) (5) (6) (7)


(1) Graduation Number:
RN: Nickel chrome nickel silicon thermocouple (K)
RE: Nickel chrome cupreous nickel thermocouple (E)
RF: Iron cupreous nickel thermocouple (J)
RP: Platinum rhodium12 platinum (S)
RR: Platinum rhodium30 platinum (B)
RT: Copper cupreous nickel (T)
ZC: Cupreous thermo resistor (CU50)
ZP: Platinum thermo resistor (PT100)


(2) Type: X compact type (this item cancel the black space)
B standard type (blank) K Armor type


(3) Mounting method:
Compact type: 1- tube type 2- pressure type 3- screw type
4- coil type 5- simple type
Standard type/ Armor type
1- without fixing device 2- fixed screw thread
3- movable screw thread 4- fixed flange 5- movable flange


(4) Connecting box form
0- without connection box 1- simple connection box
2- splash proof connection box 3- waterproof connection box
4- blast proof connection box 5- BNC connector jack connection box

(5) The form for measure end
0- with no request 1- connect shell 2- outcrop model 3- insulation type


(6) External diameter (millimeter)
0-16 1-12/M12 2-2 3-3 4-4 5-5 6-6/M6 7-7 8-8/M8


(7) With transfer output:
B: 4-20MA B: 0-10MA B: 1-5V B: 0-5V


Model	WZPX-505
Specification	5*30
tube	2-16mm can be selection
length	30-500mm can be selection

Model and specification:

Type	Code name	Measure range (ºC)	Class	Allowable deviation t (ºC), the greater one of  two	Specification length
K Nickel chrome-nickel sillicon	WRN	- 40~1000	I	±1.5ºC or ±0.4%t	0.5M,0.75M,1M,1.5M,2M,2.5M,3M and so on. Note: The small thermocouple, thermal resistance sensor measuring range does not exceed 400ºC. Sensor measuring range according to the real object.
		-40~1200	II	±2.5ºC or ±0.75%t
E Nickel chrome cupreous nickel	WRE	-40~800	I	±1.5ºC or ±0.4%t
		-40~900	II	±2.5ºC or ±0.75%t
J Iron-cupreous nickel	WRJ	-40~750	I	±1.5ºC or ±0.4%t
			II	±2.5ºC or ±0.75%t
S Platinum rhodium12 platinum	WRP	0~1600	II	±1.5ºC or ±0.25%t
B Platinum rhodium30 platinum6	WRR	600~1700	II	±1.5ºC or ±0.25%t
T Copper-cupreous nickel	WRT	-40~350	I	±0.5ºC or ±0.4%t
			II	±1ºC or ±0.75%t
CU5O Cupreousthermoresistor	WZC	-50~150	II	±0.3ºC or ±0.6%t
PT100 Platinum thermoresistor	WZP	-200~650	I	±0.15ºC or ±0.2%t
		-200~850	II	±0.3ºC or ±0.5%t
