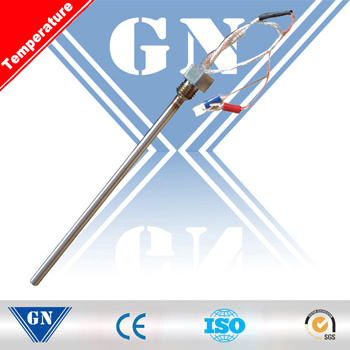

Temperature Sensor Thermocouple (Tube Sensor)

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	N,K,E,T,J,PT100,Cu50,Cu100
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Temperature Sensor Thermocouple (Tube Sensor)


Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to 800C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-800C centigrade .
5.Terminal blocks: terminals box


Selection table:

Application
It is used for steam pipe , boiler and other environment with demands on temperature ,pressure and flow speed.

Main Technical Parameters
Electric Outlet: M20×1.5, NPT1/2
Connection Size: M20×1.5, NPT1/2
Protection Class: IP65
Type & Specification

Type	Graduation	Measuring Range °C	Nominal Pressure	Flow Speed	Remarks
WRN-01T WRN2-01T	K	0~800	<30Mpa	<100m/s
WRE-01T WRE2-01T	E	0~800
WZP-01T WZP2-01T	Pt100	-200~500
WRN-624 WRN2-624	K	0~800	<30Mpa	<80m/s	Insulation Type
WRE-624 WRE2-624	E	0~600
WZP-624 WZP2-624	Pt100	-200~500
WRN-625 WRN2-625	K	0~800			Shell-connecting Type
WRE-625 WRE2-625	E	0~600

Type	Graduation	Measuring Range °C	Nominal Pressure	Flow Speed	Specification
WRN-012T WRN2-012T	K	0~800	≤10Mpa		400×230 640×430 840×630 1340×1130 2500×1200 640×430 3000×1500 3500×1700
WRE-012T WRE2-012T	E	0~600
WZP-012T WZP2-012T	Pt100	-200~500
WRN-12A WRN2-12A	K	0~800
WRE-12AT WRE2-12AT	E	0~600
WZP-12AT WZP2-12AT	Pt100	-200~500
WRN-013T WRN2-013T	K	0~800	≤30Mpa	≤100m/s	380×50 430×100 480×150
WRE-013T WRE2-013T	E	0~600
WZP-013T WZP2-013T	Pt100	-200~500
WRN-014T WRN2-014T	K	0~800	≤10Mpa	≤80m/s	280×50 330×100 380×150 430×200 480×250 530×300
WRE-014T WRE2-014T	E	0~600
WZP-14T WZP2-14T	Pt100	-200~500
WRN-015T WRN2-015T	K	0~800	≤10Mpa		280×50 330×100 380×150 430×200 480×250 530×300 580×350 630×400
WRE-015T WRE2-015T	E	0~600
WZP-015T WZP2-015T	Pt100	-200~500

After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
