Tensile Force Measure Sensor

Name: Tensile Force Measure Sensor
Brand: all-electronics-online.com
SKU: 733704102
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 150-200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BR201
Size:	16.515.9mm(HD)
Capacity:	3000n
Accuracy:	0.5%
Load Direction:	Tension
Type:	Sub-Miniature Tension & Compression Load Cell
Pattern:	Tension
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Stain Gauge

Product Description

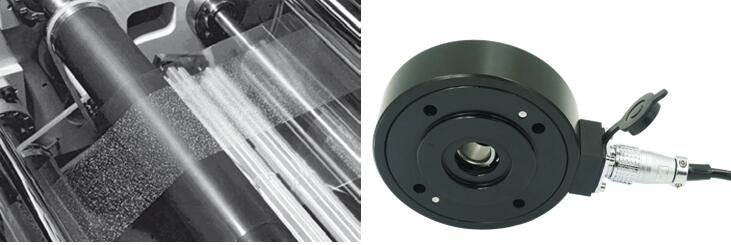

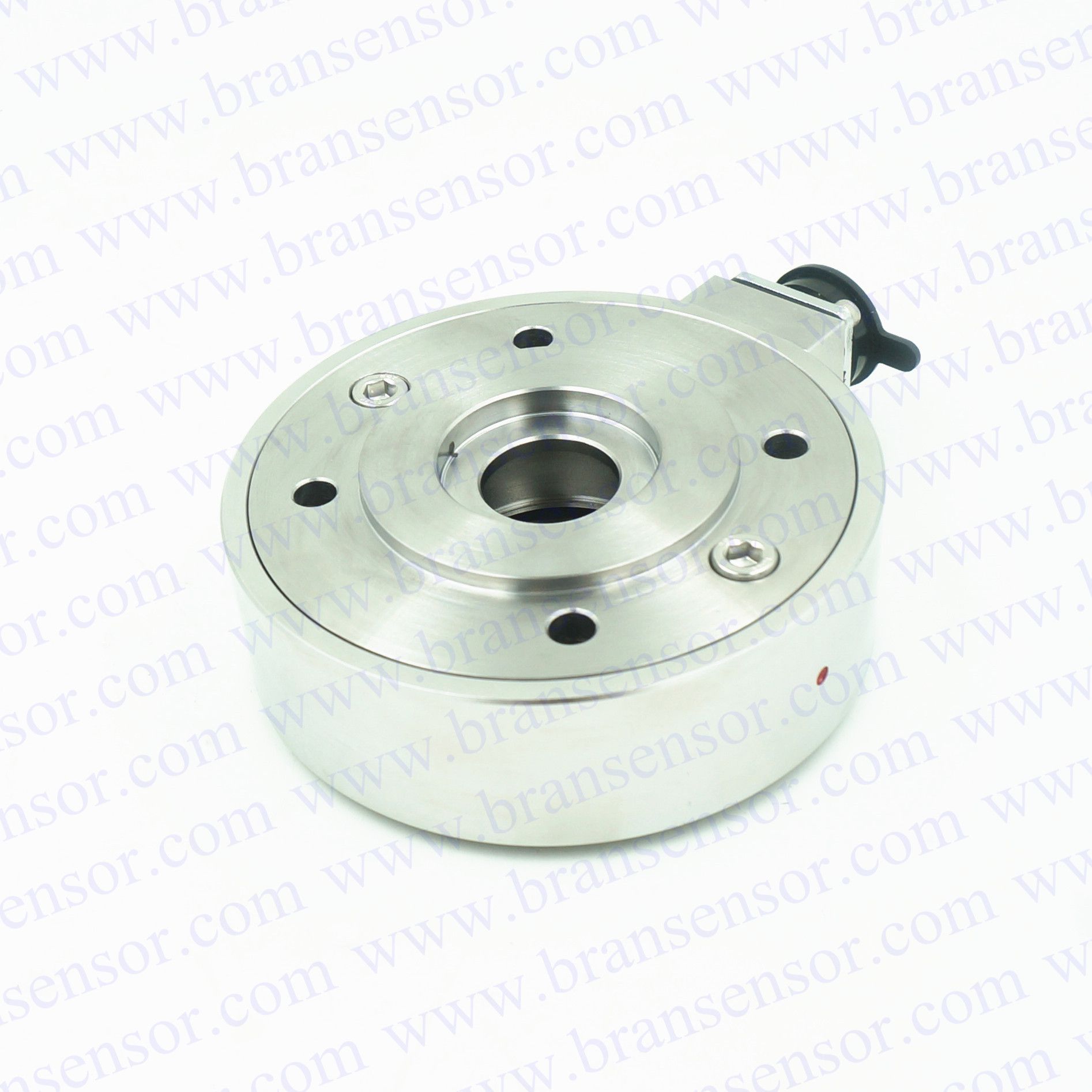

1. Name: Tension Load Cells with high accuracy sensor

2. Material and Capacity: 17-4PH S.S 10 to 3000N

3. Details of Design (Design could be customized)

Inner Hole D	Capacity(N)	Dimension(mm)										weight
Inner Hole D	Capacity(N)	A	B	C	E	F	G	H	J	K	Deformation quantity	kg
9	100/50/20	94	37	50	26	14	31	14.35	64	5.5	0.13	1.5
12	500/200/100/50	100	37	50	28	16	31	13.35	70	6.6	0.15	1.6
17	1000/500/ 200/100/50	105	37	60	35	22	31	12.35	75	6.6	0.15	1.7
20	1500/1000 500/200/100	125	48	70	45	31	40	16.2	95	6.6	0.20	2.9
35	3000/2000 1000/500	175	66	100	58	44	58	22.1	135	9	0.35	8.3
50	12000 6000 3000 1500 750	225	76	130	80	64	68	24.1	175	11	0.10 0.52 0.30 0.30 0.30	15.0
65	25000 10000 5000 2500	270	81	160	100	80	73	23.6	220	11	0.10 0.95 0.60 0.50	22.5

4. Datasheet

	Specifications	/Technique
	Capacity	20N~25kN
	Rated output	2.0±0.2%mV/V
	Zero balance	±2% F.S.
	Non-linearity	0.25%F.S.
	Hysteresis	0.25%F.S.
	Repeatability	0.1%F.S.
(30min)	Creep(30min)	0.1%F.S.
	Temp.effect on output	0.05%F.S./10ºC
	Temp.effect on zero	0.05%F.S./10ºC
	Input impedance	410±10Ω
	Output impedance	350±5Ω
	Insulation	≥5000MΩ/100VDC
	Recommended excitation	10V
	Maximum excitation	15V
	Compensated temp range	-10~60ºC
	Operation temp range	-20~80ºC
	Safe overload	120%F.S.
	Ultimate overload	150%F.S.
	Cable size	Φ5×3000mm
	IP Class	IP65

5. Application details
These tension sensors are mainly used for milling or grinding machine, rototic polishing and other industrial measuring system.

6. Product Highlights:

low profile,small deflection
Made of stainless steel
Three directional
Mainly used for milling or grinding machine, rototic polishing and other industrial measuring system

Different applications for different size and accuracy could be made according to your own design.

www.bransensor.com

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
