Tension and Compression Sensor S Type Load Cell for Hook Scale (QH-31)
| Price: |
US $ 20-25/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
QH-31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
20~5000kg |
| Rated Output: |
2.0±0.004 |
| Accuracy: |
C3 |
| Working Temperature: |
-20~60 Centigrade |
| Cable Length: |
5 Meters(Standard) |
| Product Name: |
Tension and Compression S Type Load Cell for Hook |
Product Description

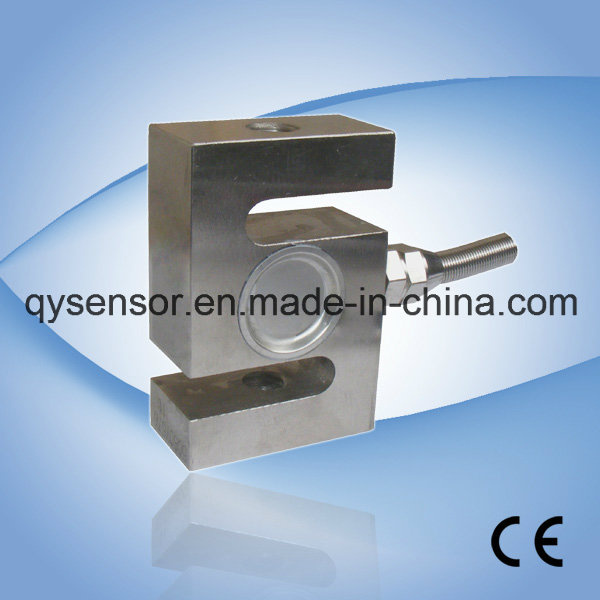

QH-31 Tension and Compression S Type Load Cell for Hook Scale oad cells
are available in the capacities from 20kg to 5000kg.
Alloy steel material with S beam style.
Silicon adhesive sealed inside. It is waterproof and anti-corrosion. So be suitable for all kinds of environment.
Tension and/or compression load.
Be suitable for electronic crane scale, hopper scale, mechanical conversion scale and other electronic
weighing devices.
Features:
Capacity :20 kg to 5000 kg
Defend grade: IP66 & IP68
High accuracy. Reliable performance.
Alloy steel or stainless steel.
Integral installation. Low profile.
Electrical connection and Dimensions:
Technical Specifications| Specifications: |
| capacity | Kg | 20,50,100,200,500,750,1000,2000,5000 |
| safe overload | %FS | 150 |
| ultimate overload | %FS | 200 |
| rated output | mV/V | 2.0 ± 0.004 |
| excitation voltage | Vdc | 9 ~ 12 |
| combined error | %FS | ± 0.03 | ± 0.02 |
| zero unbalance | %FS | ± 1.0 |
| non-linearity | %FS | ± 0.03 | ± 0.02 |
| hysteresis | %FS | ± 0.03 | ± 0.02 |
| repeatability | %FS | ± 0.02 | ± 0.02 |
| creep | %FS/30min | ± 0.03 | ± 0.02 |
| input resistance | Ω | 390± 20 | 580± 20 |
| output resistance | Ω | 351± 4 | 501± 4 |
| insulation resistance | M Ω | ≥ 5000 @ 100 Vdc |
| operating temperature range | ºC | -20 ~ +55 |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.02 | ±0.02 |
| temperature coefficient of ZERO | %FS/10ºC | ± 0.03 | ±0.02 |
Electrical connection:
Excitation+ green Excitation- yellow Signal+ white Signal- red
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:3 m
Cable diameter :5 mm
The cable length could be chose by customer's application.Packaging & Shipping- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
Our Services- We are committed to providing a high quality, and responsive services to all clients
- Detailed information, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packaging: well box packed and provide optimal freight for you reference.
- All products OEM available
Company InformationHan Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60
Contact details:Chloe ShuHanZhong QuanYuan Electronic Co.,Ltd.TEL: +86-916-2257989 https://cn.linkedin.com/in/qysensorhttp://www.qysensor.com
Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.
Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
