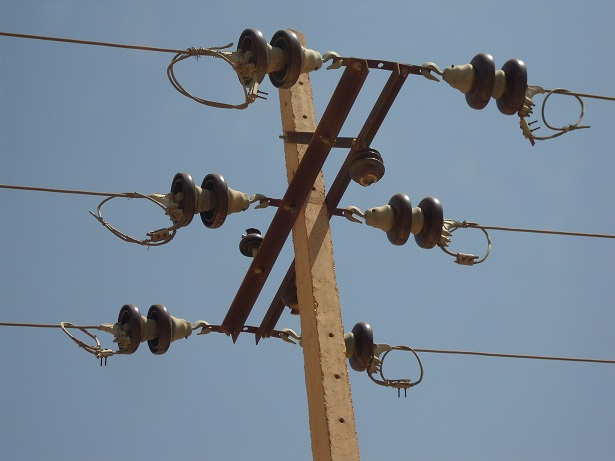

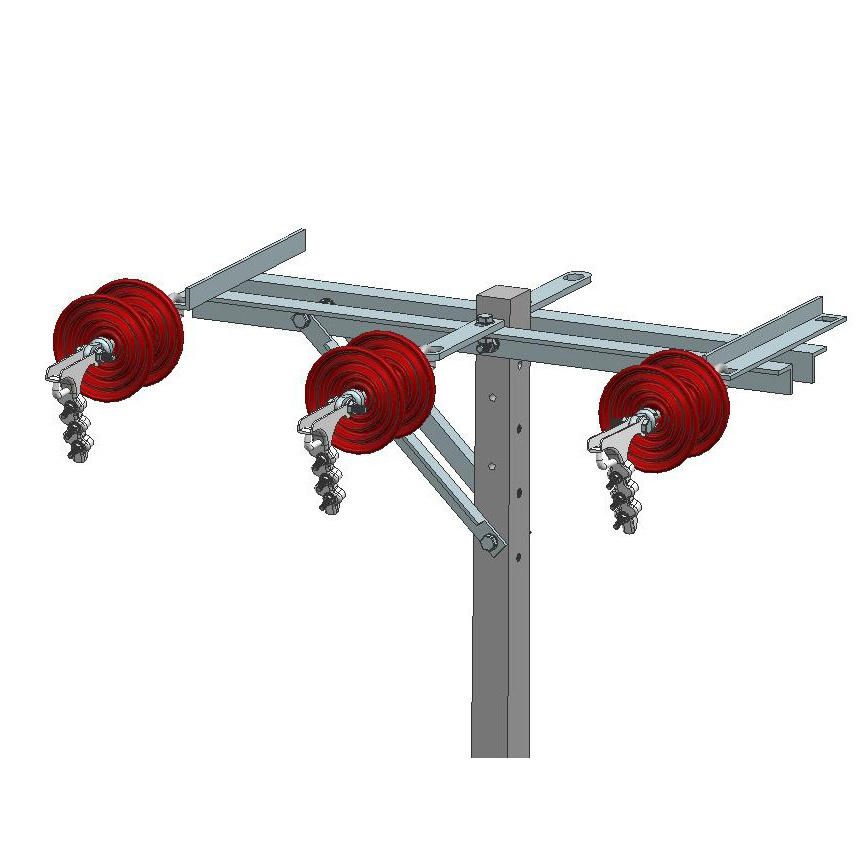

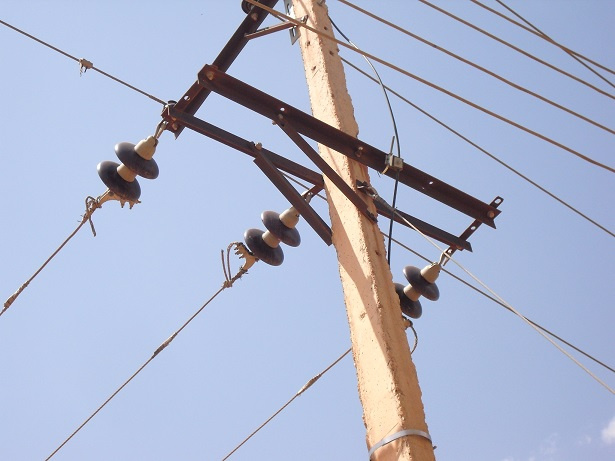

Tension Set for 11kv Overhead Lines
| Price: |
US $ 11/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
FXBU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Suspension Insulator |
| Material: |
Composite Polymer |
| Type: |
A Type Insulator |
| Application: |
High-temperature |
| Brand: |
Oei Power |
| Color: |
Grey |
| Certification: |
IEC IEEE |
Product Description
The Composite Insulators
The Composite Insulators comply with the latest editions of and amendments to, the standards/specification listed below: CSA CANADIAN STANDARDS ASSOCIATION G164-4 - Hot dip galvanizing of Irregular Shaped Articles CAN/CSA - Quality Assurance Program Categories 2299.3 ANSI - AMERICAN NATIONAL STANDARDS INSTITUTE C29.1 - American Standard Test Method For Electrical Power Insulators C29.7 - American Standard For Wet-processed Porcelain Insulators (High Voltage Line Post Type) Electrical Power Insulators 987-1985 - IEEE Guide For Application of Composite Insulators D750 - Recommended Practice for Operating Light and Weather Exposure Apparatus (Carbon Arc Type) For Artificial Weather Testing Of Rubber Compounds. D1499 - Recommended Practice For Exposure of Plastics. D2240 - Rubber Properties, Durometer Hardness D2565 - Recommended Practice For Operating Xenon-Arc Light And Water Exposure Apparatus Plastics.The weathershed of the Post Insulators shall be manufactured from either Hydrated Alumina Ethylene Propylene Copolymer (EPM) as the primary constituent or Silicone Elastomers. The weathershead shall be injection moulded and brought to final cure state in one continuous process to prevent internal undercure or surface overcure. Additionally, the weathershead shall provide hydrophobic surface, even after exposure to tropical marine environment, ultra violent rays and moisture.Core
The rod or the core is manufactured from Fibreglass, having 70-75 by weight of auxiliary aligned glass fibre bonded by an organic resin. The rod is either be cast or pultruded.The end fittings are have the following properties: i. are compressed onto the Fibreglass rod memberii. are not move relative to the central Fibreglass rod at applied loads equal to two times the rated Routine Test Load or maximum designed cantilever loadsiii. are attracted to the rod after completion of all external heat processes used to cure or bond component parts. The insulator are provided load limiting bases that will deform under longitudinal loading of more than 100% of the rated design cantilever load. Performance Characteristics The Polymeric Insulators are meet the under listed performance characteristics.
ITEM |
11kV |
33KV |
Dry Flashover Withstand |
90kV |
180kV |
Wet flashover withstand |
70kV |
165kV |
Positive Impulse Critical flashover |
145kV |
300kV |
Maximum Radio Interference Voltage |
Below 1micro volt |
Below 1 micro volt |
Design Tension Strength |
100kN |
100kN |
Residual Strength after Power Arc |
80kN |
80kN |
Mechanical Proof Test Load |
45kN |
45kN |
Maximum Sustained Load |
34kN |
34kN |
Design Torque Rating |
83 Nm |
83 Nm |
The insulator are suitable for accepting both aluminium and copper conductors having cross-sectional areas ranging from 35mm2 to 265mm2. The insulators are designed for mounting on the angle and channel crossarms specified in Specification E14 All exposed ferrous part shall be treated against corrosion. Treatment by hot dip galvanizing is preferable.
Our company is one of factory Of OEIpower, Local in No. 15, Tongbai, Industrial Zone, Nanyang City, Hean Province, China, OEIpower to provide complete solutions for the Energy sector, mainly power generation, transmission and distribution markets. OEIpower is able to lead turn-key projects and also cooperate in specific parts of engineering projects. Regarding products, OEIpower is creating a solid sales and distribution network in order to manage the main components involved in the energy sector and markets.
It is a professional Manufacturing. Meanwhile, it is specialized in power transmission and distribution products such as Insulators, Drop-out Fuse, Fuse link, Load Interrupter Air Switchs, Surge arrester, Outdoor Off-Load Isolator Switch Disconnector switch etc. We have won many orders for World markets, Like South Korea, Spain, Malaysia, Thailand, Yemen, etc.
Our most of the products have passed the type test performed by Electric Power lin Aeeseeory Quality Inspection Center of electric Power industry, such as Xi'an High Voltage Research Insitute. And IST off-load switch type IST-12KV/400A already passed CENTRAL POWER RESEARCH INSTITUTE HIGH-VOLTAGE LABORATORY India. Our 12KV 8KA Drop Out fuse already passed the ASTA testing in the year 2015.
Promise of After-sales Service
To ensure the quality of After-sales Service, We have established the After-sales Service Department, and compiled the process of after-sales service, We require service-man should passion, cordial, patient, careful, considerate and instant for customers. Our general service: After receive telephone, the local service-man direct to the site to solve the problem, to security reasonable interest of the customer. When finishing all the work. Service men must fill the bill of customers' feedback suggestion, and ask the customers' signature. Then deliver it to the After-sales Service Department as feedback information, then to the designing and exploiting department. Special condition: Directly send someone from company to dealing, Our products' guarantee days are two years. Within those days, Quality problems of causing by customers. We'll repair freely, Causing by customers using, operating and keeping un-properly, we'll repair permanently and charge properly. Out of guarantee days, we'll repair with charge (fee of component and repairing).
Main Technical Testing Equipment
No.
Name of checkout equipment
1
86-G Type impulse peak Voltage test equipment
2
MY-4KV Type voltage dependent resistor test equipment
3
MDA-30 Type DC parameter test equipment
4
Metal-oxide surge arrester bleeder current test equipment
5
500KV power frequency withstand voltage test equipment
6
HR-3 Type loop resistance test equipment
7
GKC-6 Type High-voltage switch mechanical properties test equipment
8
5A heavy current test equipment
9
YHN-8 Type auto power frequency withstand voltage console
10
CJV-800 Type impulse with stand voltage test equipment
11
CJI-1 Type impulse with stand current test equipment
12
JF-1 Type complementary Metal-oxide surge arrester instrument for measuring partial discharge
13
XR-2 Type power frequency test equipment
14
MD-1A Type Metal-oxide surge arrester electrification test equipment
15
JZ-800 Type AC/DC high voltage test equipment
16
XC -5/220 Type control box
