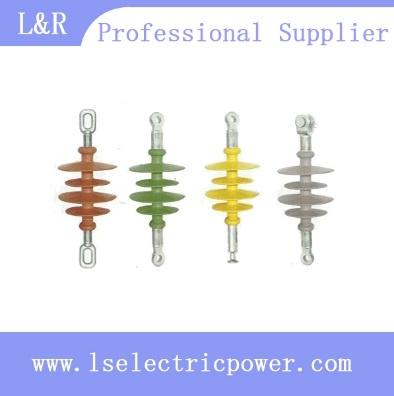

Tension Type Rod Suspension Composite Insulator (FNB4-1/70-XX)

Name: Tension Type Rod Suspension Composite Insulator (FNB4-1/70-XX)
Brand: all-electronics-online.com
SKU: 784948855
Availability: InStock
Rating: 4.6 (42 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FNB4-1/70-XX.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lead Time:	20days
ODM And OEM:	Accept
Size:	Any Size Can Be Ordered
Brand Name:	L&R or as Per Clients' Requirements
Application:	Low-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator
Color:	Red, Yellow, Green, Gray....

Product Description

Basic info.
Origin:Yueqing, Wenzhou, Zhejiang, China
Brand name:As per customers' requirements
Delivery:By sea, by air or by express
Packing:Clean poly bags plus cartons plus pallets or as customized

Technical specification

Model No.	Rated Voltage (kv)	Rated mechanical tensile load (kN)	Shed diameter*number (mm)	Height (mm)±10	Insulation distance (mm)	Minimum nominal creepage distance (mm)	Lightning full wave impulse withstand voltage (kV)	Power frequency wet withstand voltage 1 min kV
FNB4-1/70-XX	1~3	70	92*2	270	80	235	30	7
FNB4-6/70-XX	6	70	92*3	310	120	335	60	25
FNB4-10/70-XX	10	70	92*4	350	160	435	95	45
FNB4-15/70-XX	15	70	92*5	390	200	535	110	60
FNB4-20/70-XX	20	70	92*6	430	240	635	130	70
FNB4-24/70-XX	24	70	92*7	470	280	735	150	75
FNB4-28/70-XX	28	70	92*8	510	320	835	180	80
FNB4-33/70-XX	33	70	92*9	550	360	935	205	90
FNB4-35/70-XX	35	70	92*10	590	400	1035	230	95

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
