Terminal Block Spring Clamp Type

Terminal Block Spring Clamp Type
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: Western Union,Paypal
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

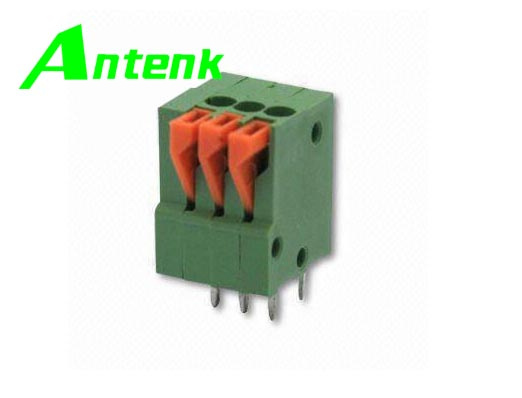

TERMINAL BLOCK SPRING CLAMP TYPE

Materials:

Pin header: Brass, tin-plated

Housing: PA66; UL94V-0

Electrical:

Rated voltage: 150V

Rated current: 2A

Contact resistance: 20m Ohms

Insulation resistance: 5, 000M Ohms/1, 000V

Withstand voltage: AC 1, 500V/1min

Wire range: 26 to 20AWG, 1.5mm2

Mechanical:

Temperature range: -40 to +105 degrees Celsius

Maximum soldering: +250 degrees Celsius, 5 seconds

Strip length: 11mm.
Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
