Terminal Block ( TC)

Name: Terminal Block ( TC)
Brand: all-electronics-online.com
SKU: 651981155
Availability: InStock
Rating: 4.6 (20 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	TC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Matreial:	PA
Voltage:	250-450V
Color:	Grey and Blue Color as Standard
Application:	Communication
Environmental Protection:	General
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Winding Connection

Product Description

Product Description:

TC Terminal Block
Matreial: PA Brass,Screw is Brass.
Voltage: 250-450V
Color: Grey and blue color as standard.

Item No.	Cable Size	L	W	H1	H2	ø	E	Screw Size

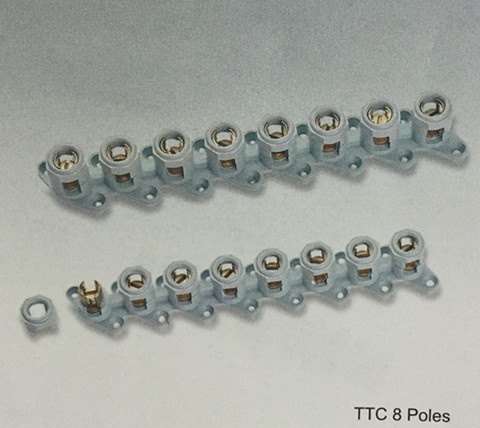

TTC-01	16mm²	173	26.4	24	11.5	8×5	21	M8
TTC-02	25mm²	206	31	27.5	12.7	9×6	25	M9
TTC-03	35mm²	250	41.5	33	16.8	12×8	30	M12
TTC-04	50mm²	260	41.5	35.5	17.2	14×8.5	31.5	M14
TTC-05	70mm²	272	42	38	21	16×9	33	M14

Item No.	Cable Size	L	W	H1	H2	ø	E	Screw Size

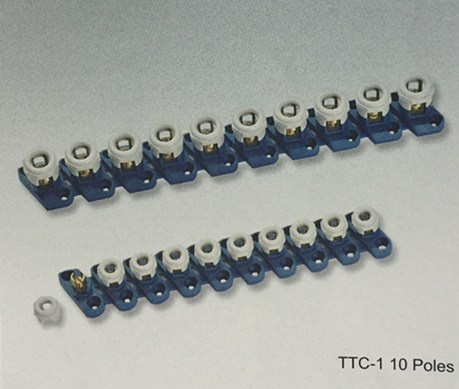

TTC-1-01	6mm²	162	20.3	21	10.4	6×3	15.5	M5
TTC-1-02	10mm²	198.5	22	23.7	11.7	8.5×4	19.5	M8
TTC-1-03	16mm²	211	23.5	26	13.4	10×5	20.5	M9
TTC-1-04	25mm²	222	25	29.2	14.2	11×7	21.3	M10
TTC-1-05	35mm²	260	28.5	33.5	18	14×8	25	M12
