Utility Electrical Co., Ltd. >> Terminal Blocks with Stainless Steel Spring

Terminal Blocks with Stainless Steel Spring

Terminal Blocks with Stainless Steel Spring
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JUT3-2.5/1-2
IEC: 60947-7-1
AWG: 24-12
Rigid Cable: 0.2-4
Soft Rigid: 0.2-2.5
Voltage: 800V
Application: Transmission of Electrical Signals
Type: DIN Rail Screw Terminal Blocks
Material: Red Copper
Certification: TUV Ce CQC
Brand: Utl

Product Description

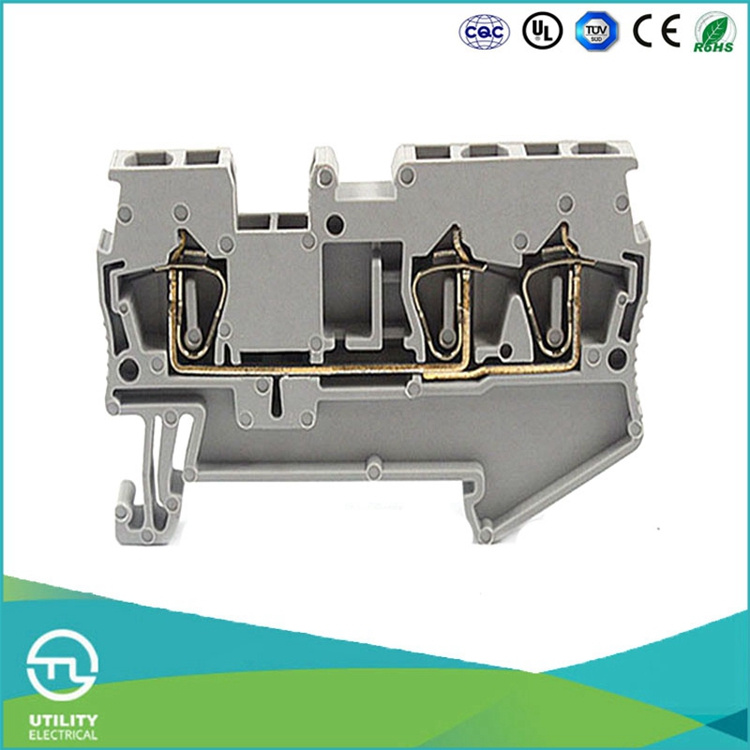

UTL Ideal Standard Grey Plastic Electrical MDF Terminal Blocks With Stainless Steel Spring



Model No.JUT3-2.5/1-2
Item name JUT3 Spring Type Terminal Series
ColorGrey as photo,or OEM Color
Size TH:5.2 W:60.5 H:36.5
TerminalReturn-puling type spring termial,installed on tracks NS35-U type
Rigid/soft Cable0.2-4.0mm2/0.2-2.5mm2
Conductor Size24-12AWG
Bridging liaison componentCould form bridging by jumping some terminal position
IVoltage rating/Current rating800V/24A
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/VDE/RoHS/SGS/CCC/CQC  approved standard
Logo      Customized logo are available as request
Design ability        We can supply sample,OEM&ODM is welcome

Features:

Three-lead return-puling type spring terrninal owns three wiring potentials with the sarne electrical potential, using JUT3 cornbination terminal could conduct perfect distribution of electrical potential or input signals.Three-lead return-puling type terminal owns two bridging hole in center section, through which bridging could of any form be realized with adjacent terrninal
The end plate mark strip and the similar through terminal are universally used
Three-lead return-puling type spring landing terminal owns the sarne outline and thickness as through terrninal with sarne rated section area, the yellow/green mark makes it clearer for being distinguished
UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
