Terminal Lug FDD Types Ring Cable Terminal Connector

Name: Terminal Lug FDD Types Ring Cable Terminal Connector
Brand: all-electronics-online.com
SKU: 720913512
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FDD 1.25-110(5)(8)
Thickness:	0.3mm
Current:	10A
Wire Size:	0.5-1.5mm2
Terminal Material:	Copper
Material:	Copper
Application:	Transmission of Electrical Signals
Type:	Lug
Species:	Lug
Shape:	Pipe-Shape Header
Certification:	Ce
Brand:	Utl

Product Description

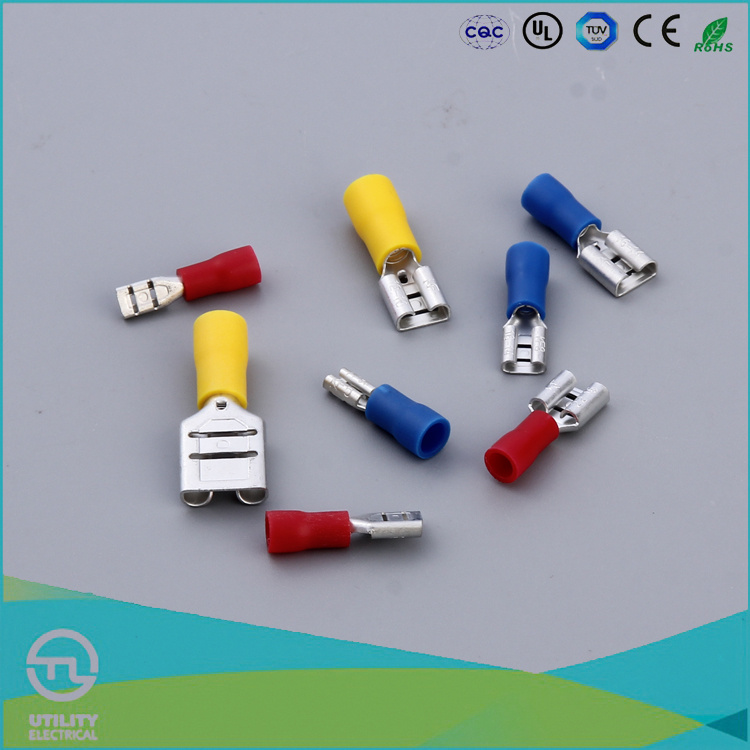

UTL China Supplier Industrial Terminal Lug FDD Types Ring Cable Terminal Connector

Model No.	FDD 1.25-110(5)(8)
Item name	Female pre-insulated cable lugs
Material	Terminal : Copper, Insulate : PA66
Size	B:3.8mm D:3.8mm d:1.7mm L: 19mm W:5mm H:10mm
Thinckness of terminal	0.3mm
Name Tab(mm)	0.5X2.8MM
Wire section	0.5-1.5mm2
Max current	10A
Color	Red Blue Yellow or OEM colo
Payment term	A.Below US$300,western,paypal accepted B.Above US$300,bank account
Certificate	TUV/CE/UL/RoHS/SGS/CQC approved standard

Item No.	Name Tab	Dimensions (mm)					Terminal Thinckness	Colour
Item No.	mm	B	Dφ	dφ	L	M	(mm)	Colour
FDD 1.25-110(5)	0.5×2.8	3.8	3.8	1.7	19.0	10.0	0.3	Red
FDD 1.25-110(8)	0.8×2.8	3.8	3.8	1.7	19.0	10.0	0.3
FDD 1.25-187(5)	0.5×4.75	5.6	3.8	1.7	19.0	10.0	0.35
FDD 1.25-187(8)	0.8×4.75	5.6	3.8	1.7	19.0	10.0	0.35
FDD 1.25-205	0.5×5.2	6.5	3.8	1.7	19.0	10.0	0.35
FDD 1.25-250	0.8×6.35	7.4	3.8	1.7	19.0	10.0	0.4
FDD 2-110(5)	0.5×2.8	3.8	4.3	2.3	19.0	10.0	0.3	Blue
FDD 2-110(8)	0.8×2.8	3.8	4.3	2.3	19.0	10.0	0.3
FDD 2-187(5)	0.5×4.75	5.6	4.3	2.3	19.0	10.0	0.35
FDD 2-187(8)	0.8×4.75	5.6	4.3	2.3	19.0	10.0	0.35
FDD 2-205	0.5×5.2	6.5	4.3	2.3	19.0	10.0	0.35
FDD 2-250	0.8×6.35	7.4	4.3	2.3	19.0	10.0	0.4
FDD 2-312	0.8×8.0	9.0	4.3	2.3	19.0	10.0	0.4
FDD 5.5-250	0.8×6.35	7.4	5.7	3.4	25.0	13.0	0.4	Yellow
FDD 5.5-375	1.2×9.4	10.9	5.7	3.4	29.6	13.5	0.5	Yellow

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
