Terminal Lug Types Copper Cable Termination Lug

Name: Terminal Lug Types Copper Cable Termination Lug
Brand: all-electronics-online.com
SKU: 720913672
Availability: InStock
Rating: 5 (64 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MDD 1.25-110(5)(8)
Thickness:	0.5mm
Current:	10A
Wire Size:	0.5-1.5mm2
Terminal Material:	Copper
Material:	Copper
Application:	Transmission of Electrical Signals
Type:	Lug
Species:	Lug
Shape:	Pipe-Shape Header
Certification:	Ce
Brand:	Utl

Product Description

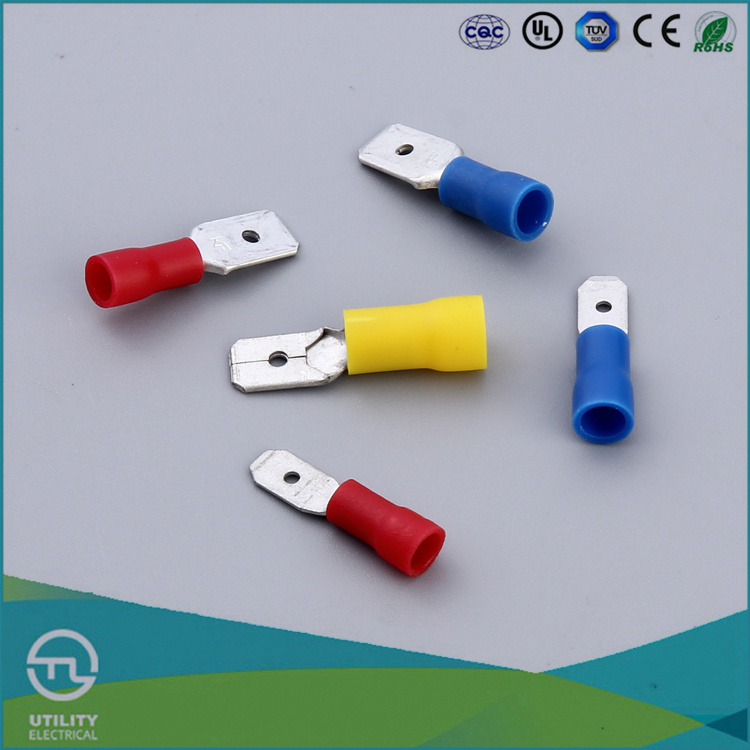

UTL Best Selling Products MDD Industrial Terminal Lug Types Copper Cable Termination Lug

Model No.	MDD 1.25-110(5)(8)
Item name	Female male pre-insulated cable lugs
Material	Terminal : Copper, Insulate : PA66
Size	B:2.8mm Dφ:4.3mm dφ:1.7mm L: 17.7mm H:10mm
Thinckness of terminal	0.5mm
Name Tab(mm)	0.5X2.8MM
Wire section	0.5-1.5mm2
Max current	10A
Color	Red Blue Yellow or OEM color
Payment term	A.Below US$300,western,paypal accepted B.Above US$300,bank account
Certificate	TUV/CE/UL/RoHS/SGS/CQC approved standard

ITEM NO.	Name Tab(mm)	Thinness	Dimension(mm)					Color	Illustration
ITEM NO.	Name Tab(mm)	Thinness	B	Dφ	dφ	L	H	Color	Illustration
MDD 1.25-110(5)	0.5*2.8	0.5	2.8	4.3	1.7	17.7	10.0	Red	Imax=10 Conductor cross-section:0.5-1.5mm2
MDD 1.25-110(8)	0.8*2.8	0.8	2.8	4.3	1.7	17.7
MDD 1.25-187(5)	0.5*4.75	0.5	4.75	4.3	1.7	20.0
MDD 1.25-187(8)	0.8*4.75	0.8	4.75	4.3	1.7	20.0
MDD 1.25-250	0.8*6.35	0.4*2	6.35	4.3	1.7	21.0
MDD 2-110(5)	0.5*2.8	0.5	2.8	4.3	2.3	17.7	10.0	Blue	Imax=15A Conductor cross-section:1.5-2.5mm2
MDD 2-110(8)	0.8*2.8	0.8	2.8	4.3	2.3	17.7
MDD 2-187(5)	0.5*4.75	0.5	4.75	4.3	2.3	20.0
MDD 2-187(8)	0.8*4.75	0.8	4.75	4.3	2.3	20.0
MDD 2-250	0.8*6.35	0.4*2	6.35	4.3	2.3	21.0
MDD 5.5-187	0.5*4.75	0.5	4.75	5.7	3.4	23.0	13.0	Yellow	Imax=24A Conductor cross-section:4-6mm2
MDD 5.5-250	0.8*6.35	0.4*2	6.35	5.7	3.4	25.0	13.0	Yellow	Imax=24A Conductor cross-section:4-6mm2

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
