Terminal Lugs Ring Type, Flat Terminal Lug

Name: Terminal Lugs Ring Type, Flat Terminal Lug
Brand: all-electronics-online.com
SKU: 785004715
Availability: InStock
Rating: 4.3 (118 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Tgdtl-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Tgdtl-2
Name:	Cable Lugs
Shapes:	Round
Materials:	T2 Copper and Aluminium
Application:	Transmission of Electrical Signals
Material:	Copper&Aluminium
Brand:	Tengen

Product Description

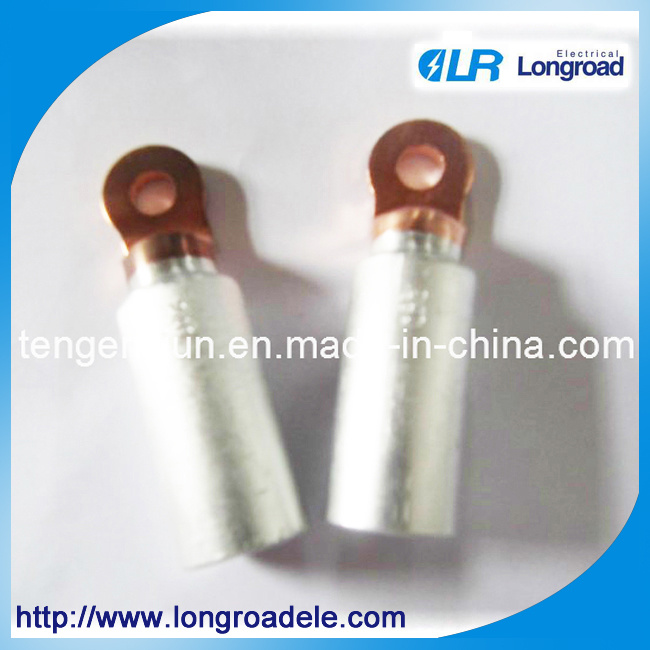

TG-DTL-2 series AI-Cu power cable lugs are suitable for transition joint of distribution device aluminum core cable and electric equipment. DL aluminium is used for aluminium terminal linking of aluminium core cable and electric equipment.
+Materials: T2 Copper and Aluminium.
+Shape: Round
Customer's requirement welcome.

Psrt No.	Dimensions(mm)
	AL					CU
	A	B	G	C	E	F(^F)	D	P	Q	L
TGDTL-2-16	5.5	16±0.09	12.0	24	47.5	43(2.5)	10.5	4.5	11	85
TGDTL-2-25	6.5	16±0.09	12.0	24	47.5	43(2.5)	10.5	4.5	11	85
TGDTL-2-35	8.0	16±0.09	12.0	25	47.5	43(2.5)	12.8	5.0	11	90
TGDTL-2-50	9.0	20±0.11	14.8	25	47.5	43(2.5)	12.8	5.0	13	90
TGDTL-2-70	11.0	20±0.11	14.8	25	47.5	43(2.5)	12.8	5.0	13	90
TGDTL-2-95	12.5	20±0.11	14.8	25	47.5	43(2.5)	12.8	5.0	13	90
TGDTL-2-120	13.7	25±0.11	18.8	30	64.0	59(3.0)	12.8	6.0	15	115
TGDTL-2-150	15.5	25±0.11	18.8	30	64.0	59(3.0)	12.8	6.0	15	115
TGDTL-2-185	17.0	32±0.11	23.8	30	64.0	59(3.0)	12.8	7.0	19	115
TGDTL-2-240	19.5	32±0.11	23.8	35	64.0	59(3.0)	12.8	7.0	19	115
TGDTL-2-300	23.3	34±0.13	22.5	35	65.0	72(3.0)	16.5	7.0	21	137
TGDTL-2-300L	23.3	40±0.13	28.0	36	100.0	93(3.5)	16.5	7.0	23	160
TGDTL-2-400	26.0	40±0.13	28.0	36	100.0	93(3.5)	16.5	7.0	27	160
TGDTL-2-500	29.1	47±0.4	36.8	60×60	101.0	94(3.5)	16.5	10.0	27	200
TGDTL-2-630	32.5	47±0.4	36.8	60×60	101.0	94(3.5)	16.5	10.0	27	200
Tolcrance	±0.12		-0.6to0	0to+1	-1to0	-1to0	±0.3	±0.3	±2	-10to+5
