Name: Terminal Magnetic Contacts UL Listed Window/Door Contact
Brand: all-electronics-online.com
SKU: 699034192
Availability: InStock
Rating: 4.4 (98 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BR-1021T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire:	No Wire, with Terminal
Color:	White Brown Grey for Your Selection
Certificate:	UL Rosh ISO CE
Standard:	Standard
Certification:	CE
Wires:	Two-Wires

Product Description

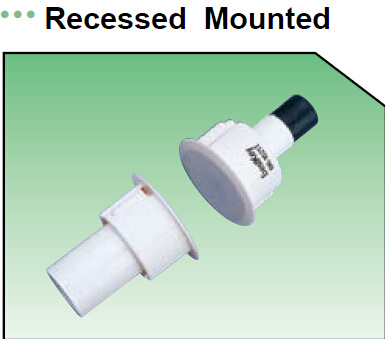

BR-1021T recessed mounted magnetic contact switch door sensor with terminal

* 3/4" diameter press to fit
* Suitable for steel door install
* Self-locking
* Swith and Magnet available seperately
* Resistor or Diode available on request
* Colors: White, Brown, Grey

For more information,pls contact us freely!

Part Number	Loop Type	Reed Form	Closed Gap[Inch(mm)]	Departure Gap[Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current(A)
BR-1021T	Closed	N/O	1/2+(15)	0.6(17)	0.150	7.5	100	0.4
BR1021TWG	Closed	N/O	3/4(19)		0.150	7.5	100	0.4
BR1021TA	OPEN	N/C	1/2(13)		0.150	3	3	0.2

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
