EZCON Telecom Technology(Changzhou)Co., Ltd. >> Test&Measurement Cable -SMA&N Cable

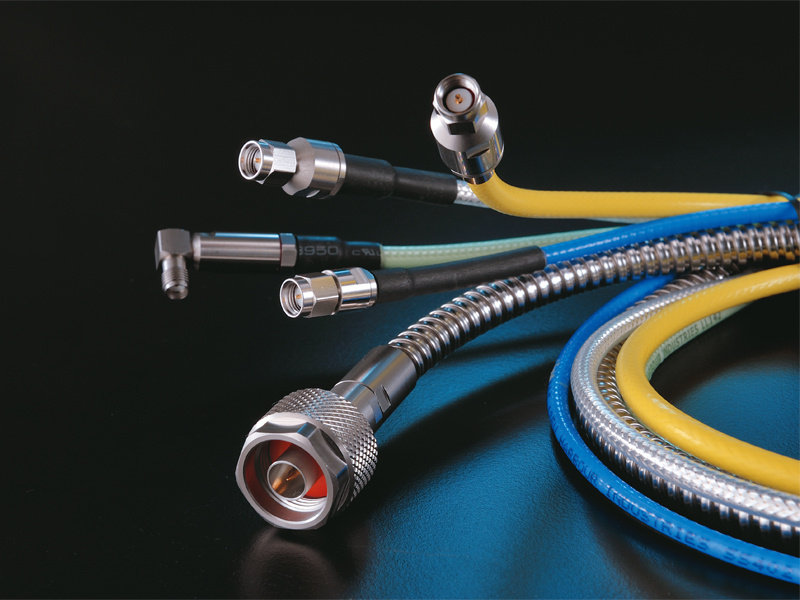

Test&Measurement Cable -SMA&N Cable

Test&Measurement Cable -SMA&N Cable
Price: US $ 200PCS
Trade Terms: FOB
Min Order: 100PCS
Pay Type: T/T,D/P
Prod Model: SMA&N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS: Mating Cycles
Certification: RoHS
Application: Coaxial Cable
Conductor Material: Copper
Cover Material: PVC
Type: Test Cable
Model: SMA&N
Brand: Ezcon

Product Description

Features:
N and SMA series.
Phase matching (2 picoseconds).
Various and customized selections of cables.
High durability and reliability.
Lower return loss and insertion loss.
Shorter lead time.
Product Specifications

Item
Cable TypeSMAN
1Impedance (Nominal) (Ohms)

2Maximum Frequency (GHz)26.518
3Overall Diameter (mm)5.597.37
4Typical VSWR1.21.2
5Typical Insertion Loss (dB)1.34/M0.87/M
6Typical Phase Stability (degree)N/AN/A
7Shielding Effectiveness (dB through 18 GHz)100dB100dB
8Time Delay (Nominal) (ns/m)3.983.94
9Velocity of Propagation (%)8383
10Minimum Bend Radius (mm)31.7544.45
11Temperature Range(-55°C to 125°C)

EZCON Telecom Technology (Changzhou) Co., Ltd. Was formally founded on January 19, 2013, in Changzhou City, Jiangsu Province, Peoples Republic of China. EZCON is a product and solution provider, the company provide high quality, high performance and low cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors and high end test/calibration products. The company has the capacity of product design, engineering service, low cost production/sourcing, assembly, and testing. EZCON combines the advantages of low cost production in China with a high level of engineering expertise, service, and quality. EZCON Telecom Technology Co. Is a US-China joint venture. EZCON CEO, Dr. Zemin Liu is a recognized RF connector industry expert. Dr. Liu developed and designed the industry's most advanced EZCON series connector. He has over 20 years work experience working in the United States, Sweden, and China for world-renowned companies (Commscope, Tyco, Atlas Copco, Amphenol etc). The company management team consists of top technical experts and business development professionals in the telecom industries. EZCON Telecom Technology Co. LTDA.

Leading supplier for high quality test products (frequency range DC-100 GHz) and RF cable assemblies including test cables, adaptors, and calibration kits etc for R&D and production test applications as well as RF connectors and cable assemblies for wireless base stations. Our customers includes world-class telecom equipment suppliers as well as operators such as Commscope, Amphenol, AT&T, Huawei, Synergy Telecom (India) etc.
