| Copper Thickness: |
1oz-4oz |
| Board Thickness: |
0.1mm~0.2mm |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Surface Finishing: |
Immersion Gold,Immersion Tin,OS |
| Lead Free Technology: |
Yes |
| Engineering Support: |
Support |
| PCB Testing: |
E-Testing |
| Impedance Control: |
Yes |
| Color Of Silk-Screen: |
White,Black,Silver |
| Coler Of Solder Mask: |
Green, Black, Blue, White, Y |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Complex |
| Flame Retardant Properties: |
V0 |
Product Description
Welcome to china visit our company wesbite !

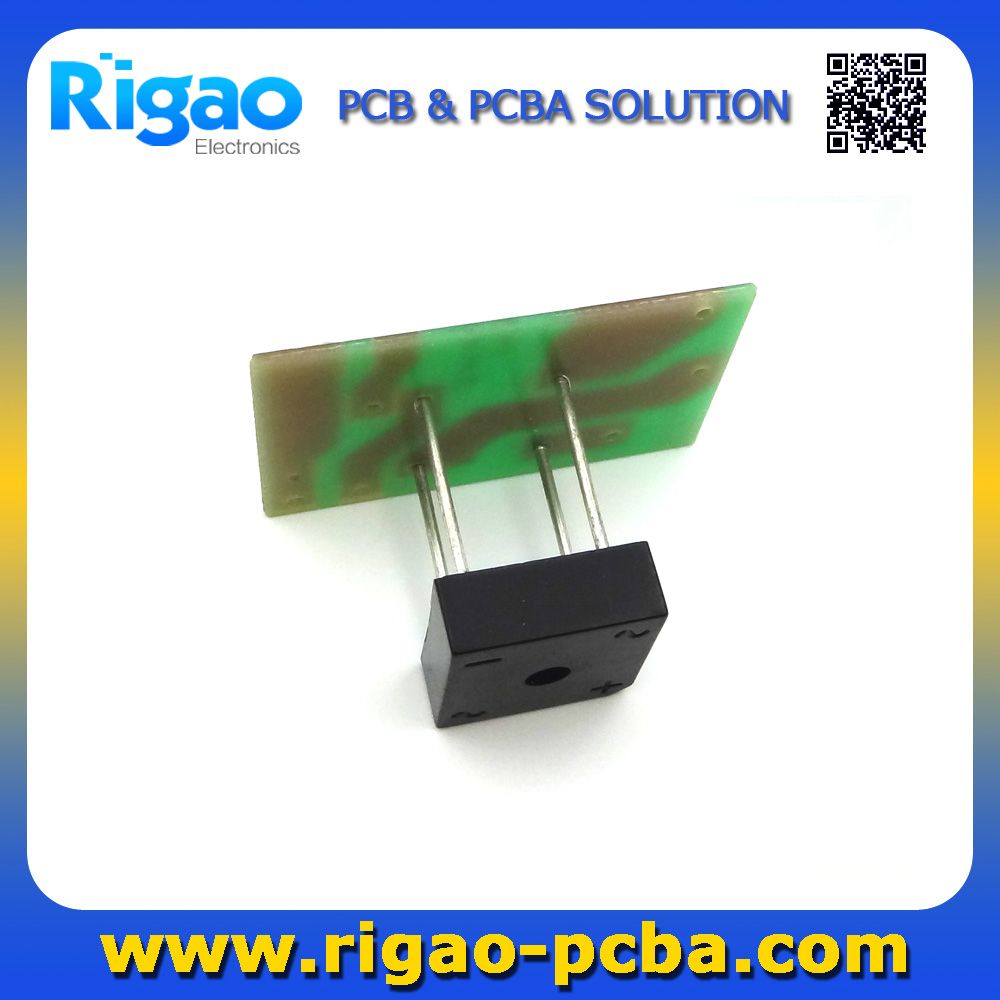

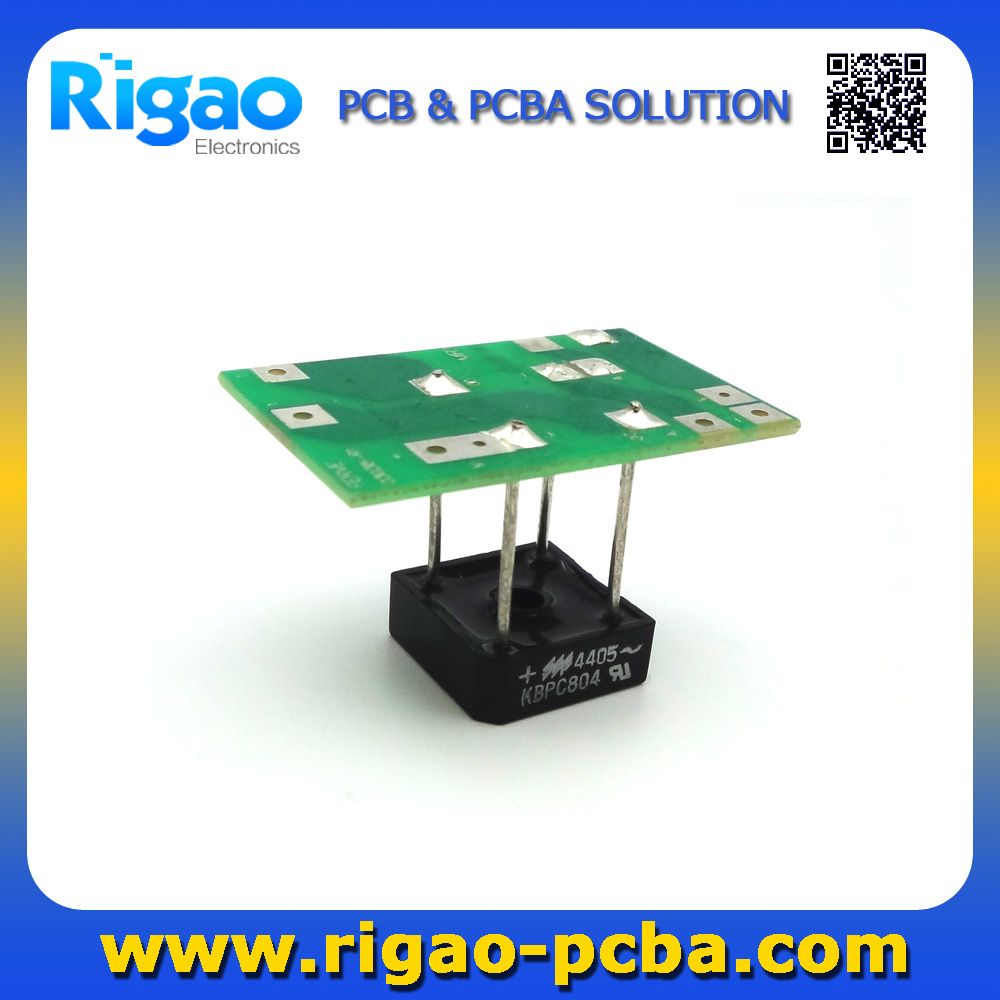

testing a circuit board fr4 double sided pcb supplier from Shenzhen
One-stop EMS service-----Your reliable PCB and PCB Assembly Supplier
1.Company profile:
Founded in 2008, Shenzhen Rigao Electronics is privately held Shenzhen Corporation,dedicated in providing electronic engineering and manufacturing services.
After several years of development,Rigao has become an international provider of
solutions in three principle areas: Printed circuit board procurement, PCB assembly
procurement and component procurement and Flexible flat cable, FPC flat cable connectors
As an experienced PCB and PCBA manufacturer,we provide prototypes,small volume
projects, medium volume projects and large volume projects. We are able to
maintain a complete service system with comprehensive technical backup as well
as cost advantage and scheduled delivery.
Our main services include offering:
Rigid PCB (up to 22 Layers),
Flexible PCB/FPC (1~6 Layers),
Rigid-Flex (2~10 Layers),
Aluminum-based PCB (1~4 Layers),
High Density Interconnection/HDI PCB,
High frequency material PCB
Assembly Services
Components purchasing
Our manufacturing and quality control processes are ISO 9001:2000 certified and
conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards.
All our PCB/PCBA are UL certified and RoHS compliant.
1.Detailed Specification of PCB Manufacturing
| PCB Capability: | |
| 1 | Layers | 1 ~ 22 layers |
| 2 | Material | FR4, High Tg FR4, Halogen Free, Isola, Rogers, Aluminium |
| 3 | Finished Board Thickness | 0.2mm ~ 7.0mm |
| 4 | Copper Thickness | 1/3oz ~ 7oz |
| 5 | Surface Finishing | HASL, Lead Free HAL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, Carbon |
| 6 | Min. Trace Width/Space | 3mil |
| 7 | Min. Finish Hole Size | 0.1mm |
| 8 | Hole tolerance | PTH:±0.076mm, NTPH:±0.05mm |
| 9 | Soldermask Color | Green, White, Black, Red, Yellow, Blue, |
| 10 | Silkscreen Color | White, Black, Yellow, Blue |
| 11 | Impedance Control | +/-10% |
| 12 | Profiling Punching | Routing, V-CUT, Chamfer |
| 13 | Special holes | Blind/Buried holes, Countersunk holes |
| 14 | Reference Standard | IPC-A-600G Class 2, Class 3 |
| 15 | Certificate | UL, ISO9001, ROHS, SGS |
| 16 | Package | Vaccum & Carton |
| | PCB Assembly Capability: | |
| 1 | Min. IC Pitch | 0.30mm |
| 2 | Foot Pin | SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA |
| 3 | Min. Chip Placement | 01005 |
| 4 | Max. PCB Size | 410 x 600mm |
| 5 | Min. PCB Thickness | 0.35mm |
| 6 | Maximum BGA Size | 74 x 74mm |
| 7 | BGA Ball Pitch | 1mm ~ 3mm |
| 8 | BGA Ball Diameter | 0.4mm ~ 1mm |
| 9 | QFP Lead Pitch | 0.38mm ~ 2.54mm |
| 10 | Package | Anti-static Bubble Bag & Carton |
2.Detailed Terms for PCB Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us3)Test method for PCBA

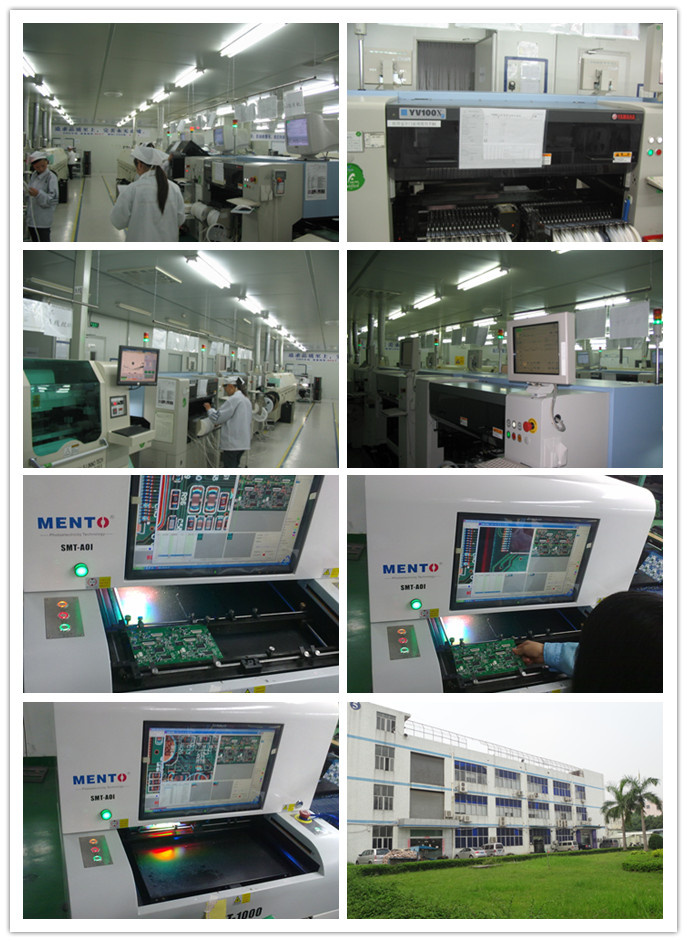

3.View of Rigao Factory
Why choose us?
Our manufacturing and quality control processes are ISO 9001:2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best."
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, " To be the most reliable supplier of PCB and PCBA."
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Our Services:
We can provide the following services: Fully Electronic Manufacturing Services(EMS):
1. PCB Assembly: SMT, THT/DIP, BGA, COB soldering.
2. PCB Manufacture: 1-64 layers, Buried & Blind via PCB, Imdepence PCB, Highfrequency PCB, FR-4, Flexible PCB, Flex-rigid PCB, Aluminium PCB.
3. PCBA Testing Jigs: PMMA, Automated & Manual Tooling.
4. Design: we need a idea or schematic diagram for PCB & PCBA design.
5. Copy & Clone: PCB and PCBA copy, we can provide you gerber file and BOM file after we done. Welcome all kindly of pcb and pcb assembly business for inquiry, we will feedback to you soon.
If you are interested in our products, pls feel free to contact me.
Thank you.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
