Tetrafluoroetheylene-Ethylene Copolymer ETFE Insulated Wire

Tetrafluoroetheylene-Ethylene Copolymer ETFE Insulated Wire
Price: US $ 0.05-1/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Meter
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulator Material: Tetrafluoroetheylene-Ethylene Copolymer
Temperature: 180 Centidegree
Type: Insulated
Conductor Type: Stranded
Application: Heating
Certification: RoHS
Conductor Material: Tinned Copper
Insulation Material: ETFE
Range Of Application: Flame Resistant
Brand: Werle

Product Description

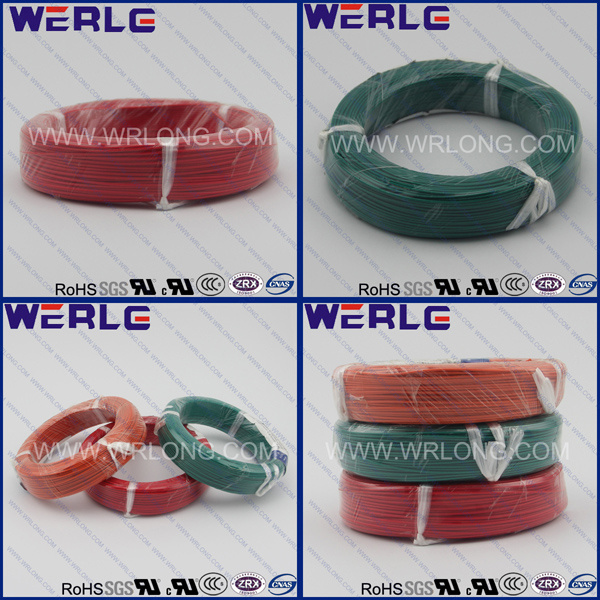

Tetrafluoroetheylene-ethylene copolymer ETFE insulated wire

Working temperature: -190ºC~ +180ºC, melting temperature 267ºC
Features: ETFE wire can keep the strength and elongation within the temperature of -200ºC~ +180ºC, this is better than PTFE and FEP. Its creep resistance in high temperature and shock resistance in low temperature are both superior to PTFE wire. It also has excellent cut resistance, chemical resistance, atmospheric aging resistance, and radiation resistance. Its cost is relative low.
Application fields: Instrumentation, Aerospace, Transformer, Inductive coil, machine wiring, Household appliances, Lighting, Motor lead wire, Electronic apparatus, etc.


ConductorOver
Diamter
 mm
Packing
mt/coils
Nominal
section
mm2
Conductor
Construction
No./mm
0.127/0.150.79500
0.207/0.200.97500
0.307/0.231.10500
0.3519/0.151.15500
0.5019/0.181.32500
0.7519/0.231.59200
1.0019/0.261.78200
1.2019/0.281.88200
1.3519/0.302.00200
1.5019/0.322.08200
2.0019/0.372.34200
2.5019/0.412.55200
3.0019/0.452.81100
4.0037/0.373.13100
6.0037/0.453.72100
10.0084/0.395.80100
16.00126/0.397.00100
20.00126/0.408.00100
25.00196/0.408.80100

ZHEJIANG WRLONG HIGH TEMPERATURE WIRE & CABLE Co., Ltd is a modernized enterprise which has specialized in high-temperature wire and cable for many years. It locates in the biggest production base of low-voltage appliance in China_YUEQING CITY, ZHEJIANG PROVINCE and it is next to OUJIANG rivers whose throughput is beyond thousands of ton every day as well. It is obvious that its transportation or traffic is very convenient and expeditious.

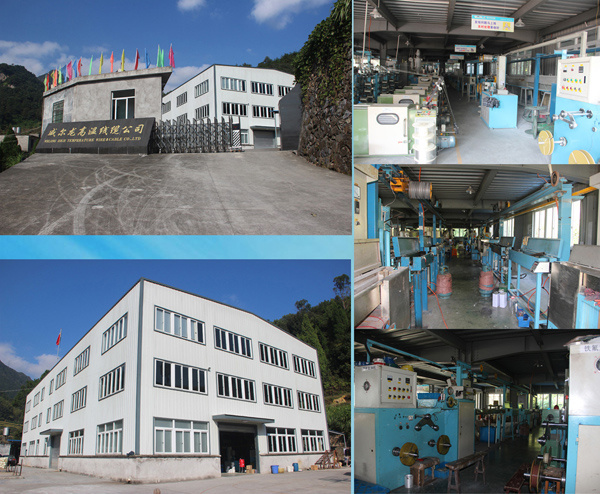

Our company owns the most advanced production equipment in China at present and we have imported the direct inverter microcomputer-controlled production line device from England. It has all sorts of detection device, abundant funds and trained professionally technicians as well.

Our leading products contain the teflon wire and cable which is used in Aerospace and Astronautics and high - temperature wire and cable which contains the fluoropolymers. Its types have AF46-200, AFK-250, AFPF-200, KFFR-250 and so on. Our company also produce high-temperature precise compensating conductor and its types are KX, KC, BC, SC, EX, IX, TX, NX, NC, EX and so on.

Our products have passed the certification of ISO9001-200, CCC, RoHS, UL and other test reports for the products from relevant organizations or institutions with the persistent efforts of all of the staff in WERLE and the products can find a ready market all over the world.

Our company sticks to regard the technology as guide, quality in pursuit of development as management ideas, quality create famous brands as tenet and thinks highly of quality management of the products in order to realize the integration of production, detection, selling and service and internationalization of the markets.

Society developping and make progresses gradually, WERLE strives with pressure, explore with urgence, struggle with blueprint and contend with smile for better future with the new and old clients together!
