Tgf360 2p 4p 220V 400V Residual Current Circuit Breaker
| Price: |
US $ 4.8-5.2/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Guarantee Period: |
2 Year |
| Leakage Action Time: |
<0.1 |
| Leakage Acting Current: |
10mA,30mA,100m |
| Rated Current(a): |
16A,25A,32A,40A,63A |
| Leakage Dead Current(Ma): |
15/50 |
| Class: |
a,B |
| Device Width: |
35mm/70mm |
| Place Of Origin: |
Zhejiang, China (Mainl |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Poles Number: |
2 |
| Certification: |
CCC |
| Structure: |
RCCB |
Product Description

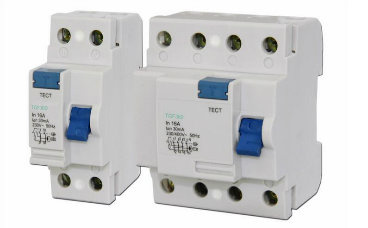

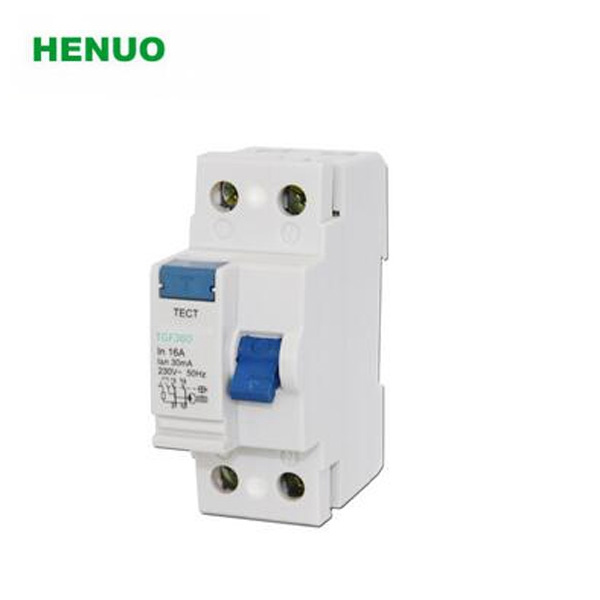

F360 2P/4P AC 220V/400V 50HZ residual current circuit breaker
TGF360 residual current circuit breaker 2P miniature circuit breakerwithout over current protection conforms to the standards of GB16916.1, IEC1008, BS4293 etc. It is used in the circuits of AC 50~60Hz, single phase 230V(220V), three phases 400V (380V) in industrial & mining enterprises, commercial buildings and housing for protection of personal electric shock hazard and electric equipment and for unfrequent switchover of
circuits under normal conditions.
Number of Poles: 2P
Rated Current (A): 16, 20, 25, 32, 40, 50, 63, 80, 100
Rated Residual Operating Current (mA): 10, 30, 100, 300, 500
Rated Residual Non-operation Current (mA): ≤0.5
Rated Voltage (V): AC 230/240
Standrd: IEC1008, GB 16916, BS EN61008
Rated residual non-operating current(Ino): 0.51n
Ressidual current off-time: ≤ 0.1s
Minimum value of rated making and breaking capacity(Im): 500A
Rated conditional short-circuit current(Inc): In=25, 40A Inc=1500A In=63A Inc=3000A

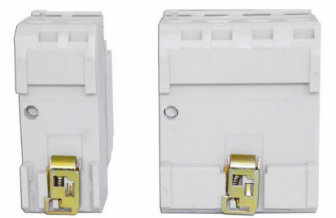

Installation: On symmetrical DIN rail
Type
| F360
|
Number of poles
| 2P,4P
|
Rated Current(In)
| 25,32,40,63A
|
Rated residual operating current(In)
| 10,30,100,300,500mA
|
Rated Voltage(Un)
| AC 230(240) / 400(415)V
|
Residual operating current scope
| 0.5In~In
|
Residual current off-time
| ≤0.3s
|
Type
| A or AC
|
Ultimate short-circuit breaking capacity (Inc)
| 6000A
|
Endurance
| ≥4000
|
Terminal protection
| IP20
|
Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
