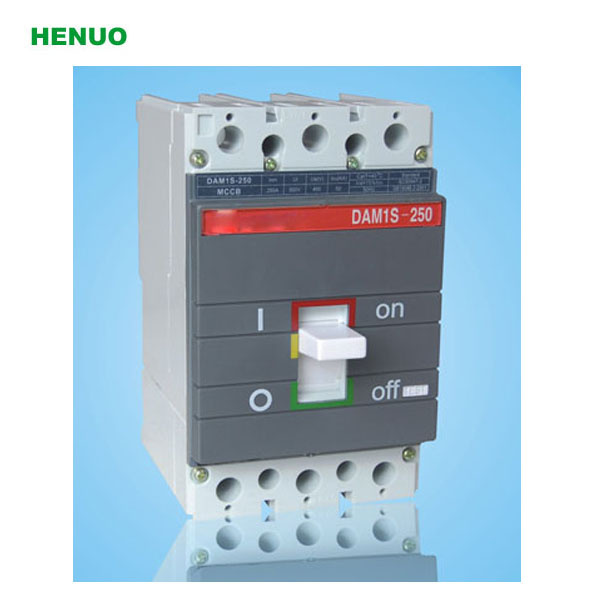

Tgm1 Good Price Moulded Case Circuit Breaker MCCB
| Price: |
US $ 25-26.8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
M1 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
MCCB Tgm1 |
| Rated Voltage: |
380V MCCB |
| Rated Current: |
200A MCCB |
| Material: |
Frame Plastic Parts with Flam |
| Frequency: |
50/60Hz Moulded Case Circuit |
| Current Range: |
16A,20A,32A,40A,50A,63A, |
| Place Of Origin: |
Zhejiang, China |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CE |
Product Description
Specifications
TGM1 mould case circuit breaker
Good price and high quality mccb
Good service after sell Circuit Breaker
Product: TGM1 Good price Moulded Case Circuit Breaker mccb
TGM1 (CM1) Series Moulded Case Circuit Breakers,2011 NEW Miniature Circuit Breakers,3 poles Miniature Moulded Case Circuit Breaker,Miniature Circuit Breakers,Moulded Case Circuit Breakers
TGM1 series moulded case circuit breaker is one of products developed and manufactured byadopting international advanced technology.
1. Application
TGM1 series moulded case circuit breaker is one of products developed and manufactured byadopting international advanced technology. It is supplied with rated insulating voltage 800Vand used for circuit of A.C. 50Hz, rated operating voltage AC 400V (or below), rated operatingcurrent up to 800A for infrequent changing over and starting of the motors.The products con-forms to IEC60947-2 standard.
2. Main Technical Specification(table1)
Type | Rated
current (A) | Polenum-ber | Ratedinsui-atingvolt-age(V) | Rated
operat-ingvolt-age(V) | Arcing-
over
distance
(mm) | Ultimate
short
circuit
breaking
capacity
(KA) | Servies
short
circuit
breaking
capacity
(KA) | Operation
perform-
ance | Utiliza-tioncat-egory |
| Load | Unload |
| TGM1 -63L | (6),10
16,20
25 ,32
40,50
63 | 3, 4 | 500V | 400V | 0 | 25 | 18 | 1500 | 8500 | A |
| TGM1 -63M | 0 | 50 | 35 |
| TGM1 -100L | (10),16
20,25
32,40
50,63
80,100 | 800V | 0(≤50) | 35 | 22 |
| TGM1 -100M | 0(≤50) | 50 | 35 |
| TGM1 -100H | 0(≤50) | 85 | 50 | 1000 | 7000 |
| TGM1 -225L | 100,125
160,180
200,225 | ≤50 | 35 | 22 |
| TGM1 -225M | ≤50 | 50 | 35 |
| TGM1 -225H | ≤50 | 85 | 50 | 1000 | 4000 |
| TGM1 -400L | 225,250
315,350
400 | ≤50 | 50 | 35 |
| TGM1 -400M | ≤100 | 65 | 42 |
| -630L | 400,500
630 | ≤100 | 50 | 35 |
| TGM1 -630M | ≤100 | 65 | 42 |
| TGM1 -630H | ≤100 | 100 | 65 |
| TGM1 -800M | 630,700
800 | 3 | ≤100 | 75 | 50 |
| TGM1 -800H | ≤100 | 100 | 65 |
| TGM1 -1250M | 1000,1250 | ≤100 | 100 | 65 |
| TGM1 -1250H | ≤100 | 125 | 5 |
Note: 6A no thermal protection The N-pole of four-poles breaker is sifed at the right side of the product has four types: Type A: No current trip-lease on N pole which making all the time, not closing and opening with the otherthree poles. Type B: No current trip-release on N pole which closing and opening with the other poles. Type C: With current trip-release which closing and opening with the other three poles. Type D: With current frip-release which making all the time not closing and opening with the other threepoles.
3. Protection Characteristic
The thermodynamic release of a circuit breaker provides the feature of inverse time-delay,while the magnetic release is the instantaneous operation as shown on table 2(distribution cir-cuit breaker) and table 3 (motor protection circuit breaker).
Table2
Rated current ofrelease (A) | Thermodynamic release( ambient temp ) | Operationalcurrent ofmagneticrelease (A) |
1.05In(cold state)
Inoperative time(h) | 1.30In(heat state)
Operative time(h) |
| 10≤In≤63 | ≥1 | < 1 | 10In±20% |
| 225≤In≤630 | ≥2 | < 2 |
| 100≤In≤800 | ≥2 | < 2 | 5In±20% |
Table3
Rated current ofrelease (A) | Thermodynamic release( ambient temp ) | Operationalcurrent ofmagneticrelease (A) |
1.0In(cold state)
Inoperative time(h) | 1.20In(heat state)
Operative time (h) | 1.50In(heat state)
Operative time (h) | 7.2In(cold state)
Operative time(h) |
| 10≤In≤225 | ≥2 | <2 | ≤4min
≤8min | 4s< Tp ≤10s
6s< Tp ≤20s | 12In±20% |
| 225≤In≤630 |
4. Accessories of Circuit breaker
4.1 The external accessories of the breaker
Motor-driven operation device
1) Wiring diagram of type CDM electromagnetic operation device(fitting AM1-63,100,225)
Code description: SB1 SB2 stand for push button.(provided by users themselves) Number "1" "2" "3" stand for number of wiring terminals.
Voltage rating: AC50Hz 230V 400V DC 220V
2) Wiring diagram of type CD motor-driven operation device (fitting AM1-400 630 800)
Code description: SB1 SB2 stand for push button. (provided by users themselves) "X" stands for line connection terminals
Voltage rating: AC50Hz 230V 400V DC 220V
