Tgm47-63 Mini Circuit Breaker (MCB)

Name: Tgm47-63 Mini Circuit Breaker (MCB)
Brand: all-electronics-online.com
SKU: 814746025
Availability: InStock
Rating: 4.7 (107 reviews)

Price:	US $ 10-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Tgm47-63
Fdf:	Dss
Fdfds:	SSS
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	CCC

Product Description

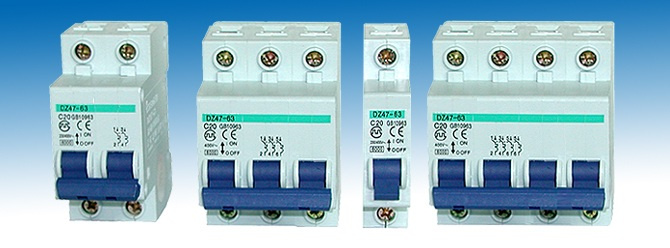

TGM47-63 series circuit breaker

TGM47-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product is neoteric in structure , light in weight, reliable and excellent in performance. Its frame and parts adopt plastics of high fire-resistant and shockproof. The product, with long life, is mainly used in AC 50Hz/ 60Hz single-pole240V or two ,three ,four-pole 415V circuit for overload and short-circuit protection as well as for unfrequented on-and-off switching electric equipment and lighting circuit under the normal condition . The products comply with IEC 898&BS 3871.

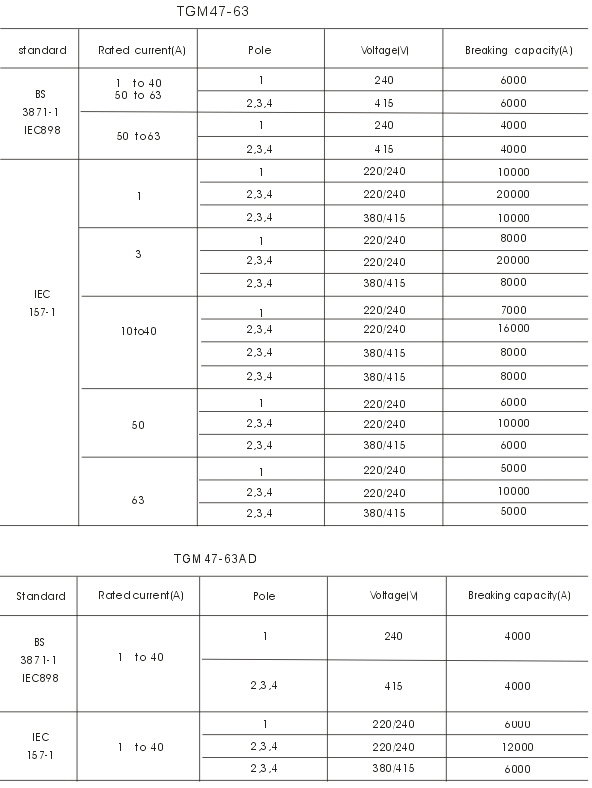

Breaker Capacity:

Specifications:
Setting temperature of protective characteristics
Rated voltage: 240v/415v
Rated current: 1,3,6,10,16,20,25,32,40,50,63A
Electrical life: no less than 6000 operations
Mechanical life: (o-c)no less than 20000 operations

Internationalization standard quality guarantee system

The product quality of onandoff Group has been strictly controlled in each working procedure, many kinds of internationalization standard quality guaranteed system can be highly effective under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently make sure of our product quality.

"Onandoff" was evaluated as " Chinese famous trademark", Onandoff Group has obtained American FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management system authentication, CCC authentication, European Union CE safe Authentication, American UL authentication and Dutch KEMA authentication and so on, at the same time, it has had the first side laboratory -- low voltage electric appliance test center which is the first connected with international in China. Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
