| Prod Model: |
YP2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as Your Wish |
| Efficiency: |
Ie3 |
| Frequency: |
50Hz |
| AC Voltage: |
380V |
| Protect Grade: |
IP44/IP54 |
| Insulation Class: |
F |
| Conection Method: |
Y Wiring |
| Custom-Made: |
Avaliable |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Number Of Poles: |
4/6/8 |
| Brand: |
Anlian |
Product Description

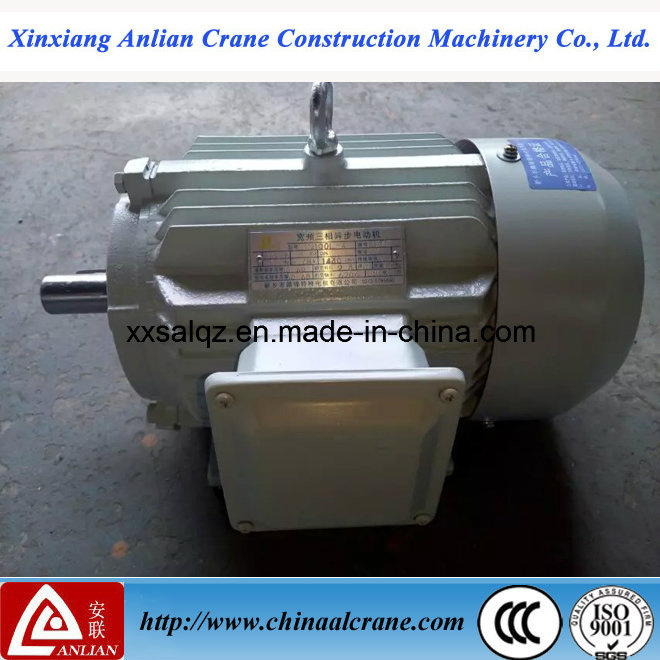

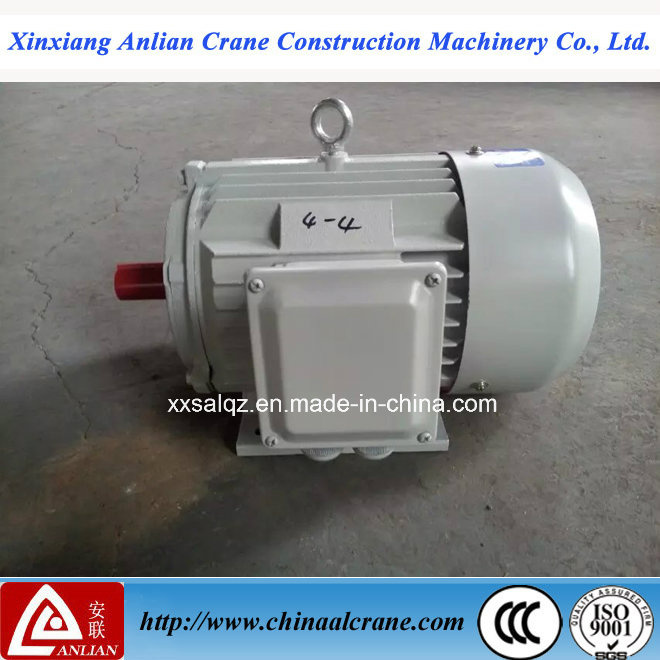

The advanced YP2 series Broadband three-phase asynchronous motor
Product Description YP2 series motor is a special motor which used in the Multiple frequency circuit.
It can used in General purpose including cutting machines, pumps, fans,conveyors, machines tools of farm duty and food process.
Features: High efficiency and energy saving,low noise and little vibration. The insulation class is F,the protective class is IP54 or IP55,frequency variable range 30-60Hz(30-50Hz for variable torque range, 50-60Hz for constant output range)
Technical parameters
Type |
Rated Output
kW |
Rated speed
rpm |
Rated current
A |
EFF
η(%) |
Power factor
(cosφ) |
Rated Toque
(N.m) |
Locked Torque
Rated Toque |
Min Torque
Rated Toque |
Max Torque
Rated Toque |
Locked Current
Rated Current |
Weight
kg |
| 3000(r/min) 50Hz Synchronous speed 3000 rpm |
| YP2-63M1-2 | 0.18 | 2720 | 0.53 | 65.0 | 0.80 | 0.63 | 2.2 | 1.6 | 2.2 | 5.5 | 5 |
| YP2-63M2-2 | 0.25 | 2720 | 0.69 | 68.0 | 0.81 | 0.88 | | | | | 5.4 |
| YP2-71M1-2 | 0.37 | 2740 | 0.99 | 70.0 | 0.81 | 1.28 | | | | 6.1 | 7.8 |
| YP2-71M2-2 | 0.55 | 2740 | 1.4 | 73.0 | 0.82 | 1.92 | | | 2.3 | | 10 |
| YP2-80M1-2 | 0.75 | 2845 | 1.78 | 75.0 | 0.83 | 2.52 | | 1.5 | | | 15 |
| YP2-80M2-2 | 1.1 | 2840 | 2.49 | 76.2 | 0.84 | 3.70 | | | | 7.0 | 16 |
| YP2-90S-2 | 1.5 | 2840 | 3.4 | 78.5 | 0.84 | 5.04 | | | | | 19 |
| YP2-90L-2 | 2.2 | 2840 | 4.8 | 81.0 | 0.85 | 7.40 | | 1.4 | | | 23 |
| YP2-100L-2 | 3 | 2880 | 6.3 | 82.6 | 0.87 | 9.95 | | | | 7.5 | 30 |
| YP2-112M-2 | 4 | 2880 | 8.2 | 84.2 | 0.88 | 13.3 | | | | | 38 |
| YP2-132S1-2 | 5.5 | 2900 | 11.2 | 85.7 | 0.88 | 18.1 | | 1.2 | | | 59 |
| YP2-132S2-2 | 7.5 | 2900 | 15.1 | 87.0 | 0.88 | 24.7 | | | | | 62 |
| YP2-160M1-2 | 11 | 2930 | 21.3 | 88.4 | 0..89 | 35.9 | | | | | 105 |
| YP2-160M2-2 | 15 | 2930 | 28.8 | 89.4 | 0.89 | 48.9 | | | | | 112 |
| YP2-160L-2 | 18.5 | 2930 | 34.7 | 90.0 | 0.90 | 60.3 | | 1.1 | | | 133 |
| YP2-180M-2 | 22 | 2940 | 41.0 | 90.5 | 0.90 | 71.5 | 2.0 | | | | 180 |
| YP2-200L1-2 | 30 | 2950 | 55.5 | 91.4 | 0.90 | 97.1 | | | | | 221 |
| YP2-200L2-2 | 37 | 2950 | 67.9 | 92.0 | 0.90 | 119.8 | | | | | 238 |
| YP2-225M-2 | 45 | 2970 | 82.1 | 92.5 | 0.90 | 144.7 | | 1.0 | | | 291 |
| YP2-250M-2 | 55 | 2965 | 101 | 93.0 | 0.90 | 177.2 | | | | | 383 |
| YP2-280S-2 | 75 | 2970 | 135 | 93.6 | 0.90 | 241.2 | | 0.9 | | | 502 |
| YP2-280M-2 | 90 | 2970 | 160 | 93.9 | 0.91 | 289.4 | | | | | 530 |
| YP2-315S-2 | 110 | 2975 | 195 | 94.0 | 0.91 | 353.1 | 1.8 | | 2.2 | 7.1 | 900 |
| YP2-315M-2 | 132 | 2975 | 233 | 94.5 | 0.91 | 423.7 | | | | | 1000 |
| YP2-315L1-2 | 160 | 2975 | 279 | 94.6 | 0.92 | 513.6 | | | | | 1100 |
| YP2-315L-2 | 185 | 2975 | 323 | 94.7 | 0.92 | 593.9 | | 0.8 | | | 1125 |
| YP2-315L 2-2 | 200 | 2975 | 348 | 94.8 | 0.92 | 642.0 | | | | | 1190 |
| YP2-355M1-2 | 220 | 2980 | 382 | 94.9 | 0.92 | 705.0 | 1.6 | | | | 1740 |
| YP2-355M2-2 | 250 | 2980 | 434 | 95.2 | 0.92 | 801.2 | | | | | 1810 |
| YP2-355L1-2 | 280 | 2980 | 485 | 95.3 | 0.92 | 897.3 | | | | | 1895 |
| YP2-355L2-2 | 315 | 2980 | 545 | 95.4 | 0.92 | 1009.5 | | | | | 1920 |
| 1500(r/min) Synchronous Speed1500 rpm |
| YP2-63M1-4 | 0.12 | 1310 | 0.44 | 57.0 | 0.72 | 0.87 | 2.1 | 1.7 | 2.2 | 4.4 | 4.8 |
| YP2-63M2-4 | 0.18 | 1310 | 0.62 | 60.0 | 0.73 | 1.31 | | | | | 5.2 |
| YP2-71M1-4 | 0.25 | 1330 | 0.79 | 65.0 | 0.74 | 1.80 | | | | 5.2 | 7.2 |
| YP2-71M2-4 | 0.37 | 1330 | 1.12 | 67.0 | 0.75 | 2.66 | | | | | 9 |
| YP2-80M1-4 | 0.55 | 1390 | 1.54 | 71.0 | 0.75 | 3.78 | 2.4 | | 2.3 | | 13 |
| YP2-80M2-4 | 0.75 | 1380 | 1.99 | 73.0 | 0.76 | 5.19 | 2.3 | 1.6 | | 6.0 | 14 |
| YP2-90S-4 | 1.1 | 1390 | 2.9 | 76.2 | 0.77 | 7.56 | | | | | 19 |
| YP2-90L-4 | 1.5 | 1390 | 3.7 | 78.5 | 0.79 | 10.3 | | | | | 23 |
| YP2-100L1-4 | 2.2 | 1420 | 5.2 | 81.0 | 0.81 | 14.8 | | 1.5 | | 7.0 | 30 |
| YP2-100L2-4 | 3 | 1420 | 6.7 | 82.6 | 0.82 | 20.2 | | | | | 34 |
| YP2-112M-4 | 4 | 1435 | 8.8 | 84.2 | 0.82 | 26.6 | | | | | 44 |
| YP2-132S-4 | 5.5 | 1440 | 11.7 | 85.7 | 0.83 | 36.5 | 2.3 | 1.4 | 2.3 | 7.0 | 58 |
| YP2-132M-4 | 7.5 | 1440 | 15.6 | 87.0 | 0.84 | 49.7 | | | | | 70 |
| YP2-160M-4 | 11 | 1460 | 22.3 | 88.4 | 0.84 | 72.0 | 2.2 | | | | 107 |
| YP2-160L-4 | 15 | 1460 | 30.1 | 89.4 | 0.85 | 98.1 | | | | 7.5 | 132 |
| YP2-180M-4 | 18.5 | 1470 | 36.5 | 90.0 | 0.86 | 120.2 | | 1.2 | | | 172 |
| YP2-180L-4 | 22 | 1470 | 43.1 | 90.5 | 0.86 | 142.9 | | | | | 188 |
| YP2-200L-4 | 30 | 1470 | 57.6 | 91.4 | 0.86 | 194.9 | | | | 7.2 | 243 |
| YP2-225S-4 | 37 | 1480 | 69.9 | 92.0 | 0.87 | 238.8 | | | | | 297 |
| YP2-225M-4 | 45 | 1480 | 84.7 | 92.5 | 0.87 | 290.4 | | 1.1 | | | 333 |
| YP2-250M-4 | 55 | 1480 | 103 | 93.0 | 0.87 | 354.9 | | | | | 394 |
| YP2-280S-4 | 75 | 1480 | 140 | 93.6 | 0.87 | 484.0 | | 1.0 | | | 531 |
| YP2-280M-4 | 90 | 1490 | 167 | 93.9 | 0.87 | 576.8 | | | | | 590 |
| YP2-315S-4 | 110 | 1480 | 201 | 94.5 | 0.88 | 709.8 | 2.1 | | 2.2 | 6.9 | 1000 |
Company InformationXinxiang Anlian Crane Construction Machinery Co., Ltd., the main business: Electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist accessories, which widely used in various fields of materials handling, such as machinery manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on.
Founded in 1993, after years of development, as a whole of development, design, manufacture, sale, installation and service, it has become the equipment manufacturing enterprises. Currently has a registered capital of 10 million yuan, more than 200 employees, 20 engineers and technicians, covers an area of 24, 000 square meters, with all kinds of production equipment 90 (sets).
Our Services 1. Freely provide project designing, process designing, choosing suitable equipment for you.
2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed
process, and complete process of export
3. 100% positive feedback
4. 12 months warranty
5. Professional technicians provide installation, commissioning services
6. Technical advisory for any time
FAQ
1.Q: Why we choose your product?
A: Rich experience: We have more than 10 years experience in this industry. Which means, we can preview the problems for the orders and products.
Point to point service: There is one sale who will serve you from inquiry to products shipped out. During the process, you just need to discuss with her for all problems and the way saves much time.

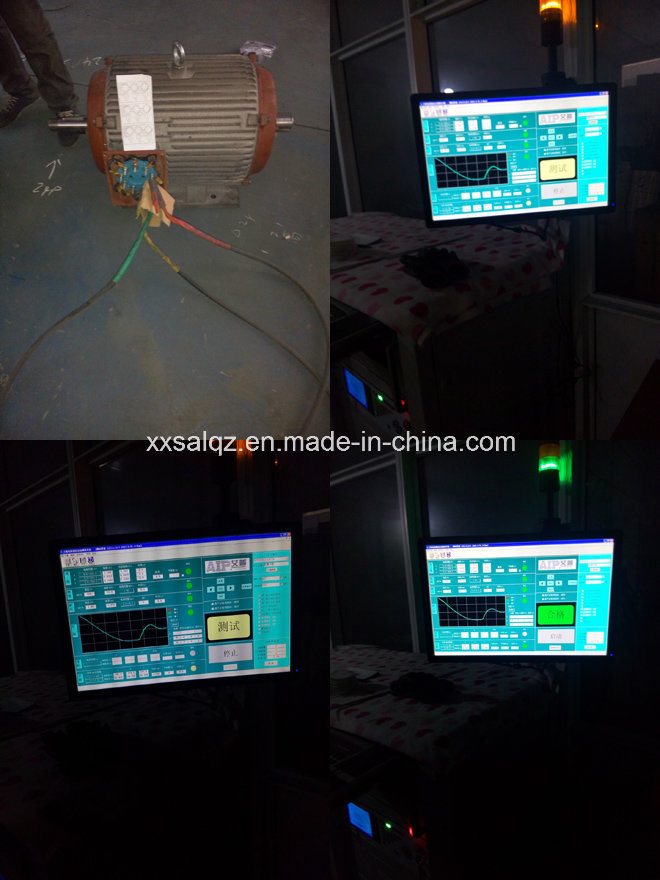

Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoided within door.
