The Combination of Single Phase Current Transmitter

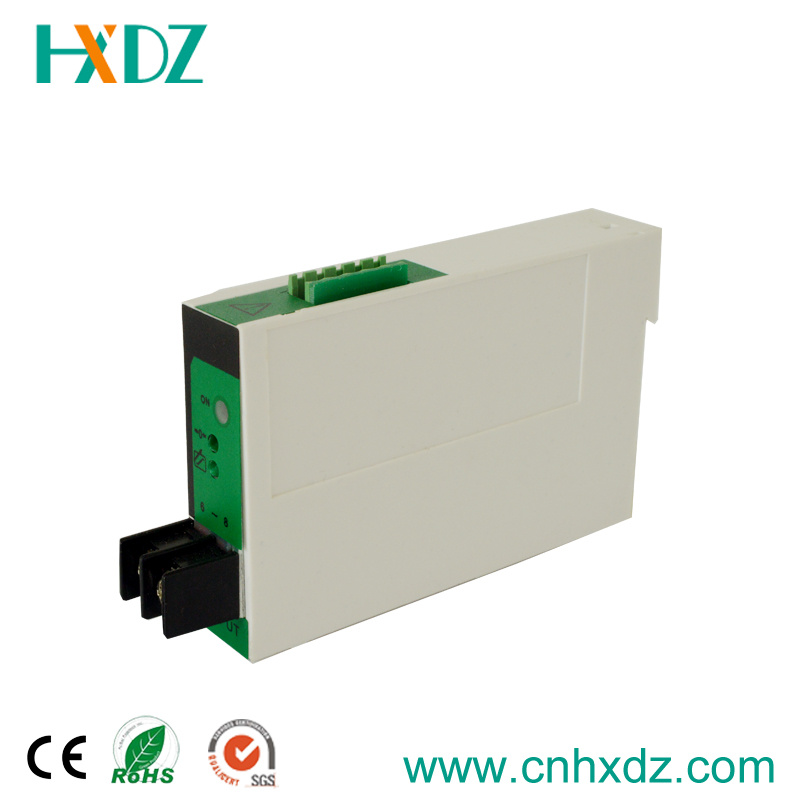

Name: The Combination of Single Phase Current Transmitter
Brand: all-electronics-online.com
SKU: 757836595
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	US $ 12.59/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HXDZ-29
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
AC Input:	Current AC 5A, AC 1A etc.
Precision:	≤±0.5%RO
Use Of Power:	AC/DC 85V ~ 265V 50Hz
Wire-Assembly Type:	Single Phase

Product Description

1. Product overview:
It is a meter which can transmit electrical parameters in the power grid into DC analog signal or digital signal, the product can be applied to electricity collection of various control systems, building automation, distribution network automation, community electricity control, industrial automation, intelligent distribution board, switch cabinet.
2. Product feature:
1. Usage: It is a meter which can transmit current parameters in the grid into linear DC analog signal through isolation.
2. Measurement: single phase AC current transmission output
3. Precision: 0.5% (according to the use of precision)
4.Output:0~20mAdc ,4~20mAdc,0~10Vdc, 0~5Vdc,etc. analog signal.
3. Technical indicators

precision			Grade0.2 Grade 0.5
input	Nominal value		1A,5A,etc.	20mA,etc	100V,200V,380V,450V,etc.	75mV,etc.
	frequency		50/60Hz
output	analog	Nominal value	0-20mA,4-20mA,0-5V,etc.
		Load resistance	When current output:RL<1kΩ,when voltage output:RL>5kΩ
	Digital quantity
Power supply	Auxiliary power supply (APS)		AC110V,DC110V,AC220V,DC220V,AC/DC80-270V
	Power consumption		<3.5VA

AC input	Current AC 5A, AC 1A etc.
Input load	Current transformer CT:≤0.2VA
Allowable overload	Current ×2 times nominal value continues ;current×10 time nominal value 10s.
precision	≤±0.5%RO
Response time	≤500ms
Output voltage	0~10Vdc, 0~5Vdc(load resistance=input voltage/10mAdc)
Output current	4~20mAdc(load resistance≤510Ω)
Output wave	≤0.5% RO peak to peak value
Working environment temperature and humidity	0~50ºC/<80% relative humidity(no condensation state)
Storage environment temperature and humidity	-20~70ºC/<70% relative (no condensation state)
Use of power	AC/DC 85V ~ 265V 50Hz
Isolation	input/output/power supply /case
Power consumption	DC about 3W,AC about 4VA
Sheathing material	ABS fireproof material
Weight	About 450 g
Compression strength	AC2kVrms/min
Isolation resistance	>100MΩ when DC500V
dimension	119.5(L)* 110(W)* 75(H)mm
Installation mode	35mm standard lead rail
