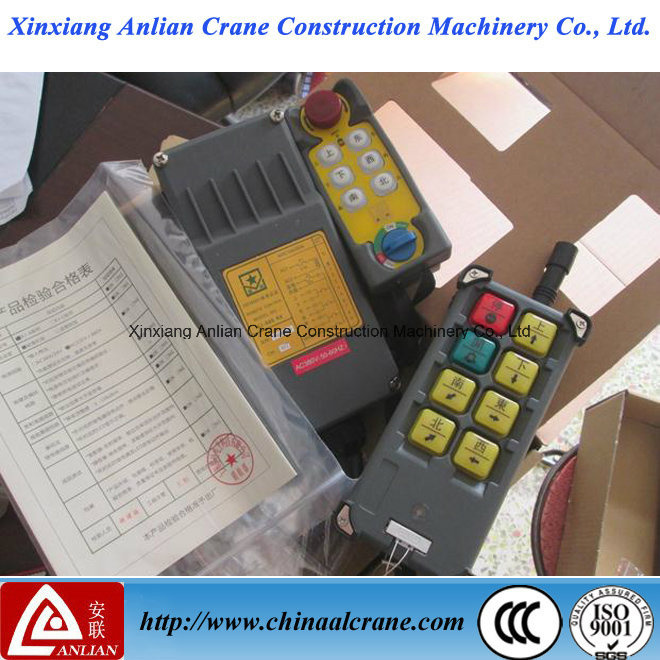

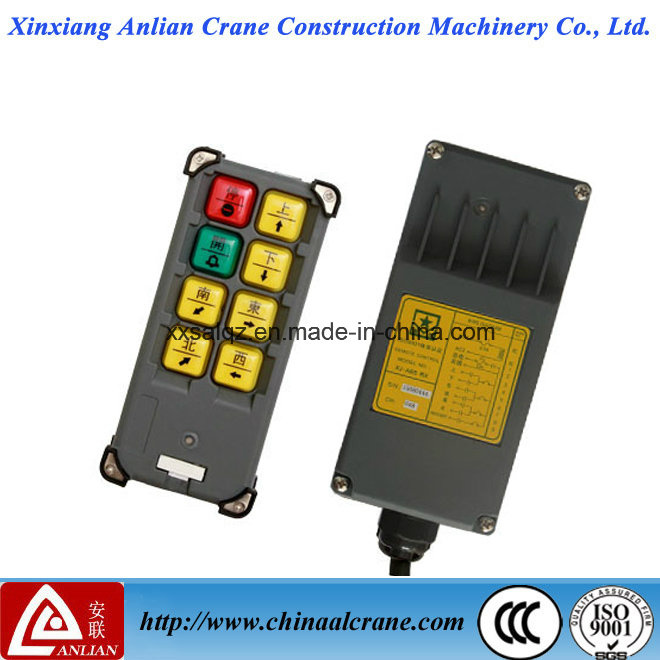

Product desprictionProduct: XJ - A series the remote control for crane
Use: suitable for single hook, single speed electric hoist and hoist type double beam crane.
Product features: six single speed keys + 1 stop + 1 start button/bell; With the battery voltage alarm device, voltage is insufficient, automatic cut off the circuit; Security key switch, forbid the stranger use
Hardware: rain-proof, strong and durable
Software: unique E card design, can replace the handle easily
Technical parameters Hardware: waterproof, prevent fall, strong and durable
Software: the unique E card design, on-site maintenance more convenient and quick
Control distance: 100 meters or more
Security code: more than 4.3 billion unique ID identification number (for maximum security)
Temperature: - 35 ºC ~ + 80 ºC (regardless of the cell temperature resistant)
Level of protection: IP67 waterproof (regardless of the battery)
Receiver voltage: AC380V, AC36V / 24 v / 220 v (other voltage can be customized)
Packing detail : launcher (including the handle belt) : 1 unit
size: 164 x 75 x 43 mm weight: 316 g
Receiver (including 1.3 meters connecting cable) : 1 unit
size: 194 * 85 * 55 mm weight: 782 g
Product manual:1 unit packing box:1 unit
The packing gross weight: 1467 g
Operating steps
Before the operation
1: will full of AA type (5) battery 2 as the right direction into the transmitter of the battery box, and lock the battery cover.
2: the emitter magnet key switch in the correct position.
3: according to the transmitter on the function of each button set correct operation.
After the operation
4: press the transmitter STOP button.
5: the transmitter key switch is set aside.
Note: if long time not to use, need to take out the battery box.
Company profile
Xinxiang Anlian Crane Construction Machinery Co., Ltd., the main business: Electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist accessories, which widely used in various fields of materials handling, such as machinery manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on. Founded in 1993, after years of development, as a whole of development, design, manufacture, sale, installation and service, it has become the equipment manufacturing enterprises. Currently has a registered capital of 10 million yuan, more than 200 employees, 20 engineers and technicians, covers an area of 24, 000 square meters, with all kinds of production equipment 90 (sets).
Our service
1. Freely provide project designing, process designing, choosing suitable equipment for you.
2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed
process, and complete process of export
3. 100% positive feedback
4. 12 months warranty
5. Professional technicians provide installation, commissioning services
6. Technical advisory for any time
FAQ
1.Q: Why we choose your product?
A: Rich experience: We have more than 10 years experience in this industry. Which means, we can preview the problems for the orders and products.
Point to point service: There is one sale who will serve you from inquiry to products shipped out. During the process, you just need to discuss with her for all problems and the way saves much time.
Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoided within door.
Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
2. Q:What's your product range?
A:electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist accessories.etc
3.Q:What is the information should I provide when inquiry?
A: a. Which type of the products I need?
b. What is the quantity of the product I need?
c. FOB or CIF,and which port you want?
4.Q: What is the process for doing business with us ?
A: 1. please provide details of the products you need and we will quote for you.
2. If price is acceptable and you need sample, we will provide Performa Invoice to arrange payment for sample and you should pay for the transportation freight and sample cost.
3. If you approve sample and require for bulk production for order, we will provide Performa Invoice foryou, and we will arrange to produce at once when we get 30% deposit.
4. We will send photos of all goods, packing, details, and B/L copy for you after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.
5.Q:Which country have you exported?
A: we have export Russia,Turkey, Malaysia, Vietnam and many other countries.
Concact
