Product Description
The integrated circuit Laser Marking Machine

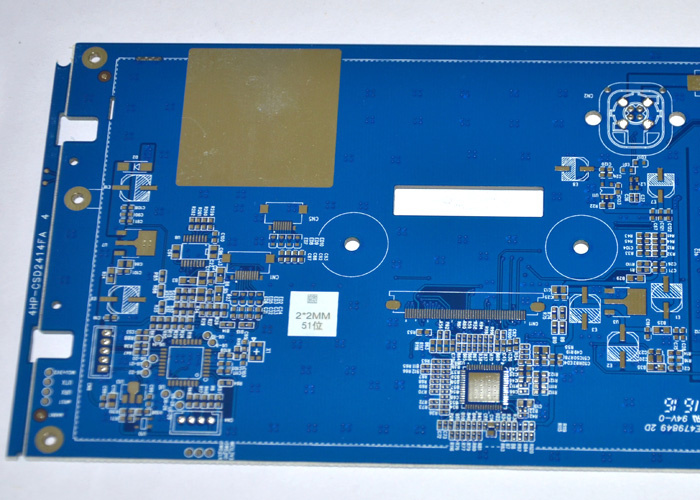

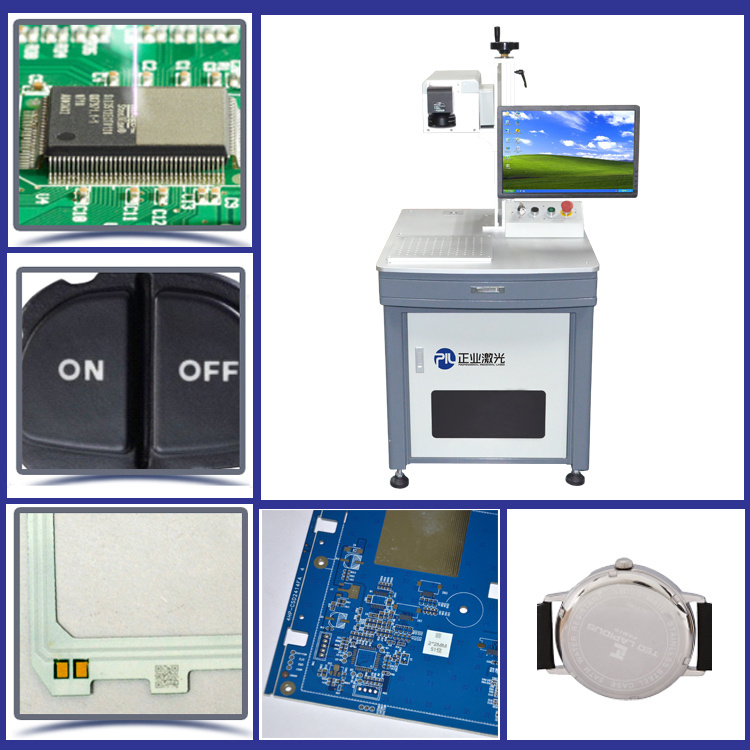

The integrated circuit Laser Marking Machine UsageThe machine employs the imported UV laser and imported high-speed galvanometer as its central devices. It is widely used for metal or nonmetal's surface marking to make up for the lack of IR Laser's processing ability. The main applicable materials are electronic products shell marking, battery charger, data line, mobile phone, computer fitting marking, electronic components, jewellery, horologe marking, PCB, FPC marking and cutting, Glass product marking, metal, alloys marking and plastics material's marking, etc.
Zhengye Technology is engaged in researching & developing,producing, selling and after-sale services of laser cutting machines and laser marking machines.The laser machines have been popular in domestic and overseas countries. Zhengye Technology have become the designated supplier for Huawei of laser marking machine.

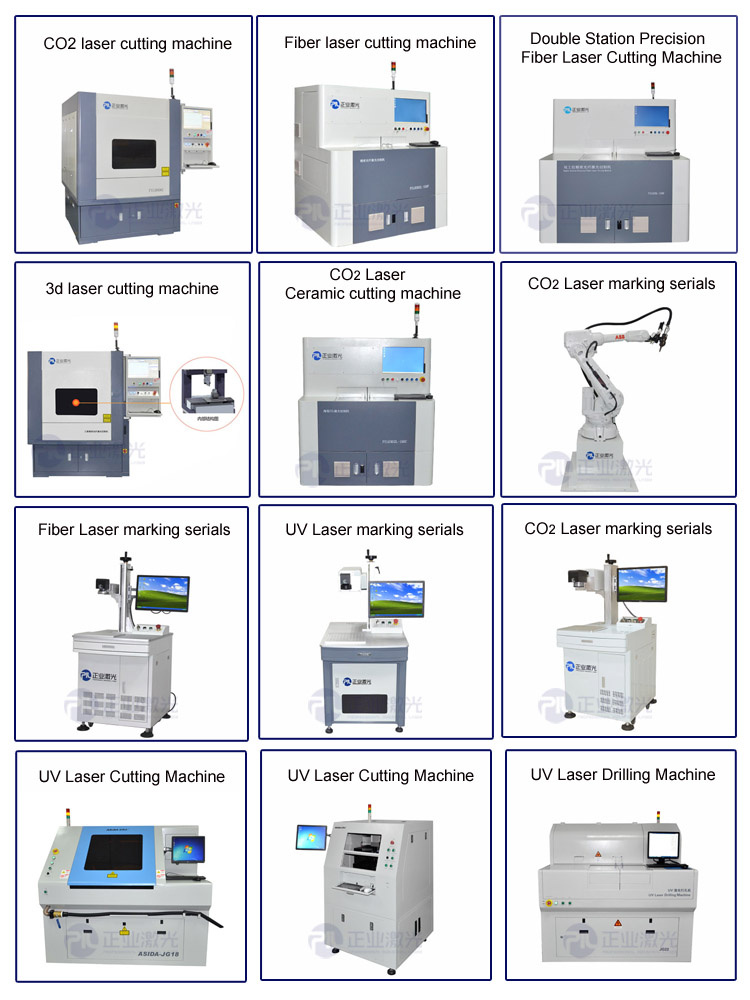

Laser cutting machines series include CO2 laser cutting machines , UV laser cutting machines, fiber laser cutting machine , ceramic laser cutting machines, double stations fiber laser cutting machine, 3D fiber laser cutting machine, UV laser drilling machine, fiber laser cutting robot etc.
Laser marking series include UV laser marking machine, CO2 laser marking machine, fiber laser marking machine etc.
Welcome Free sample. Zhengye Technology can provide you profession industrial laser solution.
The integrated circuit Laser Marking Machine Technical Parameter | Specifications of UV Laser Marking Machine |
| Model | MUV-3 | MUV-5 |
| Laser type | Imported UV Laser |
| Laser power | 3W | 5W |
| Laser wavelength | 355 nm |
| Laser frequency | 300-100 kHz |
| Laser power stability | <=5% rms |
| M2 beam quality | <=1.3 |
| Laser cooling method | Air Cooling |
| Marking speed | <=6000 mm/s |
| Marking area | Stand marking size: 100 mm × 100 mm;
Optional marking size: 50 mm × 50 mm~200 mm × 200 mm. |
| Minimum line width | 0.01 mm |
| Minimum character | 0.1 mm |
| Repetitive of positioning accuracy | 0.003 mm |
How about Service?Pre-sales service
We provide customers with a variety of services including production processes proposals, technical consulting, free sample making, equipment shape designing
Installation & Training
English-speaking engineer is available for end-user's machine installation and training.
English software, installation and related training instructions and videos are available for end-users.
With our customer-orientated service support, maintenance and repair costs will be kept low.
Lifetime free of charge support and upgrade for hardware and software
One year guarantee for machine is promised.
Established in 1997, Guangdong Zhengye Technological Liability Limited Company is a high and new-tech enterprise and is engaged in researching &developing, producing, selling and after-sale services of the precision detection equipments and electronic materials both in Printed Circuit Board manufacturing field and Lithium battery testing industry.
In recent years, the company is dedicated to researching and developing domestic scientific instruments and equipments through the scientific developing mode of "independent research and development", "introducing, digesting, absorbing and then re-innovating" and "combination involves producing, teaching & researching". We have independently worked out and produced more than 40 kinds of testing instruments and equipments for rigid and flexible board such as X-ray nondestructive inspection equipment, ionic contamination tester, visual inspection machine, impedance test system etc. All of the products have our own intellectual property rights, which also have filled the domestic gap. It has satisfiled with the demanding for high quality inspection of the electronic circuit industry and Lithium Battery testing industry.
In the process of continuous development of the enterprise, we have also won high reputation from the government and this industry and has been awarded as the key high-tech enterprise of national Torch Plan, outstanding national brand enterprise in the 1st and the 2ND China electronic circuit industry, national standardization good behavior enterprise AAA enterprise, fast-growing medium and small enterprises, the national torch plan, the famous trademarks of Guangdong province, the major provincial-supported equipment manufacturing enterprises, technology center of all enterprises in Guangdong and preponderant enterprise in intellectual property in Guangdong, etc. At present, the company's selling market covers the Pearl River delta region and Yangtze River delta region and is expanding to South Korea, Taiwan and other southeast Asia areas.
Zhengye technology of the independent research and development production X-ray non-destructive inspection equipments are widely used in the Lithium battery industry\PCB field and electronic manufacturing process, it is used for Non-destructive testing analysis of the products' internal defects. The whole parts of the X-ray non-destructive testing equipment meets safety requirements both in Europe and USA, which has got the radioactive isotopes and radial device management exemption certificate in Guangdong Province.
In future, Zhengye will continue to provide sincere service for customers and further focus on outstanding technical innovation. We will constantly improve the accuracy and stability of testing instruments, strengthen our brand construction with the aim to be a professional supplier of precision detection equipments and electronic materials and Lithium battery testing industry.
