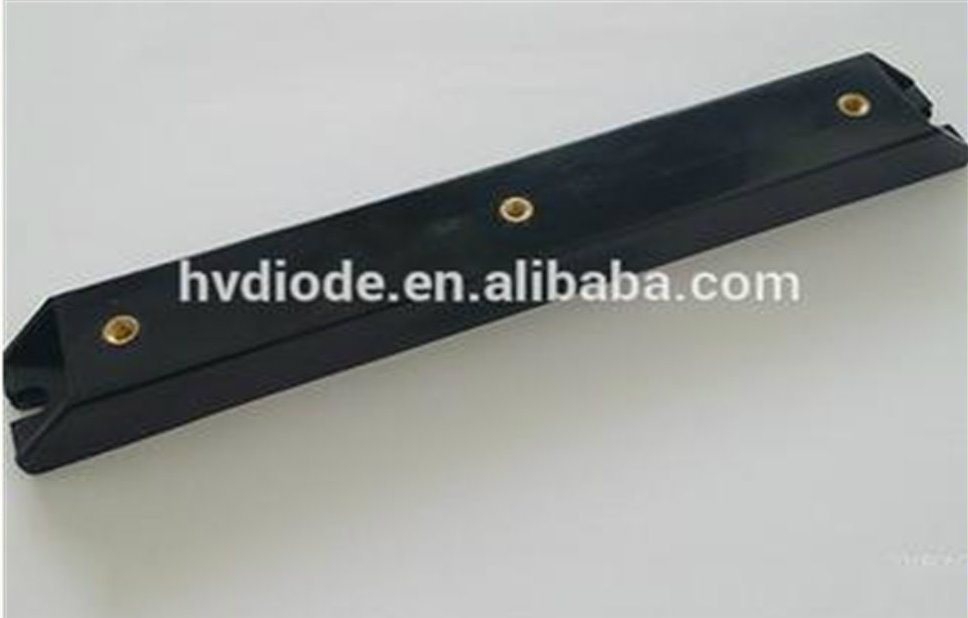

The Most Popular Products 10kv-1.5A Bridge Rectifier Diode

Prod Model:	HDQL10KV/1.5A
Tj:	-40oc~+120oc
Use:	Electrostatic Cleaning
Feature:	More Size Available
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	HDQL10kv/1.5A
Brand:	Leadsun

Product Description

the most popular products 10KV-1.5A bridge rectifier diode
Feature:
1. Avalanche characteristic
2. More size available
3. Vacuum molded, non-corrosive epoxy resin case
4. Tj: -40ºC~+120ºC
Application:
1. High voltage rectifier used in electrostatic cleaning
2. High voltage testing equipment
3. General purpose high voltage rectifier

Extreme(Absolute Maximum Rating)

Item	Symbol	Unit	Conditions	Vlotage
Revetitive Peak Reverse Voltage	Vrrm	KV	Ta=25ºC Ir=1.0uA	2*10.0
Peak Working Reverse Voltage	Vrwm	KV	Ta=25ºC Ir=1.0uA	2*10.0
No-Revetitive Peak Reverse Voltage	Vrsm	KV	Ta=25ºC Ir=1.0uA	2*11.0
Average Forward Current	Io	A		1.5
Surge Forward Output Current	Ifsm	A		30.0
Operating Ambient Temperature	Ta	ºC		-40~+125
Junction and Storage Temperature	Tstg	ºC		-40~+125

Electrical Characteristics(Ta=25ºC)

Forward Peak Voltage	Vfm	V	@Ta=25ºC If=1.5A	2*12.0
Reverse Recovery Time	Trr	nS	--	--
Peak Reverse Current	Irrm1	uA	@Ta=25ºC Vr=Vrrm	10.0
	Irrm2	uA	@Ta=100ºC Vr=Vrrm	200.0

Company & Services
· Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
· Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of  Types and Models for your choosing
· Leadsun technical center record every order and product characteristics; sales department focus on market developmenttendency, will supply you Full Service.
· Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
· Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
