The Professional Rigid-Flex PCB Board with High Quality

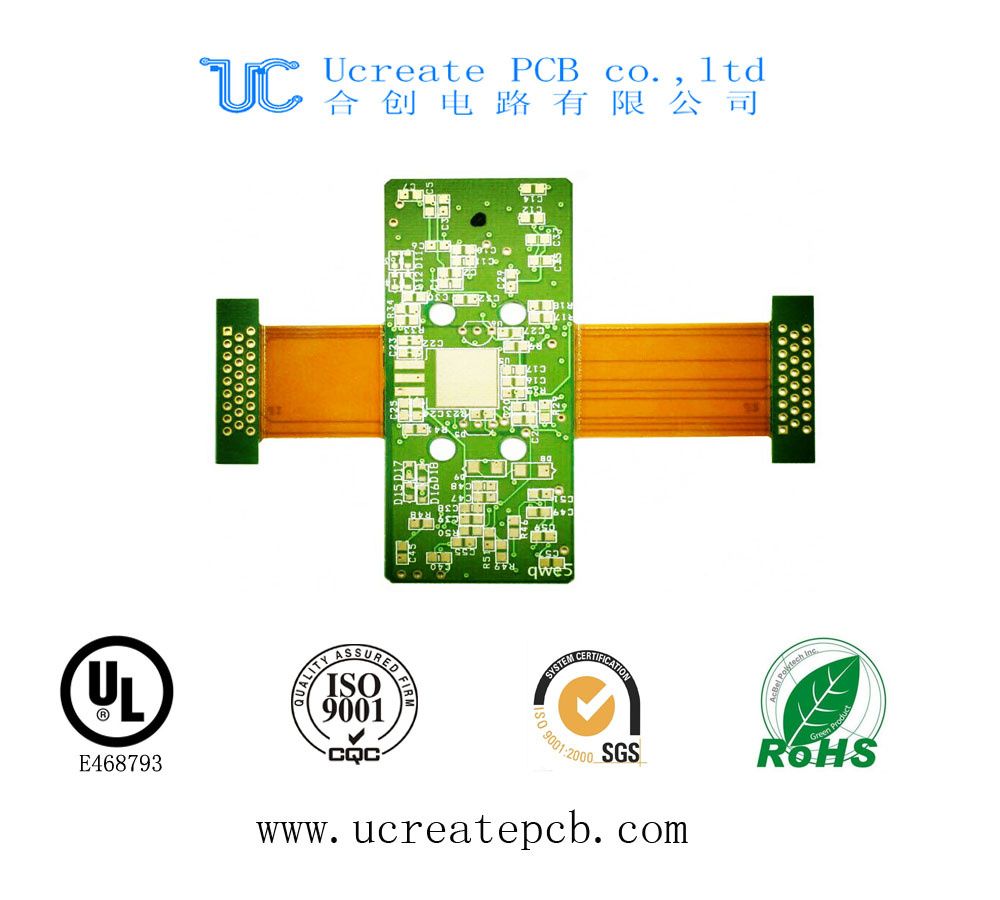

Name: The Professional Rigid-Flex PCB Board with High Quality
Brand: all-electronics-online.com
SKU: 793886435
Availability: InStock
Rating: 5 (97 reviews)

Price:	US $ 0.1-0.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UC-35744
Layer Count:	2layer
Soldermask Color:	Green
Board Thickness:	1.0mm Fr4+0.2mm Polymide
Surface Treatment:	Immersion Gold
Lead Time:	9 Working Days
Ipc Standards:	Ipc Class II
Type:	Combining Rigid Circuit Board
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Dielectric:	Fr4+Polymide
Mechanical Rigid:	Rigid and Flexible
Brand:	Uc

Product Description

Ucreate is specialized in low to medium volume high quality PCB population with UL&ISO&RoHs certificate approved.

Our Specialities:
1. No MOQ
2. Quick Lead time
3. High standard pcb depends on IPC Class II or IPC Class III if required
4. 100% E-tested guarantee before shipping
5. RoHS, UL, ISO, SGS certificate approved

Our capabilities:

Items		Speci.
Max panel size		32" x 20.5"(800mm x 520mm)
Min trace width/ space (inner layer)		4mil/4mil(0.1mm/0.1mm)
Min PAD (inner layer)		5 mil(0.13mm)
Min thickness(inner layer)		4 mil(0.1mm)
Inner copper thickness		1~4 oz
Outer copper thickness		0.5~6 oz
Finished board thickness		0.4-3.2 mm
Board thickness tolerance control	±0.10 mm	±0.10 mm
	±10%	±10%
	±10%	±10%
Inner layer treatment		brown oxidation
Layer count Capability		1-30 LAYER
alignment between ML		±2mil
Min drilling		0.15 mm
Min finished hole		0.1 mm
Hole precision		±2 mil(±50 um)
tolerance for Slot		±3 mil(±75 um)
tolerance for PTH		±3 mil(±75um)
tolerance for NPTH		±2mil(±50um)
Max Aspect Ratio for PTH		8:1
Hole wall copper thickness		15-50um
Alignment of outer layers		4mil/4mil
Min trace width/space for outer layer		4mil/4mil
Tolerance of Etching		+/-10%
Thickness of solder mask	on trace	0.4-1.2mil(10-30um)
	at trace corner	≥0.2mil(5um)
	On base material	≤+1.2mil Finished thickness
Hardness of solder mask		6H
Alignment of solder mask film		±2mil(+/-50um)
Min width of solder mask bridge		4mil(100um)
Max hole with solder plug		0.5mm
Surface finish		HAL (Lead or Lead free), immersion Gold, Immersion Nickel, Electric Gold finger, Electric Gold, OSP, Immersion Silver.
Max Nickel thickness for Gold finger		280u"(7um)
Max gold thickness for Gold finger		30u"(0.75um)
Nickel thickness in Immersion Gold		120u"/240u"(3um/6um)
Gold thickness in Immersion Gold		2u"/6u"(0.05um/0.15um)
Impedance control and its tolerance		50±10%,75±10%,100±10% 110±10%
Trace Anti-stripped strength		≥61B/in(≥107g/mm)
bow and twist		0.75%

Established in 2004, Ucreate PCB Co., Ltd is a professional manufacturing enterprise majoring in high end and multi-layer Printed Circuit Board.

Along with more than 10 years' development, Ucreate has settled its factories both in Shenzhen and Huizhou city, covering facility area 12000 Square meters, with more than 800 employees, among them, 150 with highly professional who are no less than 10 years expert in PCB field. Now we are reaching a monthly capability of 30000 Square meters.

Our main products range from Multilayer PCB, High frequency PCB, Metal base PCB, Hi-Tg heavy copper foil PCB and Mixed Dielectric base PCB, HDI, rigid-flex PCB, and many other customized PCB with special performance which are widely used in Communication, power supply, computer, consumer electronics, industrial control, medical device, Aeronautics and Astronautics high technology field and spread over America, Europe and some Asia Districts, achieving their satisfication.

Ucreate has been certificated with ISO9001, ISO14001, UL from US and Canada, all of our products are with RoHS certification.

Under the mission " high quality, exact delivery, customers' satisfactions, continuous development, Common innovation ", We believe Ucreate will develop better and better with your participation.
