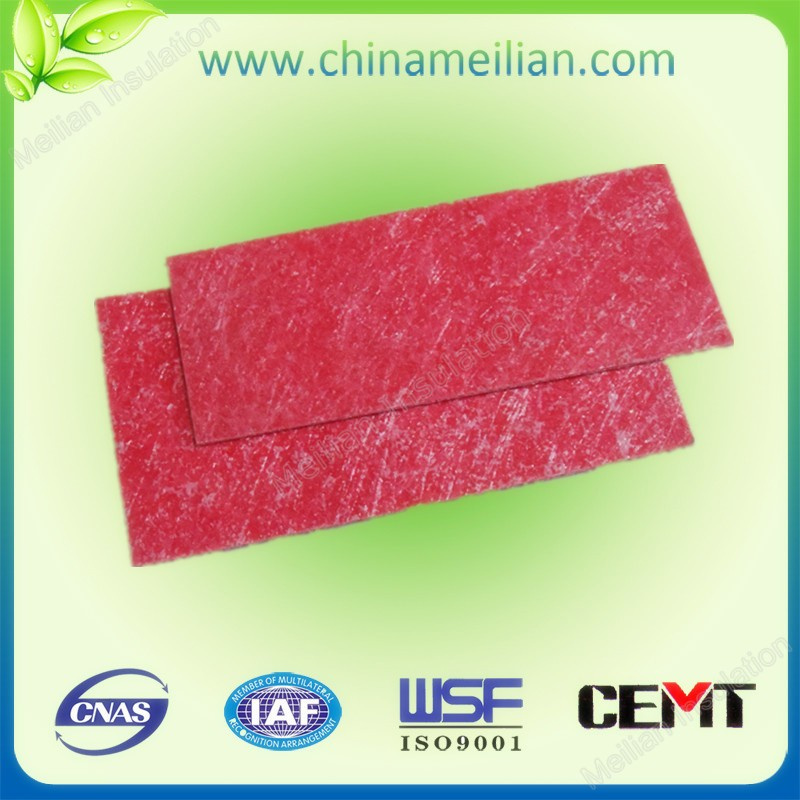

Thermal Expansion Insulation Material Pad/ Stips/Pad

Prod Model:	MJ-301
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	More Than 1.9g/cm3
Delivery:	7-10 Working Days
Size:	1220X1020mm
Tensile Strength:	More Than 120 MPa
Appliction:	for Motor & Generator
Samples:	Free Samples Are Welcome
Formation Methods:	High Temperature and High Pressure
Thermal Expansion Rate:	Greater Than 70%
Customizable:	Yes
MOQ:	1 Piece
Application:	Generator
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	F 155
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

3240 insulation laminate fiberglass sheet/ board:
Appearance:
Light pink, white, surface smoothly, cutting edges neatly, without layer and impurities

Feature:
Solve the long-term operation of motor slot wedge looseness
Ensure that the motor can run reliably.
Extend motor service life
Important significance to the motor & electrical industry technology progress

Application:
AC and DC motor and generator groove strip
Coil end insulation cushion block
Kinds of electrical equipments.
The thermal expansion rate is greater than 70%.

Packaging Detail: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.

Delivery Detail: 7-10 working days


FAQ:

(1) Can you give me a discount price?

It is depending on the volume. The larger the volume is, the more discount you can enjoy.

(2) How can I get a sample?

Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.

(3) How can you deal with quality issues that customer feedback after receiving the goods?
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.


Basic information
Product name	Thermal Expansion Fiberglass Sheet/Strip/Pad
Item No.	MJ-301
Brand	MJ
Material	Alkali free fiberglass
Grade	With the same grade of the impregnate varnish
Technical Performance
Density	≥1.4g/cm 3
Sheets Thickness	0.1-50mm
Size	≥1220x980mm
Formation methods	High temperature and high pressure
Water absorption	≤1.0%
Thermal Expansion Rate(Thickness Direction)  30min/130°C                                                              30min/180°C	≥50%                                                                                            ≥80%
Reference Standard	GB/T1303.1-1998
