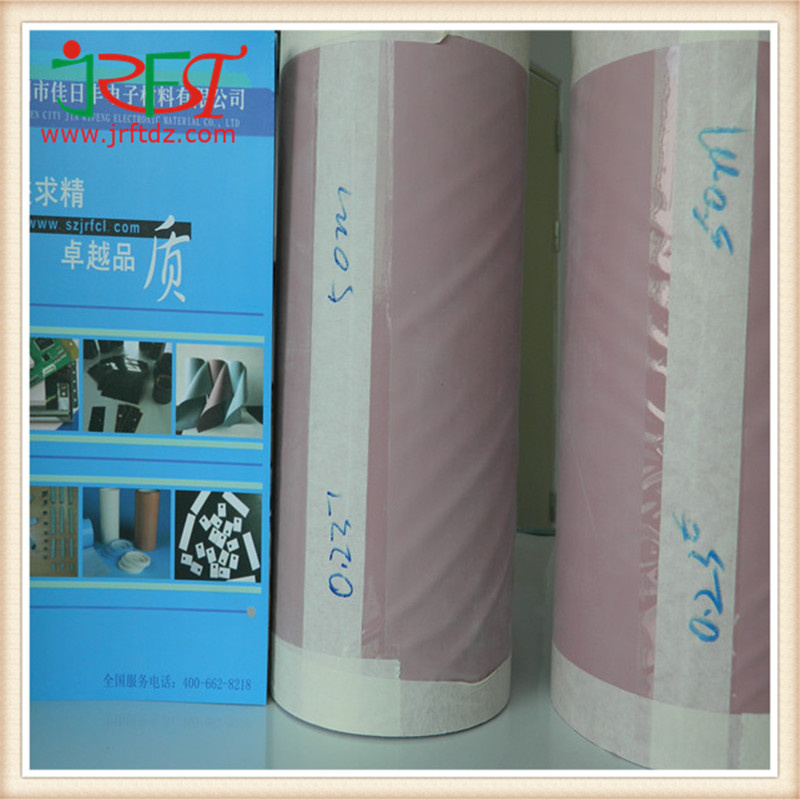

Thermal Insulation Composite Material Silicone Cloth for IGBT / Is MOS Transistor

Name: Thermal Insulation Composite Material Silicone Cloth for IGBT / Is MOS Transistor
Brand: all-electronics-online.com
SKU: 759840065
Availability: InStock
Rating: 4.9 (124 reviews)

Price:	US $ 7.8-9.5/Square Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Square Meter
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

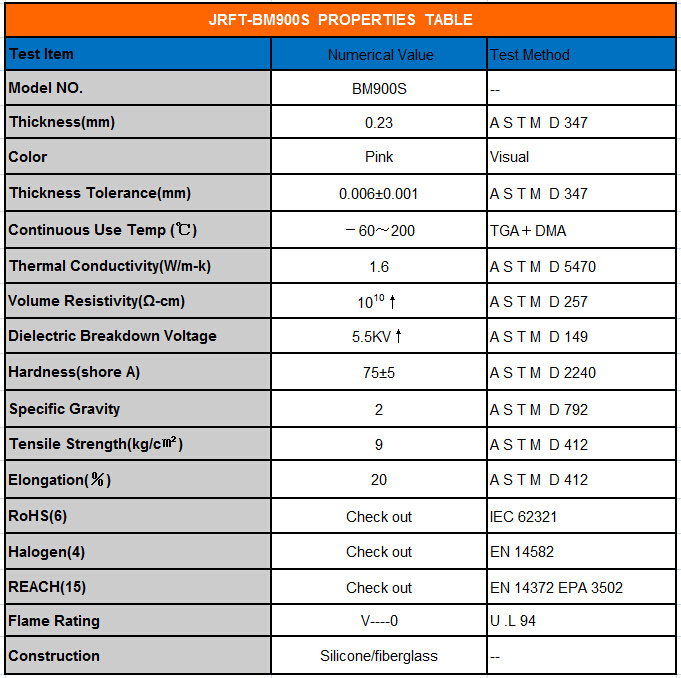

Prod Model:	BM900S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specific Gravity:	2.0
Thickness (Mm):	0.23
Hardness (Shore A):	75+-5
Thickness Tolerance (Mm):	0.006+-0.001
Thermal Conductivity (W/M-K):	1.6
Chemistry:	Organic Insulation
Material:	Rubber
Thermal Rating:	200 200
Maximum Voltage:	<10KV
Brand:	Jrft
Application:	Electronic Products
Type:	Insulation Cloth
Color:	Pink

Product Description

Advantages:
1.Strong tension resistance,
2.Wear resistance, excellent insulation performance,
3.Non adhesive on surface , thin thickness, suitable for thermal insulation of power devices.

Features:
Thermal resistance : 0.49C -in2/W (@ 50psi)
Low fastening pressure
Surface smooth and highly adapted
electrical insulation

Application:
Large power source and automobile electronic heating module
Motor control, communication equipment
Power semiconductor, IS MOS tube IGBT chip
High voltage , high temperature , high power welding machine etc.
Military, aviation
Heating power device

Specifications:

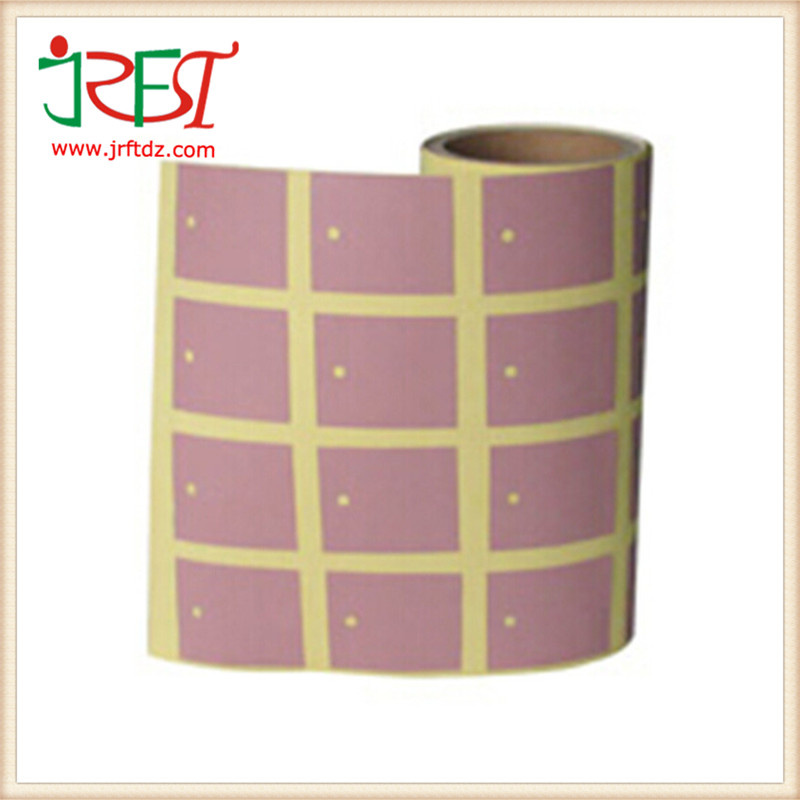

Sheet, die-cutting, roll, with adhesive and without adhesive
Basic size:0.23mm300mm50m , 0.23mm300mm76m
According to customer requirements can be processed into sheets of different shapes can also be glued processing according to the customer demand.

Product introduction

BM900S is a kind of silicone elastomer composite material, it's by insulating and good thermal conductivity filling material , silicone rubber and fiberglass compounded into. These products generally take the lower fastening pressure element fixed ways , the product has good thermal conductivity and high strength voltage resistance performance!
