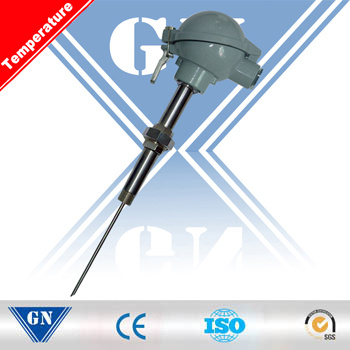

Thermal Resistance with Elbow Tube Connector (CX-WZ)

Prod Model:	CX-WZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-500c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	PT100,Cu50,Cu100,PT1000
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Thermal Resistance with Elbow Tube Connector(CX-WZ)

Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to500°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-500C centigrade .
5.Terminal blocks: terminals box


Selection table:

Type	Graduation	Measuring Range ºC	Connection Size	Specification
				d	L
WZP-52 WZP2-52	PT100	-200~500	M20*1.5	Φ3 Φ4 Φ5 Φ6 Φ8	245 270 295 345 395 445 545 645 745 899 1149
WZP-52A WZP2-52A			NPT1/2
WZP-53 WZP2-53			M20*1.5
WZP-53A WZP2-53A			NPT1/2
WZC-52 WZC-52A	Cu50 Cu100	-50~100	M20*1.5	Φ5 Φ6 Φ8
			NPT1/2
WZC-53 WZC-53A			M20*1.5
			NPT1/2

Type 53, 53A for water-proof type, protection class IP55;
Type 52, 52A for anti- spray type, protection class IP65;

Specification is only for reference if no special indication, and insert length of thermocouple shall be size U of protection tube.
PLS see P196 for more about protection tube.







After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
