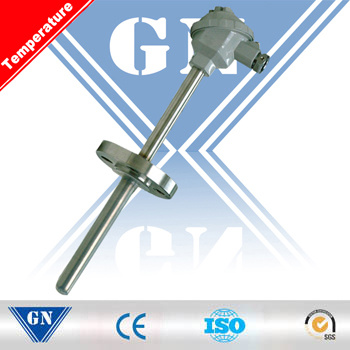

Thermal Resistance with Fixed Flange (CX-WZ)

Prod Model:	CX-WZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-500c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	PT100.Cu50,Cu100
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Thermal Resistance with Fixed Flange(CX-WZ)

Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to 500°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-500 centigrade .
5.Terminal blocks: terminals box


Selection table:

Type	Graduation	Measuring range ºC	Thermal Response Time	Specification
				d	L
WZP-420 WZP2-420	Pt100	-200~500	<90S	Φ16	300*50 350*00 400*50 450*00 500*50 550*00 650*00 900*50 1150*000 1650*500 2150*000
WZP-420G WZP2-420G			<24S
WZP-421 WZP2-421			<45S	Φ12
WZP-421G WZP2-421G			<24S
WZP-430 WZP2-401			<90S	Φ16
WZP-430G WZP2-430G			<24S
WZP-431 WZP2-431			<45S	Φ12
WZP-431G WZP2-431G			<24S
WZC-420G	Cu50 Cu100	-50~100	<120S	Φ16
WZC-420			<40S
WZC-430			<120S
WZC-430G			<40S
WZC-421			<120S	Φ12
WZC-421G			<40S
WZC-431			<120S
WZC-431G			<40S

1)  Type 420,421 for anti-spray type, protection class IP65;
Type 430,431 for water-proof type, protection class IP55;

Protection tube material is 1Cr18Ni9Ti, and we also produce the resistance with protection tube of other material.
Normal pressure < 2.5Mpa

Model type	flange specification
	D	D1	D2	H	D
WZP-420	Φ105	Φ75	Φ55	16	Φ16
WZP-420G	Φ105	Φ75	Φ55
WZP-421	Φ105	Φ75	Φ55	16	Φ12
WZP-421G	Φ105	Φ75	Φ55

After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
