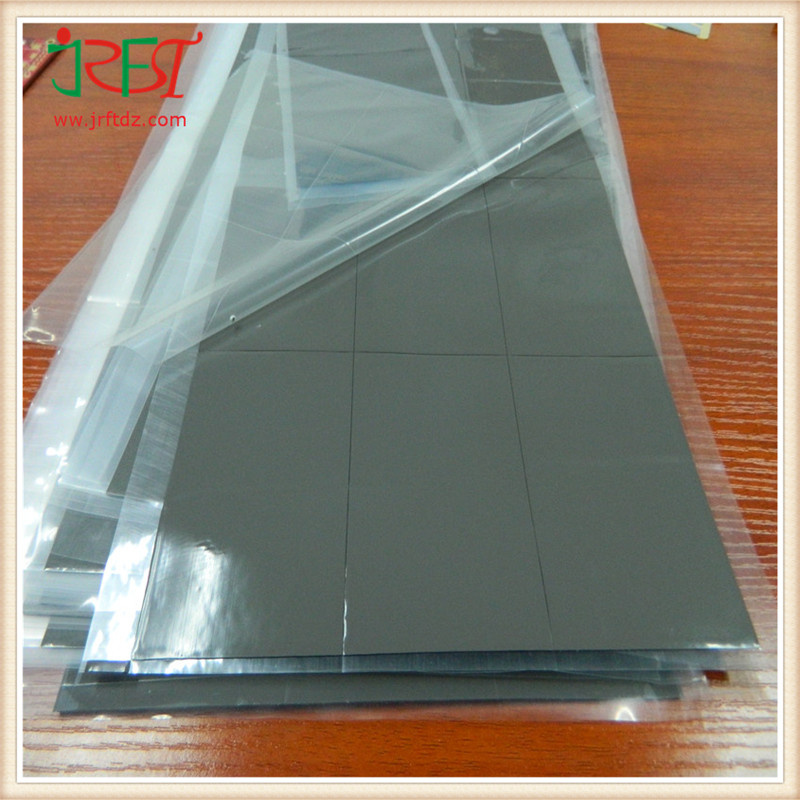

Thermal Silicone Insulation Pad for LED Lighting

Name: Thermal Silicone Insulation Pad for LED Lighting
Brand: all-electronics-online.com
SKU: 750296145
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

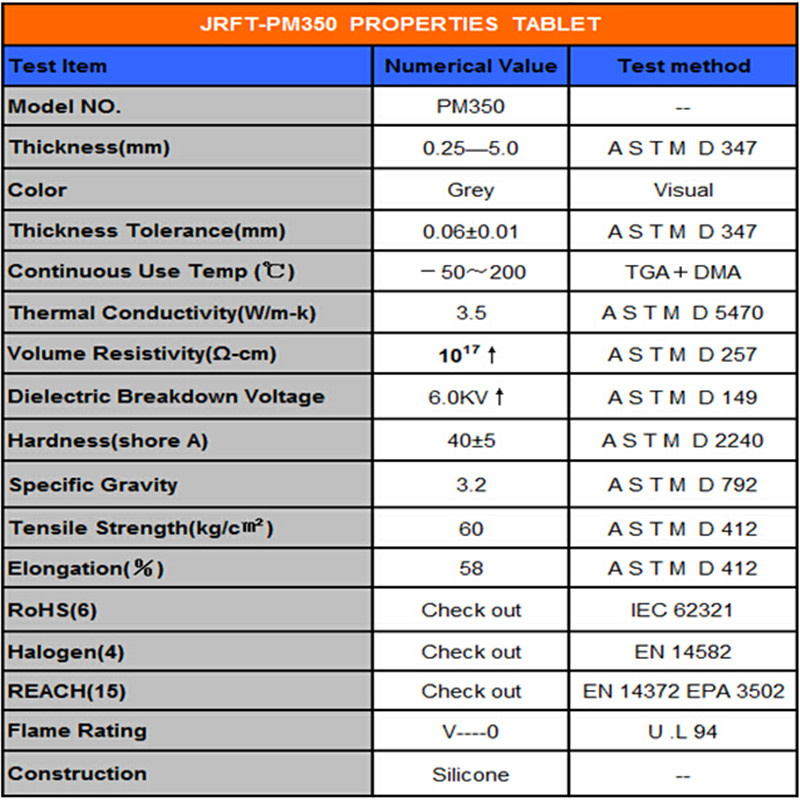

Prod Model:	PM350
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specific Gravity:	2
Hardness:	3.2 Shore a
Tensile Strength:	60 Kg/Cm2
Continuous Use Temp:	-50~200 Deg
Thickness:	0.25-5.0 Mm
Thickness Tolerance:	0.06+-0.01 Mm
Theraml Conductivity:	3.5 W/M.K
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Rubber
Thermal Rating:	200 200
Maximum Voltage:	<10KV
Brand:	Jrft
Application:	LED/PCB/Heat Sink
Color:	Grey , Blue

Product Description

PM350 high thermal silicone pad are widely used in situation of high demand for heat conduction and insulation. Using high thermal conductive properties, and the soft silicone fit closely characteristics make it exert the maximum thermal conductive property, effectively improving the performance of electronic products.

PM350 thermal silicone pad is placed between the heating device and the radiating power structure, make the power module heating effectively transfer to radiating component, cooling system.

Applications:
1.LED lighting, lighting equipment
2.Household appliances, LCD display
3. Between semiconductor and radiating fin
4.communication product, smart phone, tablet
5.Desktop, notebook and other portable computer
6.Large power supply etc.

Performance:
High thermal conductivity:3.5W/m-k
Stable performance, low thermal resistance, effectively improve the heat transfer speed
Low hardness, its viscosity high, easy to use
By UL and V-O certification standards

Specification:

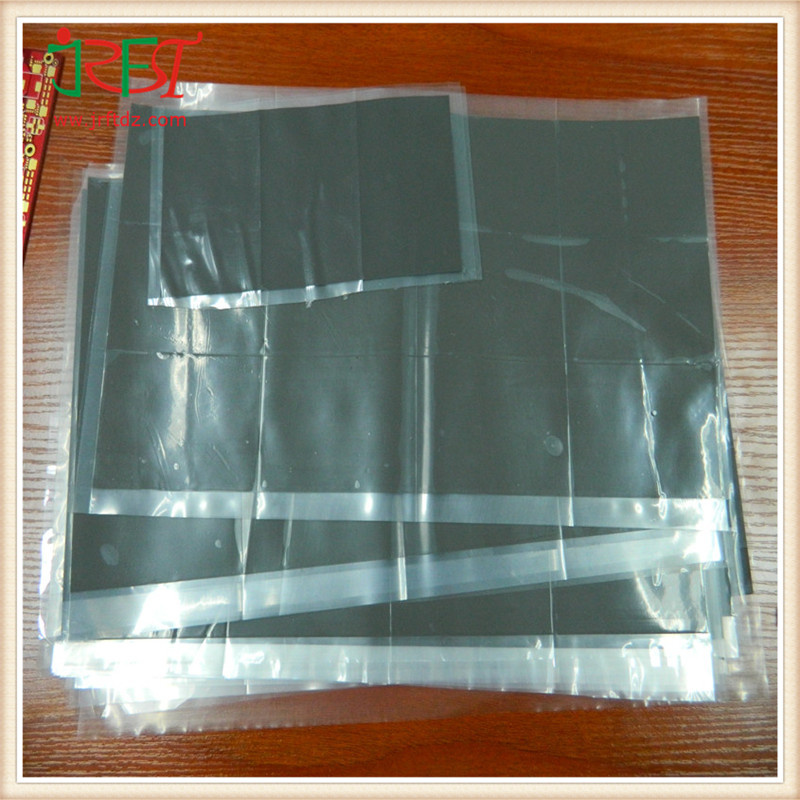

Standard size: 310mm*310mm, 200mm*400mm , can according customer's need to cut the shape
Basic thickness : 0.25mm*5.0mm, special size and thickness can be customized

Itself is slightly viscous, if need to strengthen the adhesive can be according customer's requirement

Product color is mass production color, if special color can be adjusted according to the actual situation.

Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.

Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.

Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.

High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
