Thermocouple or Thermal Resistance Temperature Transmitter

Name: Thermocouple or Thermal Resistance Temperature Transmitter
Brand: all-electronics-online.com
SKU: 816363855
Availability: InStock
Rating: 4.4 (91 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-WZ
Certification:	CMC

Product Description

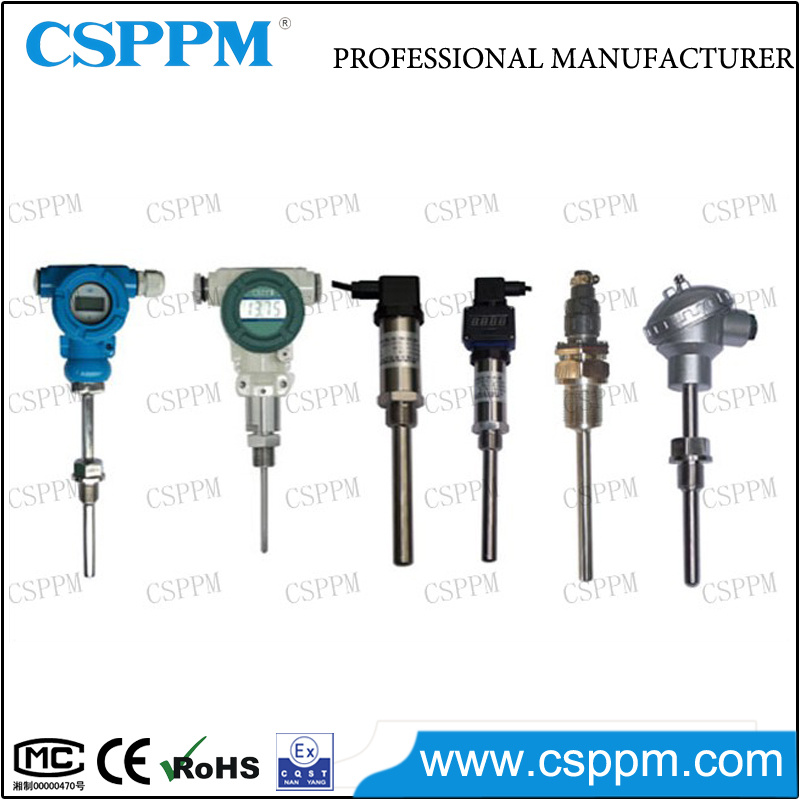

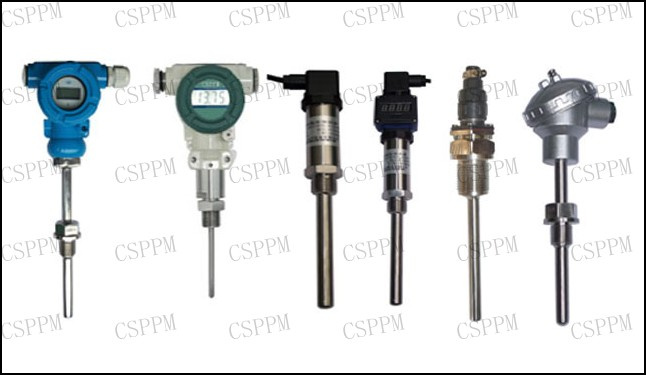

Thermocouple or Thermal Resistance Temperature Transmitter

Description
It is composed of a temperature sensor and a signal converter. The signal converter is installed in the cold end connecting box of the temperature sensor. The temperature sensor is affected by the temperature to produce a differential voltage signal. This signal is amplified by the amplifier, and then through the voltage and current conversion, then produce a 4-20mA current signal or other 0-5V signal.

Features
They can measure temperatures of liquid, steam,gas and solid in producing.
Characteristics are shock resistant, high-temperature resistant and long life.
Used for temperature measuring and automatic controlling in scope from -200 to 1600ºC.

Specification

Model	Thermocouple PPM-WR series, thermal resistor PPM-WZ series
Measure Range	-200 to 1600ºC
Power Supply	12-32VDC
Output Signal	4-20mA, 0-5VDC, 0-10VDC optional
Precision	0.1%,0.2%,0.5%, optional
Display Method	LCD or LED display
Operation temperature	-40 to 85ºC
Environment Temperature Effect	0.25%/10ºC
thermometric element	Pt100,CU50,S,B,R.E,K,J,T optional
Protective tube diameter	Φ4, Φ16, Φ18, Φ20, Φ22, Φ28, Φ35, Φ40 Alternative
connecting	without fixing device,fixed screw-thread,movable screw thread,movable flange, fixed flange GB/ANSI standard, optional
Insert length	50\100\150\200\300\400\500\750\100 or others requested
Protective tube material	iCr18Ni9Ti, ceramics, High alumina or corundum tube
Nominal pressure	<=20MPa,<=10MPa,<=4.0MPa,<=2.5MPa,
Connecting box material	Cast aluminum alloy,stainless steel, blast proof connection box
Protective level	IP65
Response Time	90s-180s,30s-90s,10s-30s,4.2s,2.4s,1.3s, optional
Environment Humidity	95%RH, Non-condensing

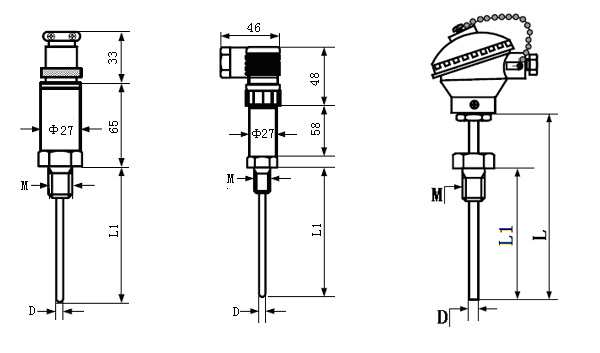

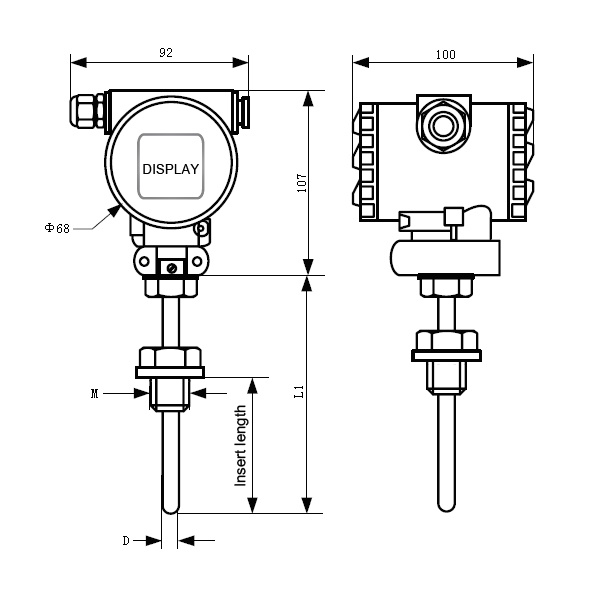

Dimensions in mm

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
