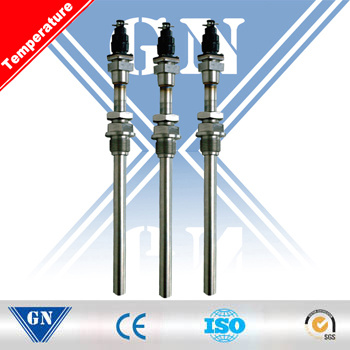

Thermocouple Resistance with Socket-Shaped Joint (CX-WZ)

Prod Model:	CX-WZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-300c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	E
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Thermocouple resistance with socket-shaped joint(CX-WZ)


Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from 0  to 250C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: 0-250C centigrade .
5.Terminal blocks: terminals box


Application
The thermal resistance is convenient to be installed for its socket-like joint. It is used to measure temperature of liquid, gas or solid surface ranging from -200C to 450C.

Main technical parameter

Accuracy class: A, B
Protection class: IP65
Nominal pressure: normal pressure

Type and specification

Type	Graduation	Temperature rangeºC	Thermal response time	Protection tube material	specification
WZP-260	Pt100	0-100	< 30S	1Cr18Ni9Ti	100 150 200 250 300
WZP 2 -260			< 45S
WZP-267M	Pt100	-50-+150	< 30S
WZP-269	Pt100	-200-+300	< 30S		75 100 150 200 250
WZP 2 -269			< 45S
WZC-269	Cu50	-50-+100	< 120S
WZP-270	Pt100	-200-+420	< 15S		50 75 100 150 200
WZC-270	Cu50	-50-+150	< 45S
WZP-280	Pt100	-200-+300	< 30S

After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
