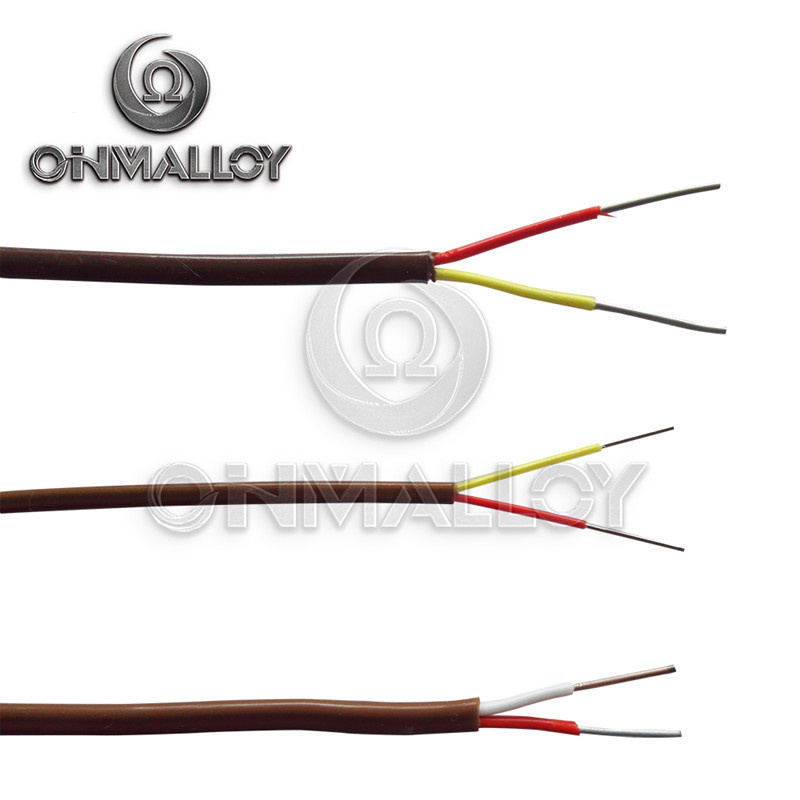

Thermocouple Wire Type K 0.511mm Double Insulated for Pwht

Prod Model:	K-HP-1226
Color:	Conforms to ANSI, IEC, JIS
Type:	Insulated
Conductor Type:	Stranded
Certification:	ANSI
Application:	Thermocouple Wires
Conductor Material:	Chromel/Alumel
Sheath Material:	PVC/FEP/PFA/ Fiberglass/Vitreous Silica
Insulation Material:	FEP, PFA,Teflon
Range Of Application:	Machinery,Thermocouple,Electricity
Brand:	Ohmalloy

Product Description

Thermocouple wire type K 0.511mm double insulated for PWHT


Item No.	K-FP-FP-0.81
Conductor Material	+Chromel, -Alumel
Conductor Dia	0.81mmX2
Insulation material	FEP
Insulation color	+ yellow, -red
Cable Construction	Parallel
Inner Shielding material	/
Jacket material	FEP
Jacket color	Brown
Outer Shielding Material	/
Insulated DIA	1.0mm
Cable DIA	1.4mm*2.8mm
Cable Dielectric Test	DC.500v
Net weight	16kg/km

1. style:Extension Wire
2. thermocouple copper wire
thermocouple copper wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Thermocouple variety and index

Thermocouple Variety and Index
Variety	Type	Measurement Range(°C)
NiCr-NiSi	K	-200-1300
NiCr-CuNi	E	-200-900
Fe-CuNi	J	-40-750
Cu-CuNi	T	-200-350
NiCrSi-NiSi	N	-200-1300
NiCr-AuFe0.07	NiCr-AuFe0.07	-270-0

FAQ:

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.

2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
