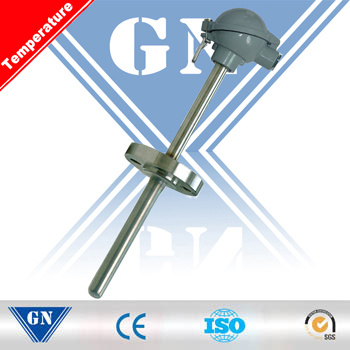

Thermocouple with Fixed Flange (CX-WR)

Prod Model:	CX-WR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-1800c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex

Product Description

Thermocouple with Fixed Flange


Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from 0 to 1300°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: 0-1800 centigrade .
5.Terminal blocks: terminals box

Selection table:

Type	Graduation	Measuring Range	Thermal Response Time	Protection Tube Material	Specification
					d	L
WRM-420 WRM2-420	N	0-800	<90S	1Cr18Ni9Ti	Φ16	300*150 350*200 400*250 450*300 500*350 550*400 650*500 900*750 1150*1000 1650*1500 2150*2000
		0-1000		0Cr25Ni20
WRM-420G WRM2-420G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-420 WRN2-420	K	0-800	<90S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-420G WRN2-420G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-420 WRE2-420	E	0-800C	<90S	1Cr18Ni9Ti
WRE-420G WRE2-420G			<24s
WRC-420 WRC2-420	T	0-350	<90s	1Cr18Ni9Ti
WRC-420G WRC2-420G			<24s
WRF-420 WRF2-420	J	0-600	<90s	1Cr18Ni9Ti
WRF-420G WRF2-420G			<24s
WRM-421 WRM2-421	N	0-800	<20s	1Cr18Ni9Ti	Φ20
		0-1000		0Cr25Ni20
WRM-421G WRM2-421G		0-800	<24s	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-421 WRN2-421	K	0-800	<120S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-421G WRN2-421G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-421 WRE2-421	E	0-800C	<120S	1Cr18Ni9Ti
WRE-421G WRE2-421G			<24S
WRC-421 WRC2-421	T	0-350	<120S	1Cr18Ni9Ti
WRC-421G WRC2-421G			<24S
WRF-421 WRF2-421	J	0-600	<120S	1Cr18Ni9Ti
WRF-421G WRF2-421G			<24S

Type 420,421 for anti-spray type, protection class IP65;
We also produce the thermocouple with protection tube of other material.
Normal pressure is 2.5Mpa.

Model type	flange specification
	D	D1	D2	H	D
WRN-420	Φ105	Φ75	Φ55	16	Φ16
WRN-420G	Φ105	Φ75	Φ55
WRN-421	Φ115	Φ85	Φ65	16	Φ20
WRN-421G	Φ115	Φ85	Φ65

Type	Graduation	measuring range	thermal response time	protection tube material	specification
					d	L
WRM-430 WRM2-430	N	0-800	<90S	1Cr18Ni9Ti	Φ16	300*150 350*200 400*250 450*300 500*350 550*400 650*500 900*750 1150*1000 1650*1500 2150*2000
		0-1000		0Cr25Ni20
WRM-430G WRM2-430G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-430 WRN2-430	K	0-800	<90S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-430G WRN2-430G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-430 WRE2-430	E	0-800C	<90S	1Cr18Ni9Ti
WRE-430G WRE2-430G			<24s
WRC-430 WRC2-430	T	0-350	<90s	1Cr18Ni9Ti
WRC-430G WRC2-430G			<24s
WRF-430 WRF2-430	J	0-600	<90s	1Cr18Ni9Ti
WRF-430G WRF2-430G			<24s
WRM-431 WRM2-431	N	0-800	<20s	1Cr18Ni9Ti	Φ20
		0-1000		0Cr25Ni20
WRM-431G WRM2-431G		0-800	<24s	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-431 WRN2-431	K	0-800	<120S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRN-431G WRN2-431G		0-800	<24S	1Cr18Ni9Ti
		0-1000		0Cr25Ni20
WRE-431 WRE2-431	E	0-800C	<120S	1Cr18Ni9Ti
WRE-431G WRE2-431G			<24S
WRC-431 WRC2-431	T	0-350	<120S	1Cr18Ni9Ti
WRC-431G WRC2-431G			<24S
WRF-431 WRF2-431	J	0-600	<120S	1Cr18Ni9Ti
WRF-431G WRF2-431G			<24S

Type 430,431 for water-proof type, protection class IP55;
We also produce the thermocouple with protection tube of other material.
Normal pressure is 2.5Mpa.

Model type	flange specification
	D	D1	D2	H	D
WRN-430	Φ105	Φ75	Φ55	16	Φ16
WRN-430G	Φ105	Φ75	Φ55
WRN-431	Φ115	Φ85	Φ65	16	Φ20
WRN-431G	Φ115	Φ85	Φ65

Diagram:
It can be suctomized according to your requirements.


After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.
